Wax Melter ApiNord – Plastic Box DN/Zander – with Dampfmeister Pro Steam Generator
Do you want to obtain clean and high-quality beeswax from frames without lengthy boiling and unnecessary mess? The ApiNord® melting box is a practical yet professional solution that combines a frame transport box with a powerful steam generator. Steam reliably melts the wax and you get ready raw material for further processing with minimal work.
Why Choose This Melting Box
The system is designed for regular operation for hobby beekeepers as well as in larger apiaries. The greatest advantage is time and energy savings: frames don't need to be laboriously cut or boiled in pots. Steam melting gently releases wax even from whole frames while promoting their hygiene. The result is simple wax recycling and frames ready for further work.
Main Features and Benefits
1. High Efficiency and Practical Capacity

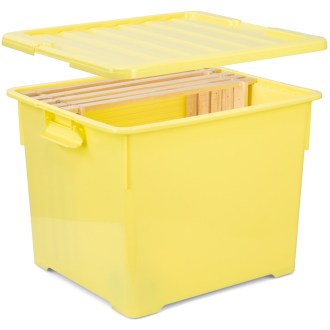

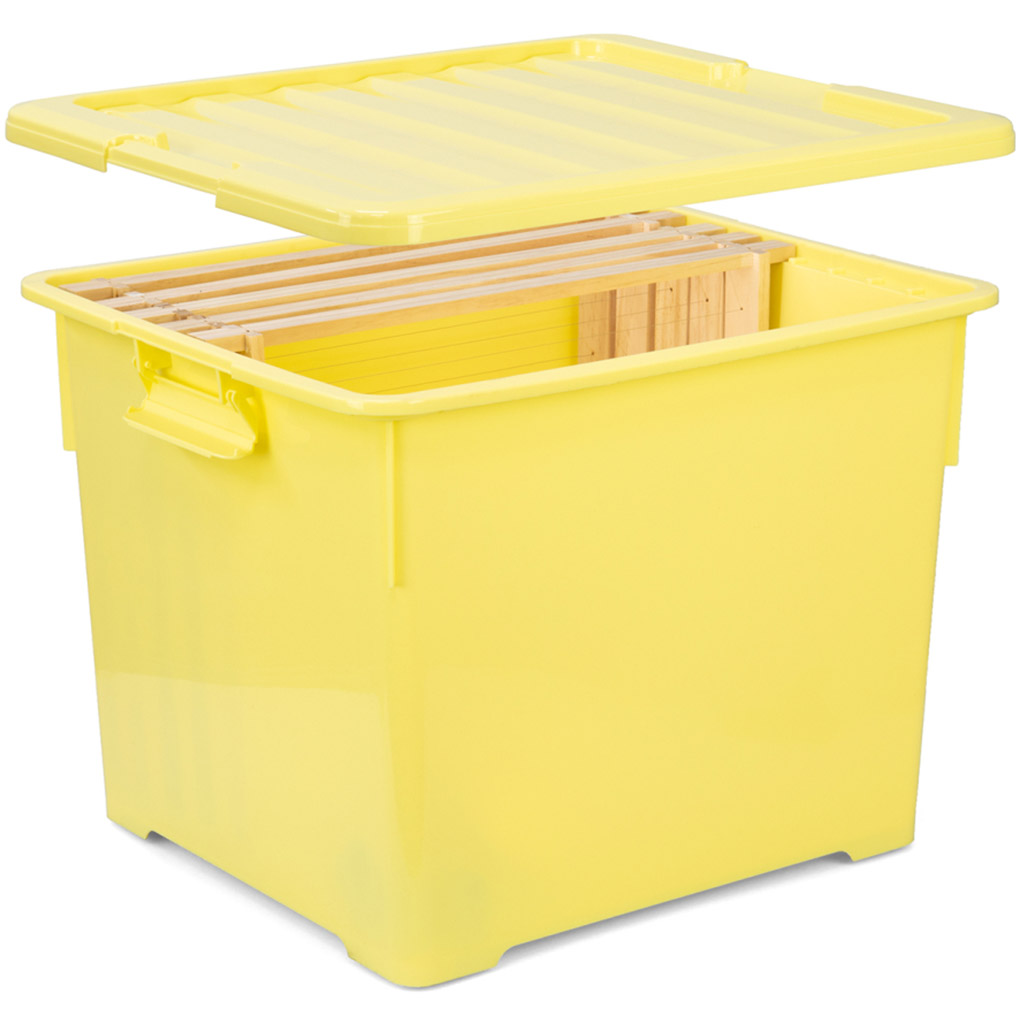

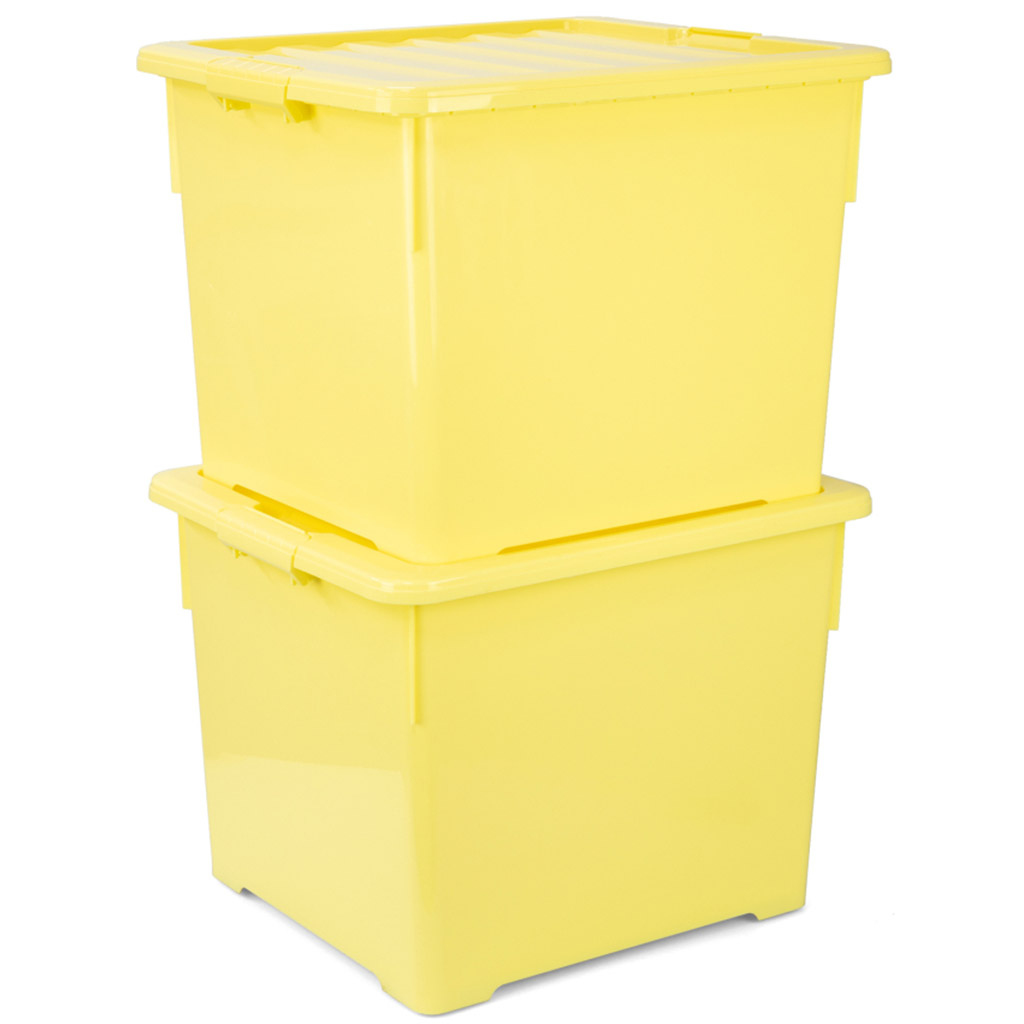

The ApiNord® Transporter box is adapted to standard frame sizes. It holds up to 10 German standard frames (DN) or 9 Zander frames (regardless of height). Thanks to wheels and side handles, the box is easy to handle even when fully loaded. The stacking option is also appreciated, making storage easier.

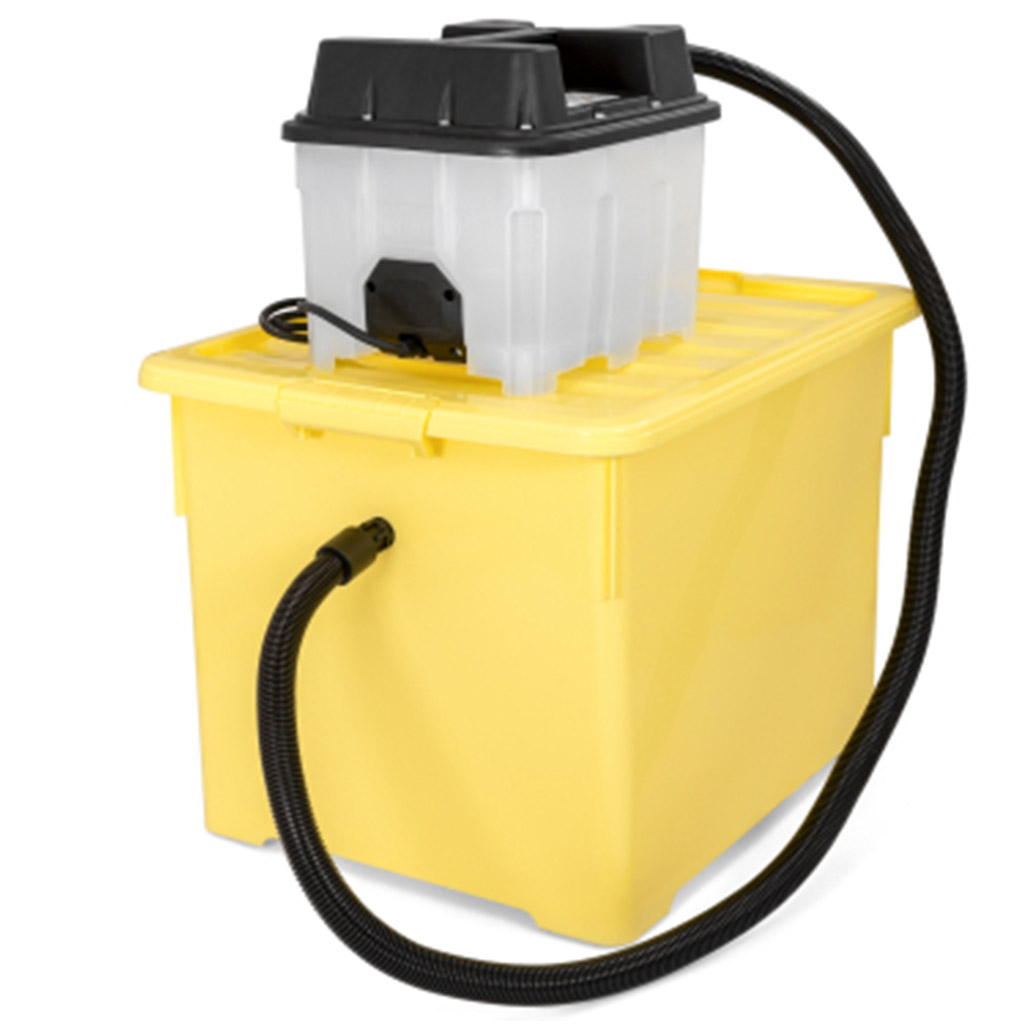

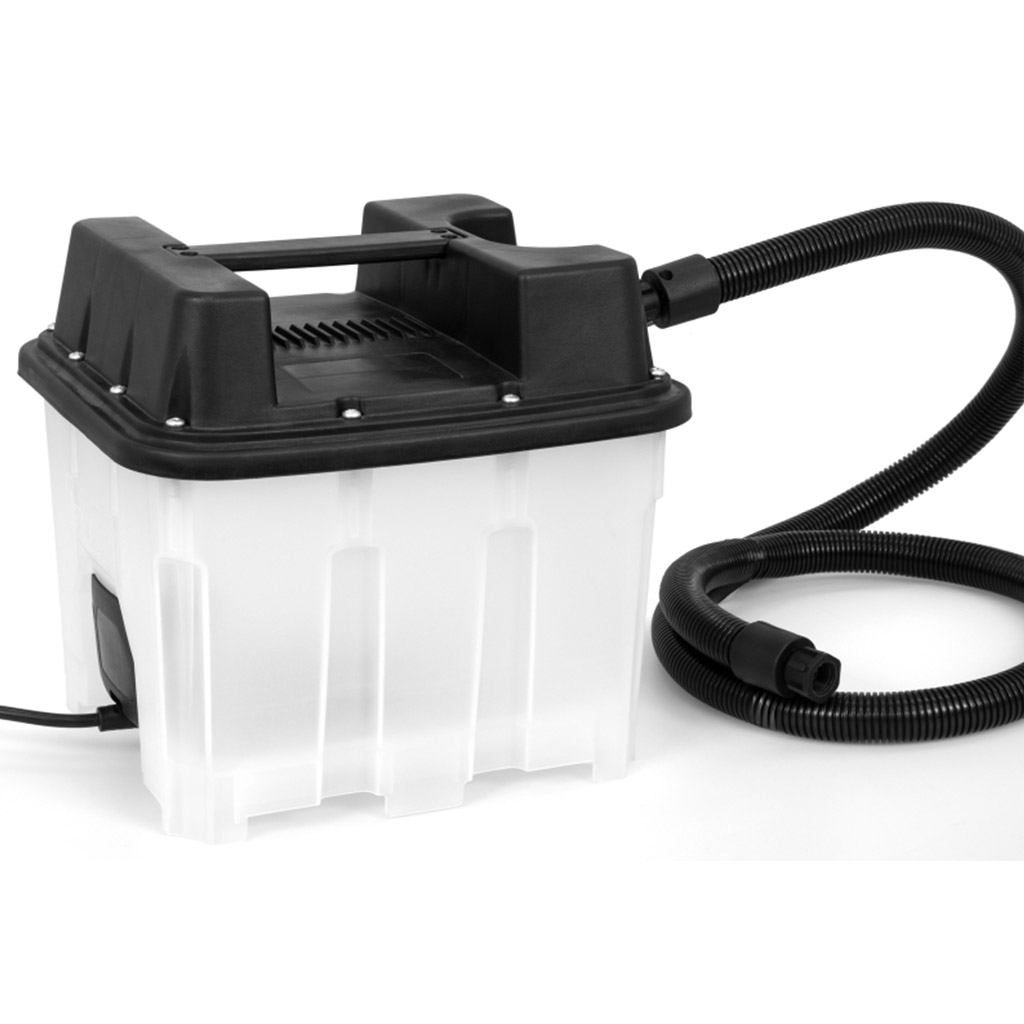

2. Dampfmeister Pro Steam Generator for Fast Work
The set includes a proven steam generator with a 7-liter water tank and power output up to 2.3 kW. In practice, this means:
- rapid heating and steam production without unnecessary waiting,
- long operation up to approximately 120 minutes per filling,
- safer use thanks to overheat protection and pressure relief valve.
3. Clean Results and Durable Construction
The melting box is made of heat-resistant food-grade plastic. Melted wax drains through the bottom opening directly into a prepared container, making the work clean and organized. You get beautifully yellow wax with minimal impurities.
Technical Specifications
| Parameter | Value |
| Product Name | ApiNord® wax melting box DN/ZA |
| Device Type | Steam wax melter / combination melter and transport box |
| Box Capacity | 10 DN frames or 9 Zander frames |
| Internal Box Dimensions (L × W × H) | approx. 47.5 × 39.6 × 34.5 cm |
| Steam Generator Dimensions (L × W × H) | approx. 29 × 25 × 26 cm |
| Set Weight | approx. 4.2 kg |
| Generator Power Supply | 220–240 V (standard outlet) |
| Generator Power Output | 1.9–2.3 kW |
| Water Tank Volume | 7 liters (up to approx. 120 min operation) |
| Material | Heat-resistant food-grade plastic |
| Hose Connection | M16 thread |
Safety Warning
Working with steam requires increased caution. For safe use and long service life of the equipment, follow these rules:
- Use heat-resistant gloves – risk of scalding from hot steam and hot parts of the equipment.
- Never let the steam generator run without water.
- Disconnect from power before refilling water and allow to cool. Do not open the pressure valve during operation.
- Place the device on a stable, level and non-flammable surface.
- Before first use, carefully study the operating manual.
