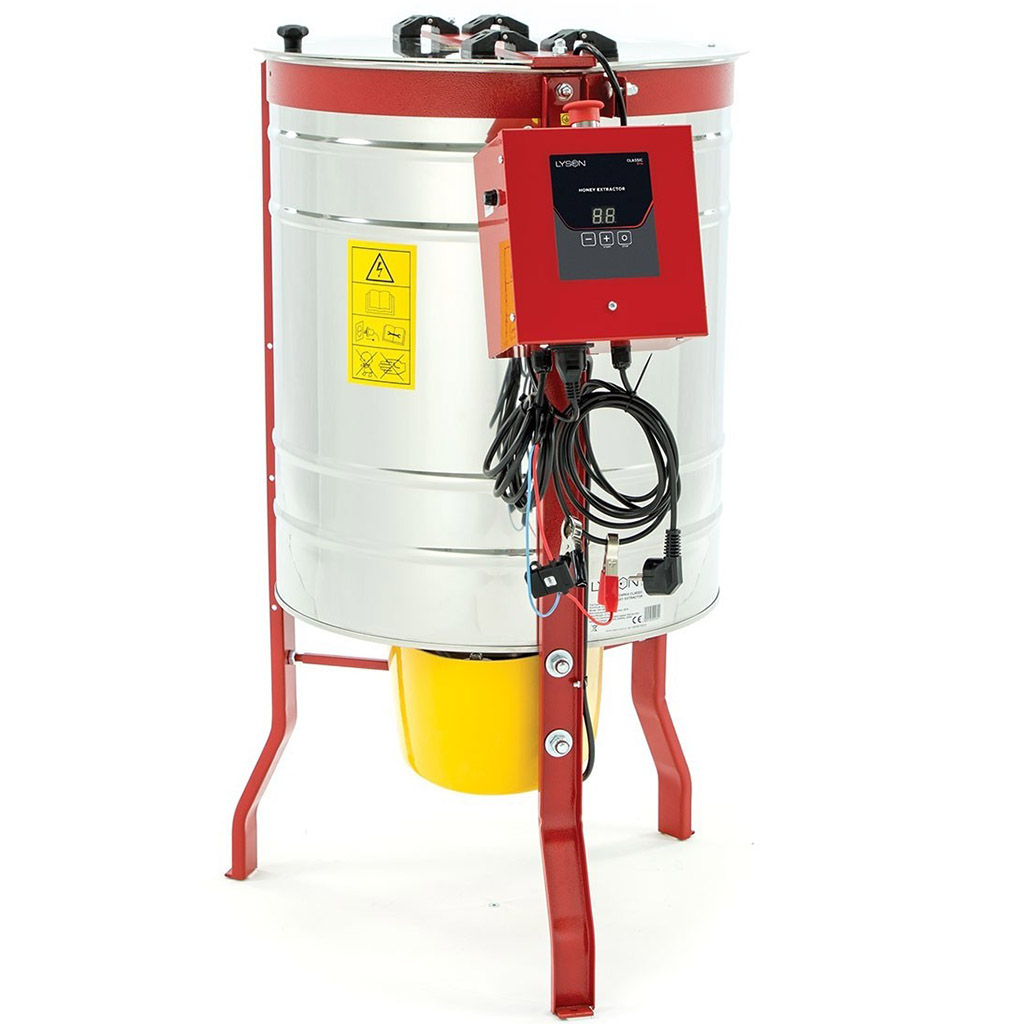

Tangential honey extractor,Ø500mm, 3-frame, electric drive, CLASSIC

Tangential honey extractor,Ø500mm, 3-frame, electric drive, CLASSIC

A honey extractor with a small drum diameter that holds 3 frames inside the basket, characterized by the versatility of being able to spin virtually all types of frames.
A characteristic feature of the Diagonal extractor is the need to turn the frames.
They are intended primarily for beekeepers with smaller apiaries, and whose studios are equipped with access to electricity.

Drum with a diameter of 500 mm made of acid-proof stainless steel 0H18N9. The bottom of the cone shaped honeycomb drum, respectively reinforced and stiffened.

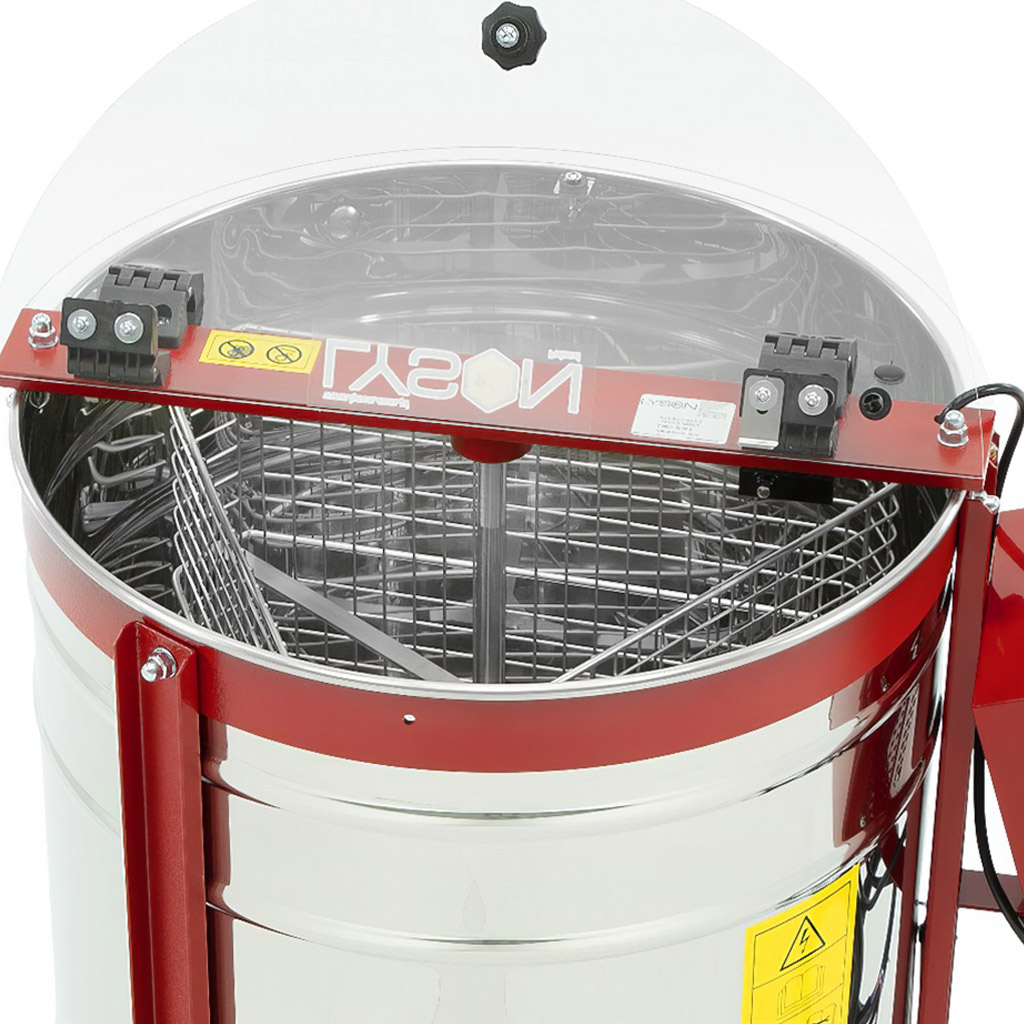

Basket of honey extractors made of stainless, acid-resistant rods, arranged in a way that protects the frames against breakage of the slices during centrifugation. The size of the mesh 20 x 20 mm.

Electric drive mounted from the bottom. Engine: 250W / 24V.

The controller is powered by 12V DC or 230V AC.

Valve Stainless steel flanged valve Ø 6/4.

Lock preventing the honey extractor from opening during operation.

Transparent cover, made of meta-plexus, giving the opportunity to observe the spin process without opening the honey extractor and risking contact with the rotating basket.

Beam and legs powder coated which increases the resistance of the coating.

As standard, we add special pads to the honey extractors to increase the comfort and safety of bee-keeping. Thanks to them, the vibrations of the honey extractors during honey spin are minimized.

The pads are made of PVC (SOFT) material. Very often spinning frames of different weights due to the different amounts of honey they contain. By using LYSON pads you ensure the highest quality of device optimization.
