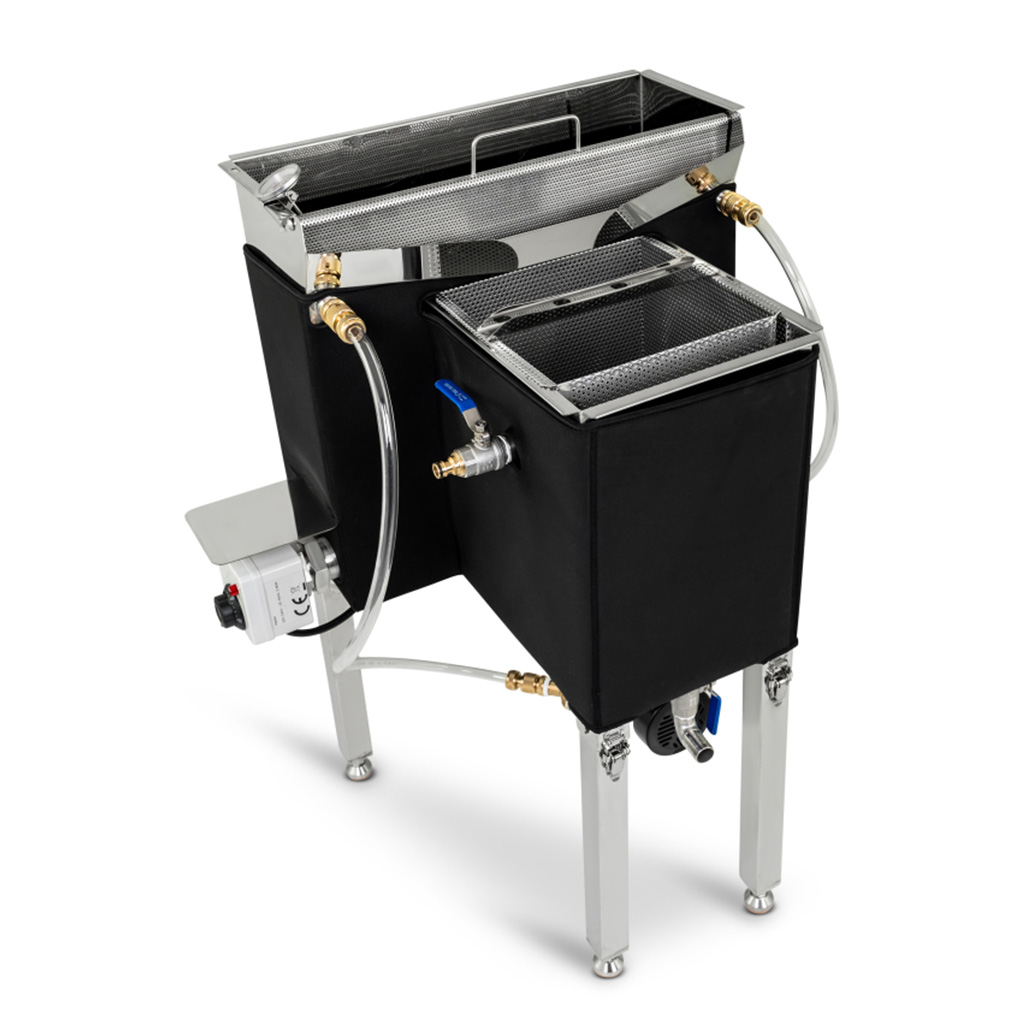

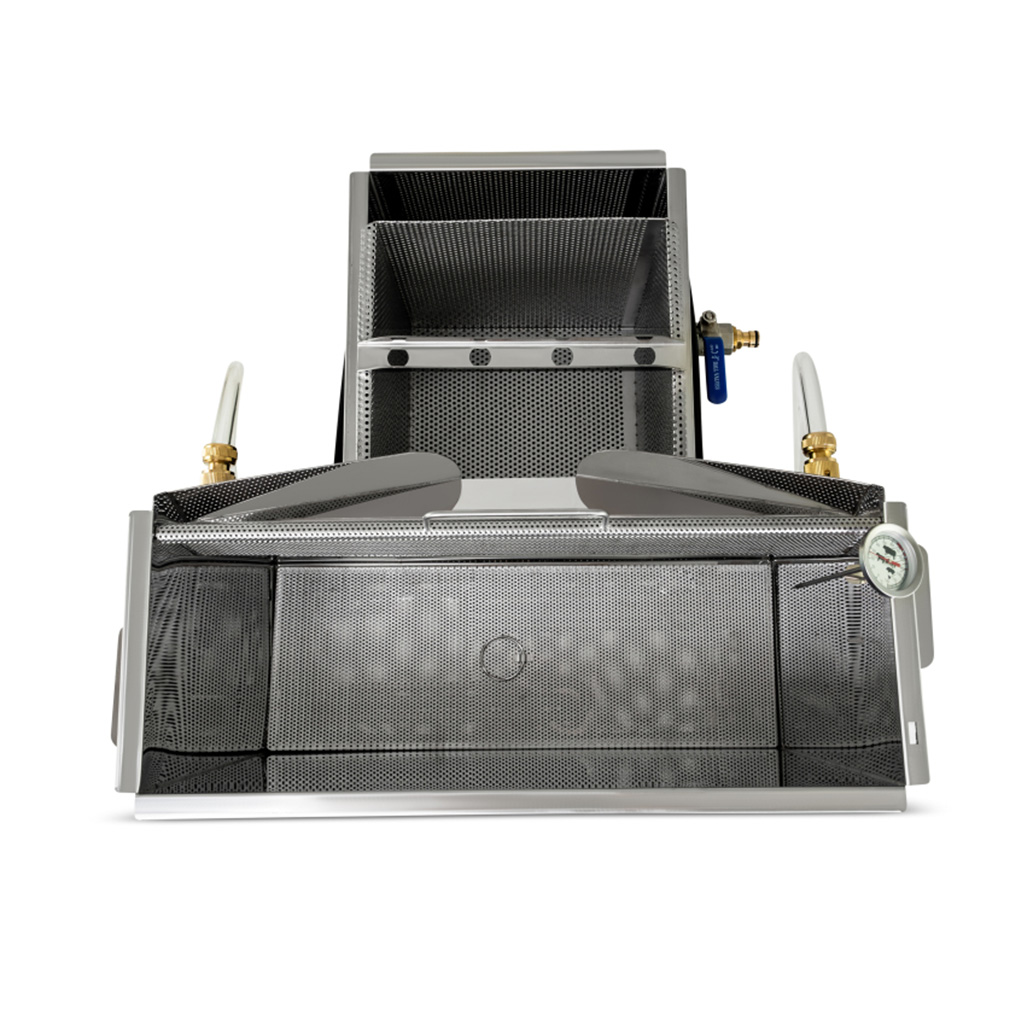

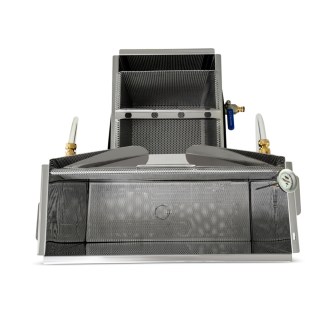

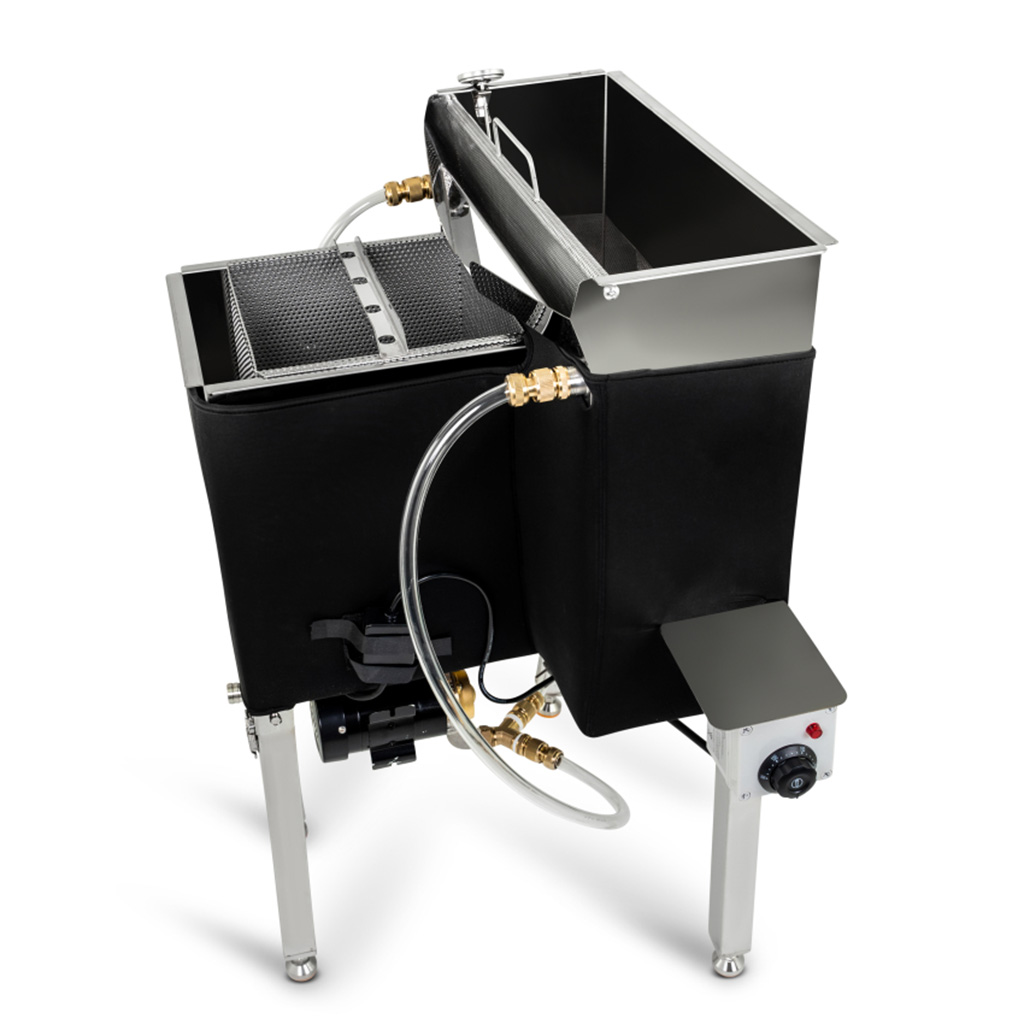

RuBee® Wax Melter with Separator and Frame Cleaner 2-in-1

Discover the versatile device for efficient beeswax processing and frame cleaning – the RuBee® wax melter with separator and frame cleaner. This modern appliance was created based on the innovative concept of beekeeper and technical enthusiast Ralf Kolbe and fully meets the demands of both professional and hobby beekeepers.

Developed for modern beekeeping practice

The goal in developing this device was to maximize ease and efficiency in the wax melting process and frame cleaning. The result is a multifunctional melter that allows you to handle both activities quickly, safely, and with minimal effort. The construction and technologies used are adapted to the needs of both small and larger beekeeping operations.

Key Features and Technical Parameters

Powerful Heating Elements

• Two independent heating elements with 2 × 3000 W power ensure fast and uniform wax melting.

• Heating elements are removable for easy cleaning and maintenance.

• Each requires its own 230 V power outlet and appropriate fusing.

Pump with Protection

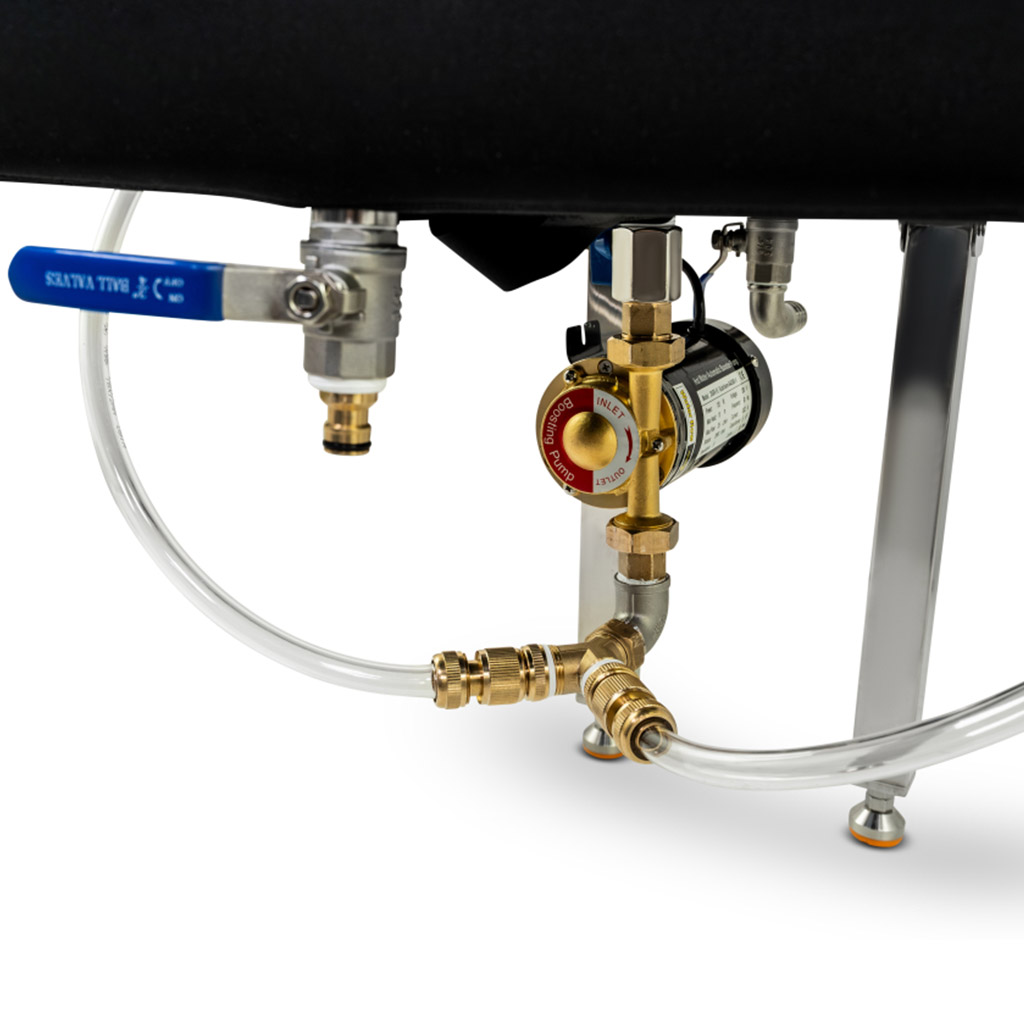

• Powerful pump (120 W) helps with efficient water distribution during melting and cleaning.

• Never operate the pump dry, otherwise warranty is voided.

Efficient Insulation

Flexible Construction

Easy Handling

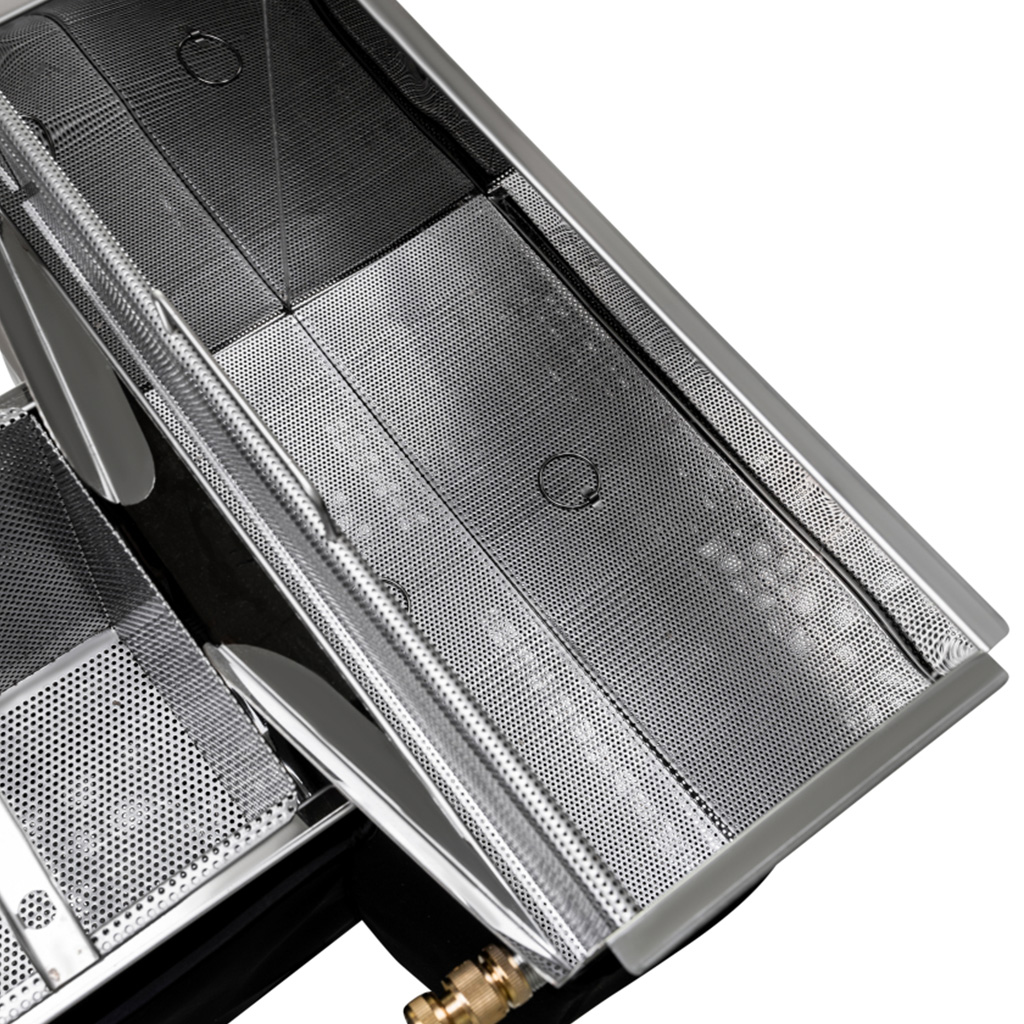

• Includes a basket for cappings (wax residues) that facilitates loading and unloading of raw material.

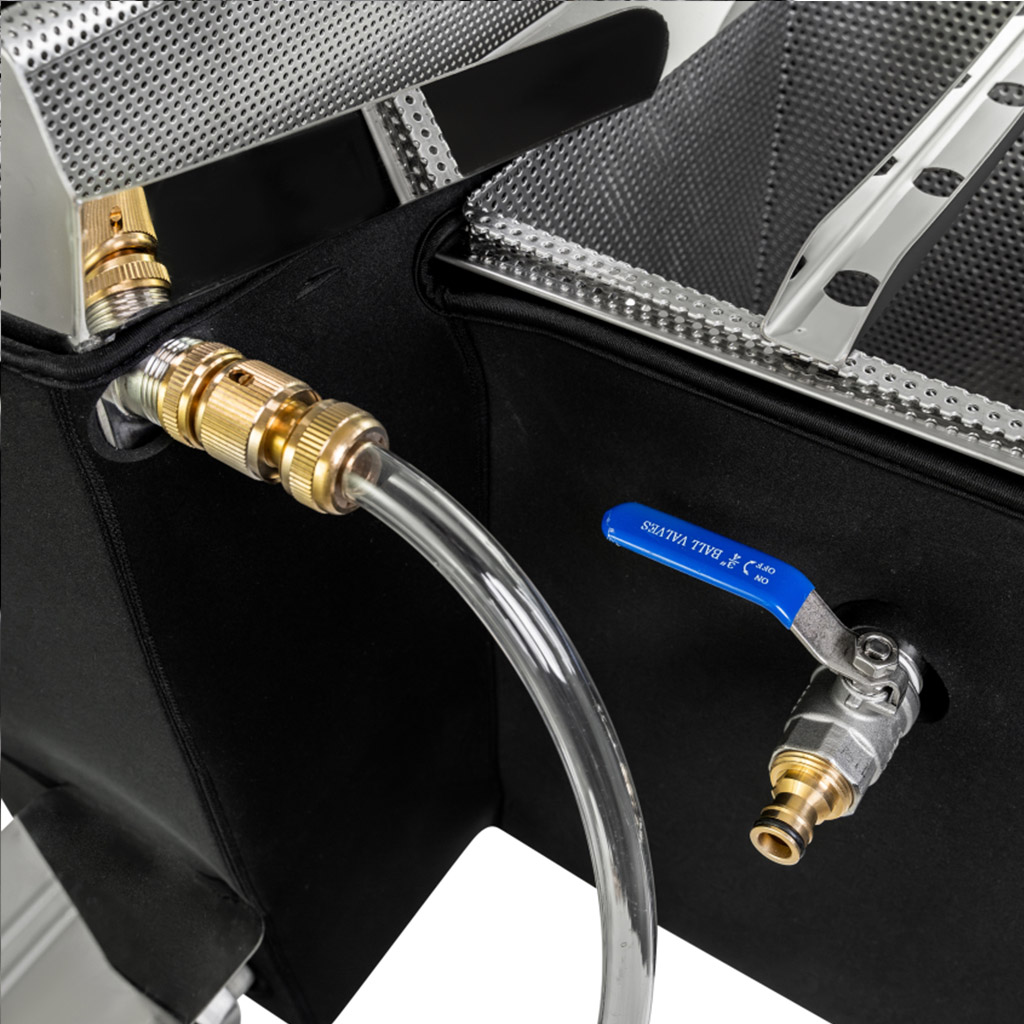

• Hose system with quick couplings allows for fast and safe operation of the device.

Quality Valves and Thermostat

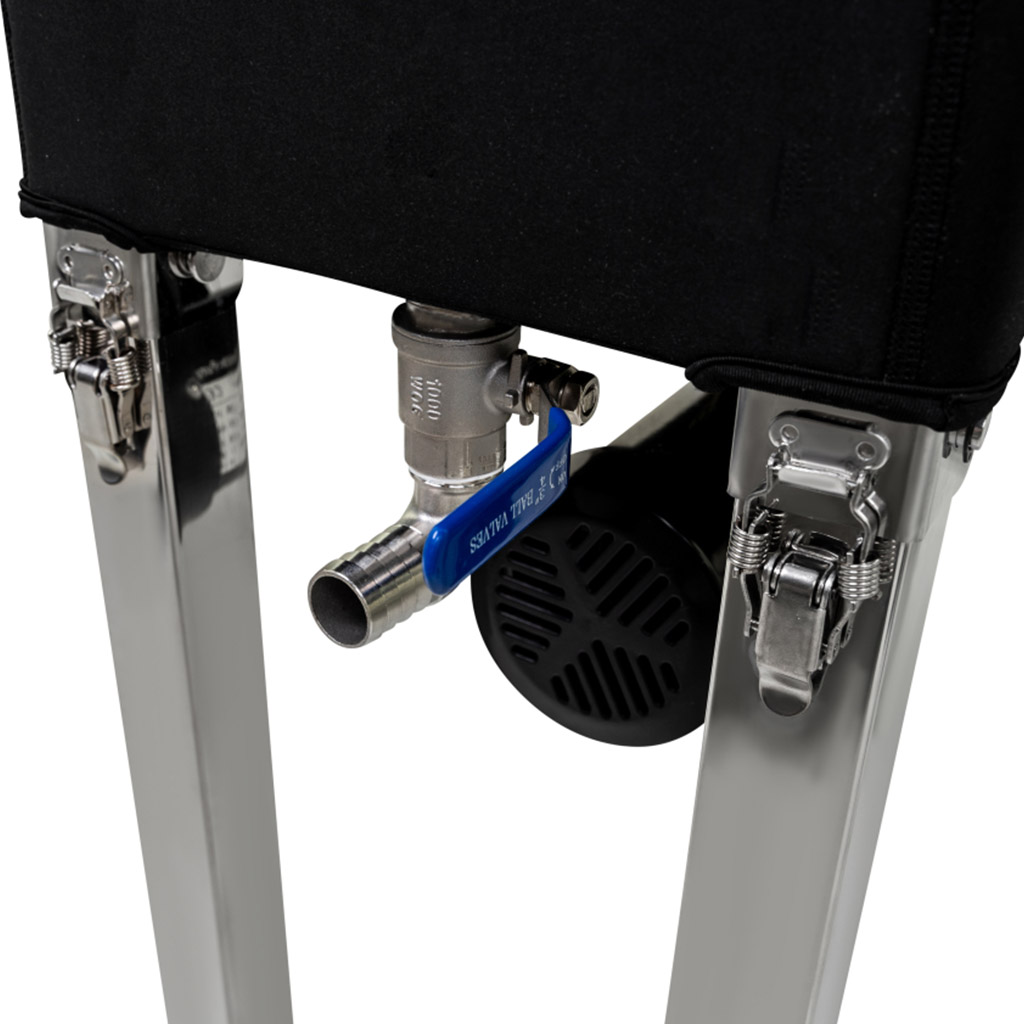

• Five stainless steel ball valves (3/4") for easy regulation and handling.

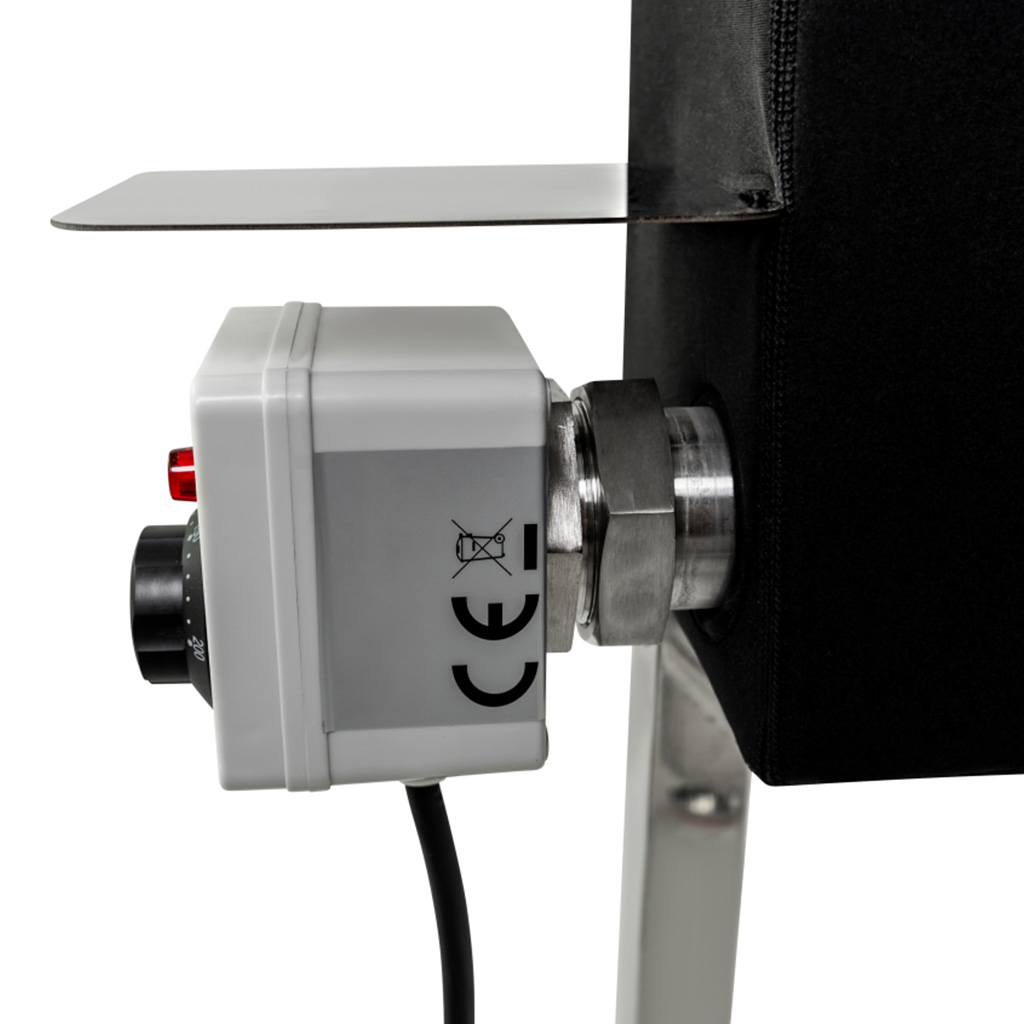

• Built-in thermostat allows precise setting of the desired process temperature.

Device Dimensions

53 x 87 x 95 cm

Weight 38 kg

Safety and Proper Use

• The device is intended for indoor use only and must not be operated or stored at temperatures below 0 °C.

• Always follow the included operating manual and all applicable safety regulations.

• Electrical connection:

  • These devices have high power consumption (approx. 3.5 kW).

  • Do not install in regular household outlets or regular extension cords.

  • For safe operation we recommend:

    • 400 V / 16 A CEE industrial outlet (three-phase current), or

    • Two separately fused 230 V / 16 A outlets

  • In case of doubt, consult the connection with a qualified electrician! Improper connection can lead to damage, overload, or fire risk.

• Do not disassemble or modify any parts of the device – any unauthorized modification means loss of warranty and may cause injury or property damage!

• Pay attention to health protection:

  • Wear protective gloves during operation.

  • Avoid contact with hot surfaces – risk of burns!

  • Never touch moving parts during operation.

  • Keep electrical components dry and watch for cable damage.

  • Never open the motor or electrical parts of the device!

Advantages of the RuBee® Wax Melter

• Unmatched efficiency in wax melting and thorough frame cleaning in one device.

• Energy-efficient and safe operation.

• Top-quality materials and workmanship for long service life in demanding operations.

• Easy operation, maintenance, and handling.

• Product by Bienen Ruck GmbH – a proven European manufacturer of beekeeping equipment.

The RuBee® wax melter with separator and frame cleaner in one is the ideal choice for every beekeeper who emphasizes quality, safety, and comfort when processing bee products. Remember: proper use and adherence to all safety recommendations will maximize the device's lifespan and give you optimal results when working with wax and frames.
