Tangential Honey Extractor Mellarius OptiLine for 2 Frames – A Reliable Helper for Honey Extraction

Are you looking for a practical honey extractor that makes honey harvesting easier while being gentle on your combs? The tangential honey extractor Mellarius OptiLine for two frames with manual drive is an excellent choice for beekeepers seeking a reliable, durable, and easy-to-operate device. The basket measuring 33 × 48 cm is compatible with most common frame sizes. The extractor is made from polished food-grade stainless steel sheets, helping to maintain cleanliness and the natural quality of honey during extraction. Thanks to its well-thought-out design, simple maintenance, and safe operation, it will become a useful piece of equipment for any small-scale or hobby beekeeping operation.

About Mellarius OptiLine Honey Extractors

Mellarius OptiLine honey extractors represent solidly crafted equipment with an excellent price-to-quality-to-value ratio. The OptiLine range is manufactured from thicker stainless steel sheets with a thickness of 0.8 to 1 mm, providing the extractors with the necessary strength, stability, and long service life. The Mellarius brand offers both manual and electric models in tangential and radial configurations, so both beginner beekeepers and more experienced apiarists can find a suitable honey extractor.

Well-Designed Construction for Hygiene and Comb Protection

Mellarius OptiLine honey extractors are designed with an emphasis on practical use, easy cleaning, and space saving. The legs can be quickly removed, which is especially appreciated during off-season storage. The extractor drum is made from high-quality food-grade stainless steel. The sufficient material thickness of 0.8 to 1 mm helps prevent denting and increases the overall durability of the device. Plasma welding and smooth surfaces make washing after honey extraction easier and contribute to a high level of operational hygiene.

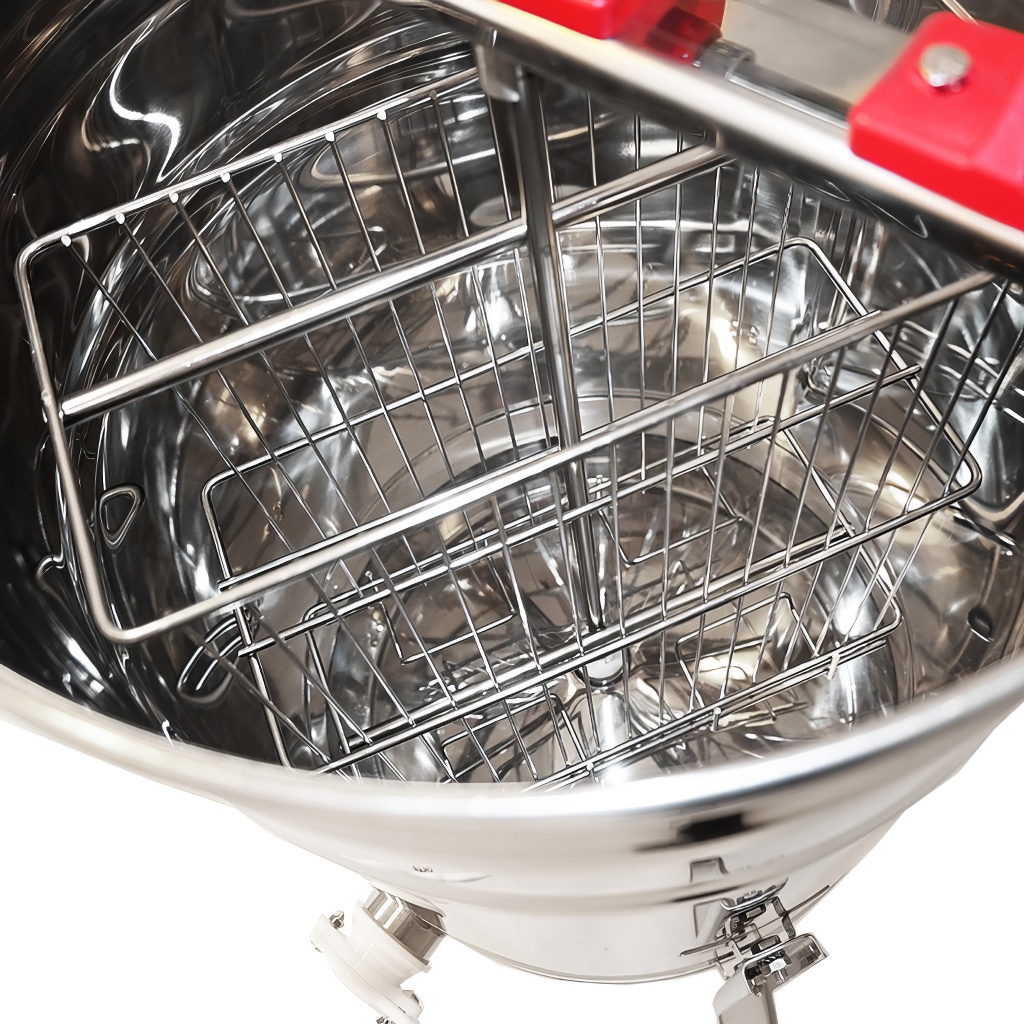

The extractor basket is designed to be as gentle on the combs as possible. A denser mesh of sturdy stainless steel wires distributes the pressure during extraction over a larger area, reducing wire cutting into the beeswax comb. The load-bearing parts of the basket are made from round bars with high resistance to twisting. Rounded profiles without sharp edges protect the combs from damage and are also very easy to clean.

Simple Disassembly for Quick Cleaning

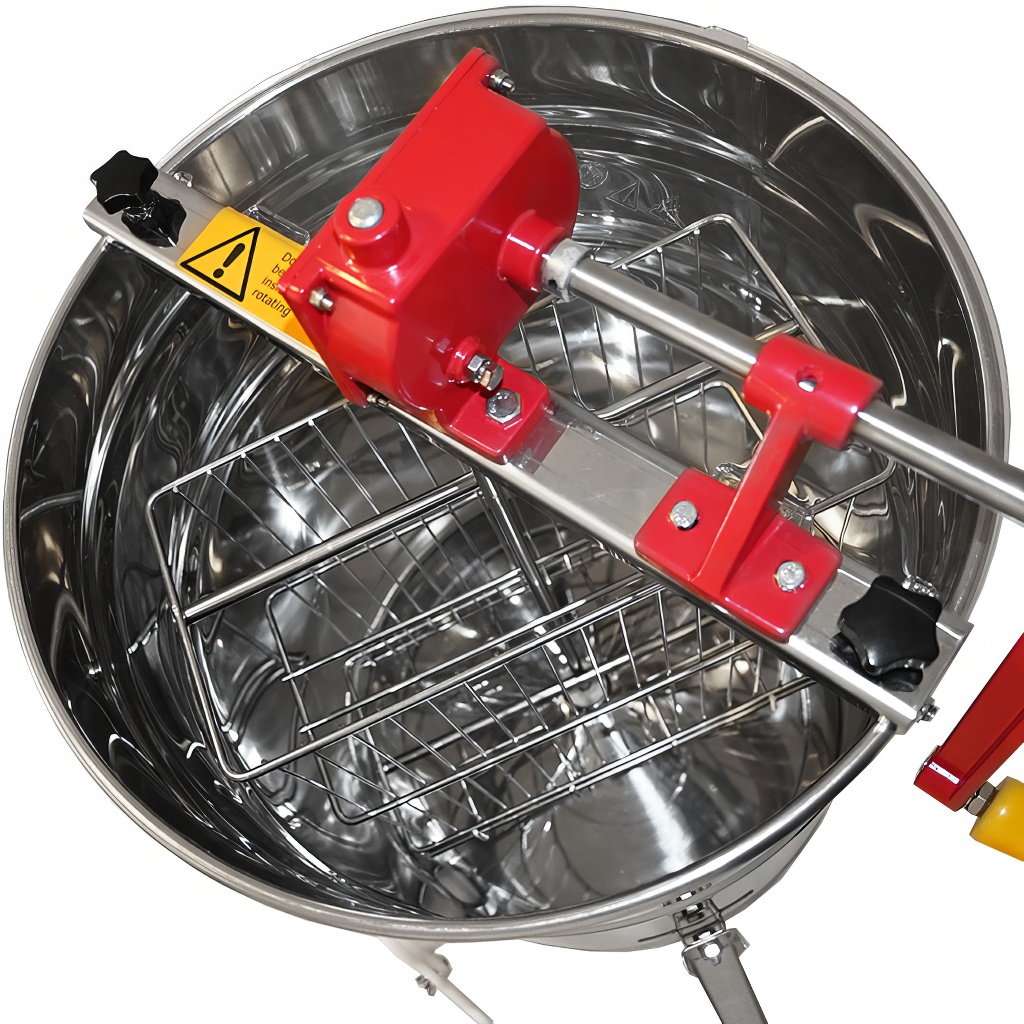

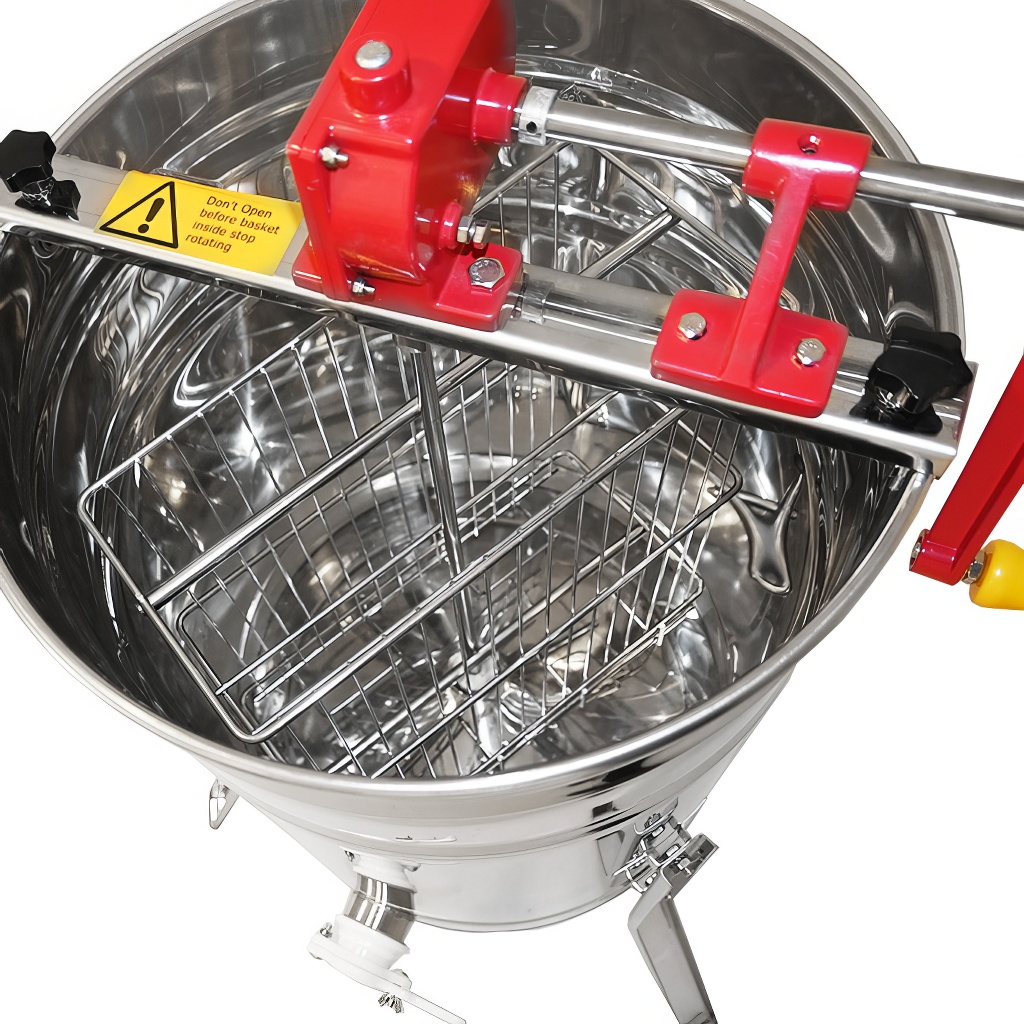

The manual drive is located at the top of the extractor, making it easily accessible for routine maintenance. The basket rests freely at the bottom on a durable ball bearing, while the upper drive is securely attached to a sturdy stainless steel crossbar. Wide hinges for the transparent Plexiglas covers are also mounted on this crossbar. After loosening two star knob screws, the top crossbar with the drive can be easily removed, followed by the basket itself. This allows you to conveniently clean the drum and basket separately and prepare the extractor for its next use.

Manual Drive with Brake and Freewheel

The honey extractor is equipped with a high-quality manual drive with an integrated gearbox that reduces the force required during extraction. Operation is therefore comfortable even for less experienced beekeepers. The sturdy crank made from durable material is designed for smooth operation and long-term use, even during more demanding honey harvesting.

Power transmission to the shaft is provided by a worm gear mechanism. This system also functions as an effective brake – by turning the crank in reverse, you can smoothly slow down the basket or bring it to a quick stop. This allows you to easily adjust the extraction speed to suit the condition of the combs, the age of the comb, and the amount of honey in the frames.

The drive also includes a practical freewheel mechanism that enhances work safety. If you release the crank while the basket is spinning, the crank will not dangerously spin on its own due to inertia. The worm gear disengages and the crank stops, making work with the extractor safe, smooth, and controlled.

Advantages Every Beekeeper Will Appreciate

The tangential honey extractor Mellarius OptiLine for 2 frames offers a sturdy stainless steel construction, easy sanitation, and gentle handling of beeswax comb. The polished stainless steel surface contributes to hygienic honey processing and simplifies maintenance after each use. The dense basket mesh helps protect combs from damage, while the removable legs simplify storage even in smaller spaces. The quickly detachable drive and removable basket significantly speed up cleaning. Comfortable operation is ensured by the manual drive with gearbox, brake, and freewheel. The honey extractors come from official German distribution and, depending on current stock availability, are supplied with black or grey legs.

Technical Specifications of the Honey Extractor
