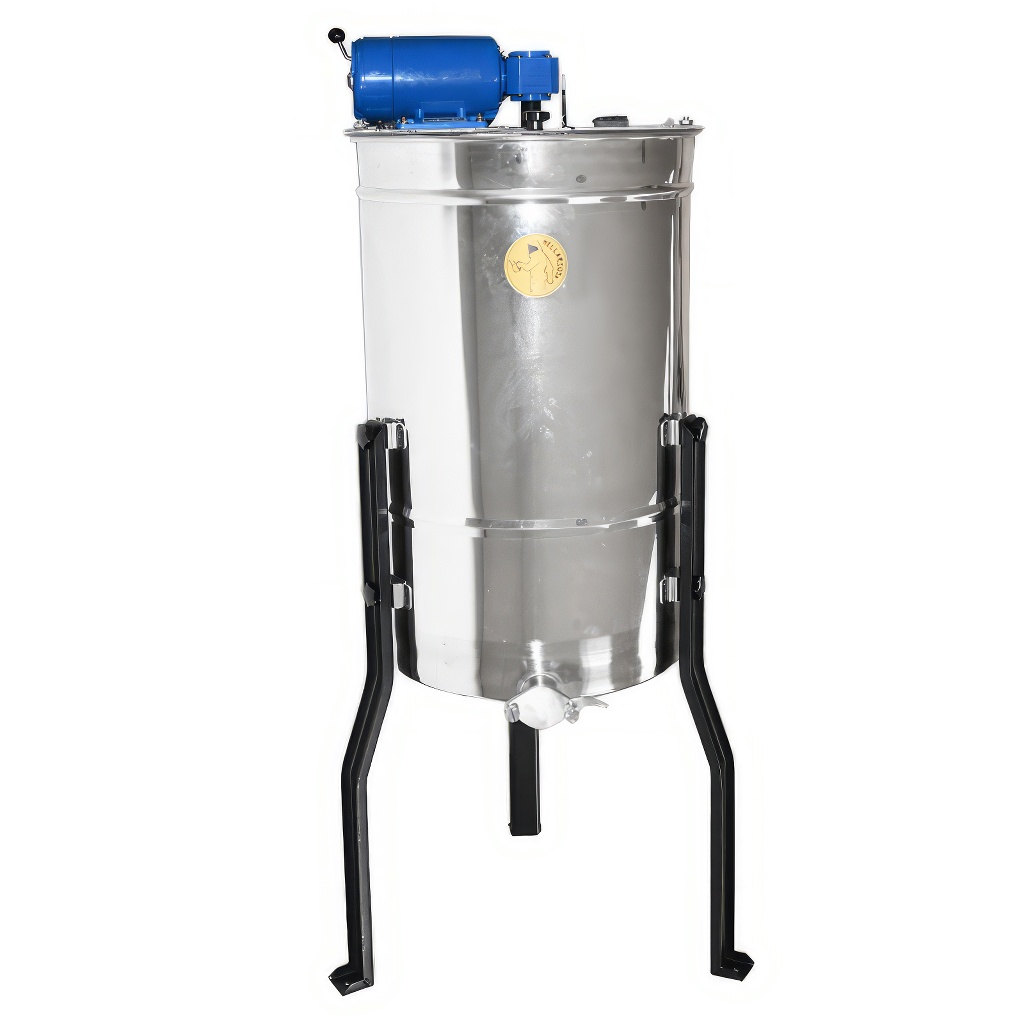

Mellarius MaxiLine D45 electric 4 frame honey extractor
A tangential honey extractor for four frames with electric drive. The width of the basket is 27 cm, so the honey extractor is suitable for most frames. The honey extractor is made of stainless steel sheets, meeting the certificates for contact with food.
About Mellarius MaxiLine honey extractors
The top offer of our honey extractors. The Mellarius MaxiLine honey extractor is a guarantee of high quality and long life. These honey extractors are made of thicker stainless steel sheets (0.8 to 1 mm) and are equipped with solid legs that increase the stability of the extractor. Each Mellarius Peritus honey extractor is equipped with an inclined bottom, thanks to which the honey flows comfortably to the tap. Thus, there is no need to tilt or further manipulate them in any way. We offer a wide range of manual and electric honey extractors in either tangential or radial design.
Technical parameters:
-
Max size of frame: 27x48 cm
-
Basket type: with shaft
-
Total height: 120 cm
-
Height of edge of container: 104 cm
-
Honey gate height from the ground: 38 cm
-
Container diameter: 45 cm
-
Direction of rotation: right, left
-
Performance: 110 W
Modern design
Mellarius MaxiLine honey extractors have a modern design, with the possibility of dismantling the legs. The drum of the honey extractor is made of high-quality stainless steel designed for food purposes with sufficient thickness (0.8 to 1 mm) so that unwanted dents cannot easily occur. The entire structure of the honey extractor is manufactured using plasma welding. Emphasis is placed on smooth, easy-to-clean surfaces.

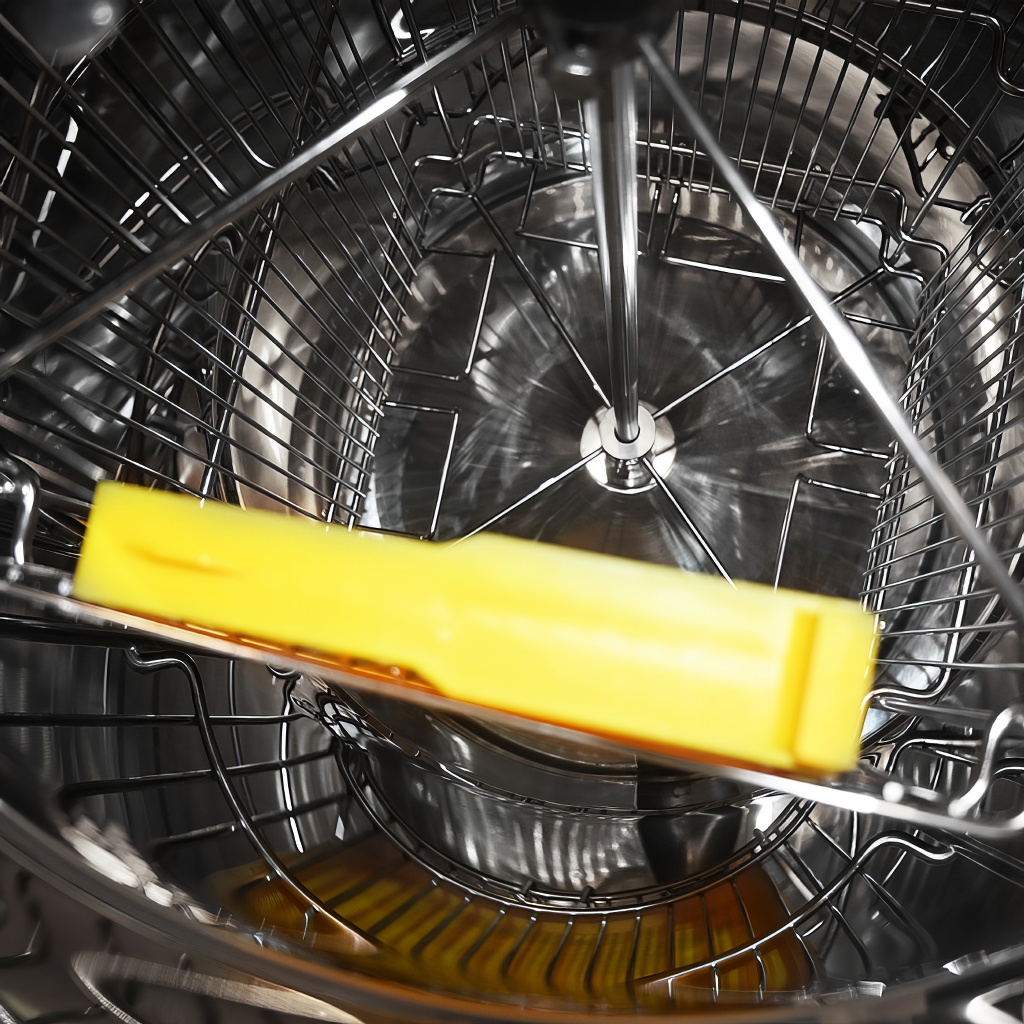

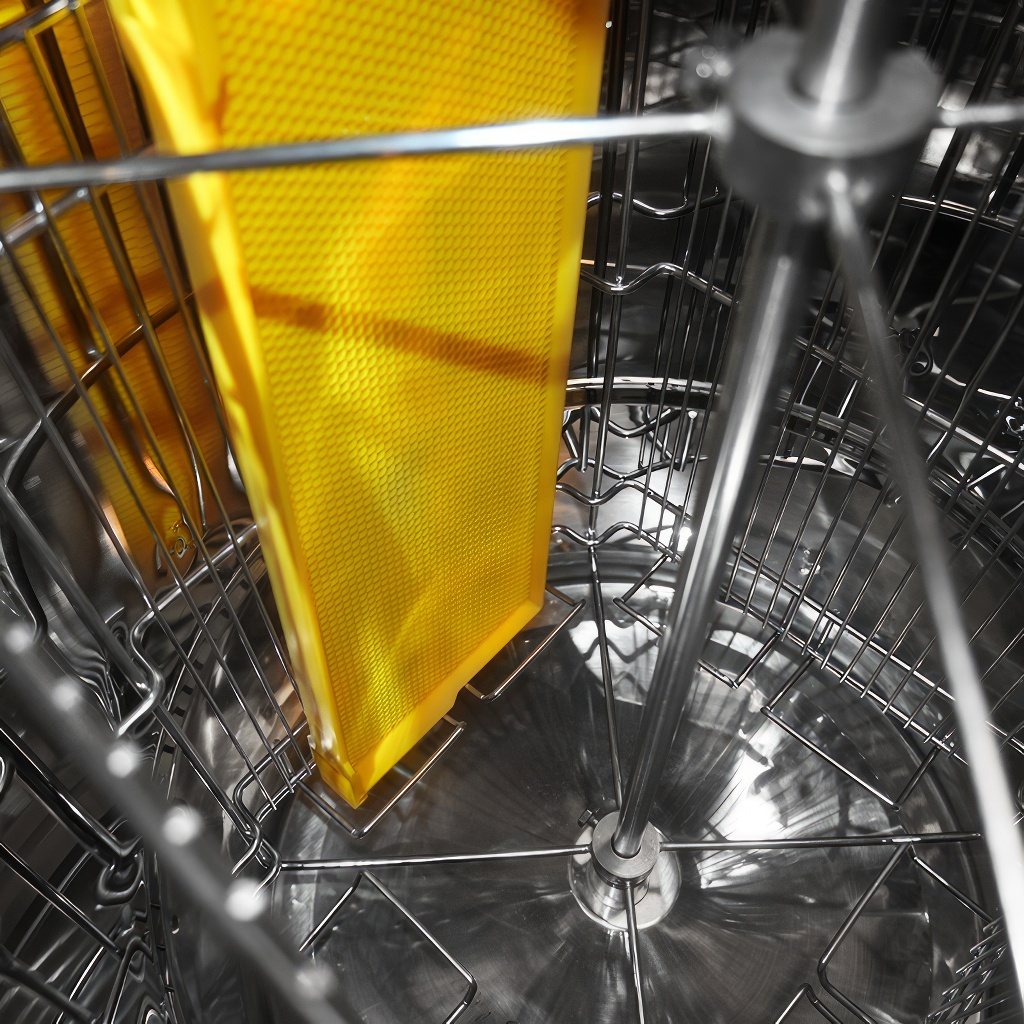

At our request, the honey extractors’ baskets are made with a denser mesh of stainless steel wires, thanks to which the weight of the honeycomb during extracting is distributed over a larger area and thus the wires do not cut into the honeycomb. Round bars that are torsion-resistant are used to make the baskets. Round surfaces without sharp edges are also easier to clean.

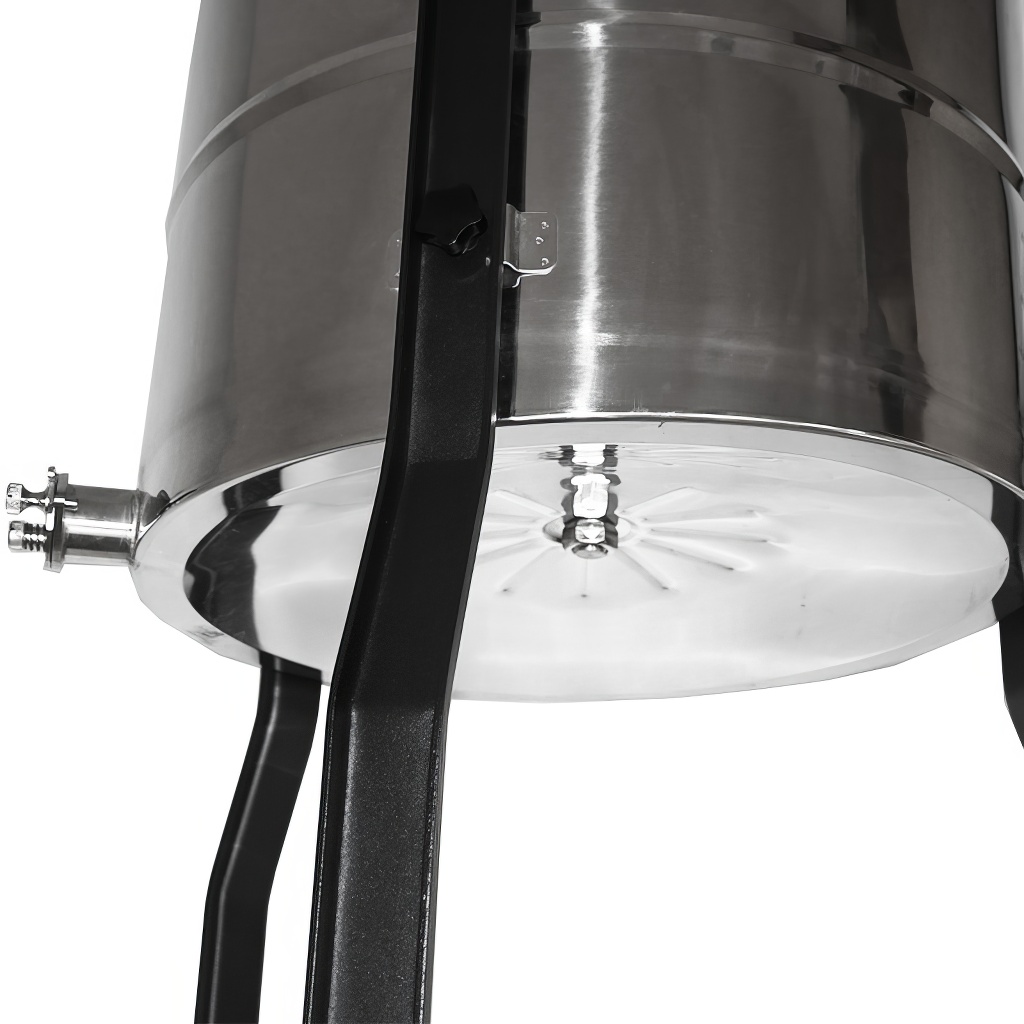

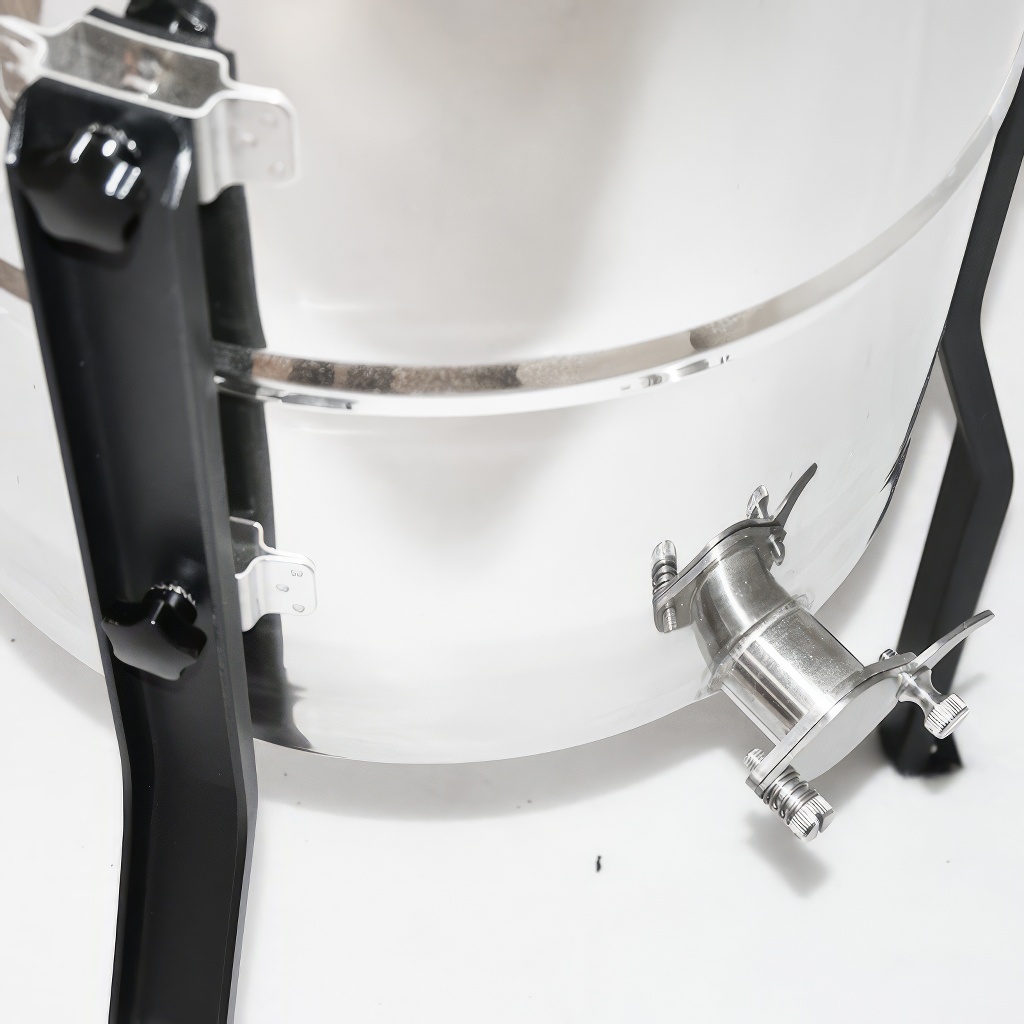

The honey extractors are equipped with an innovative conical bottom, into which a welded stainless steel tap with a shear valve is embedded in its lowest part. This way you can be sure that all the honey will always flow out of the honey extractor completely.

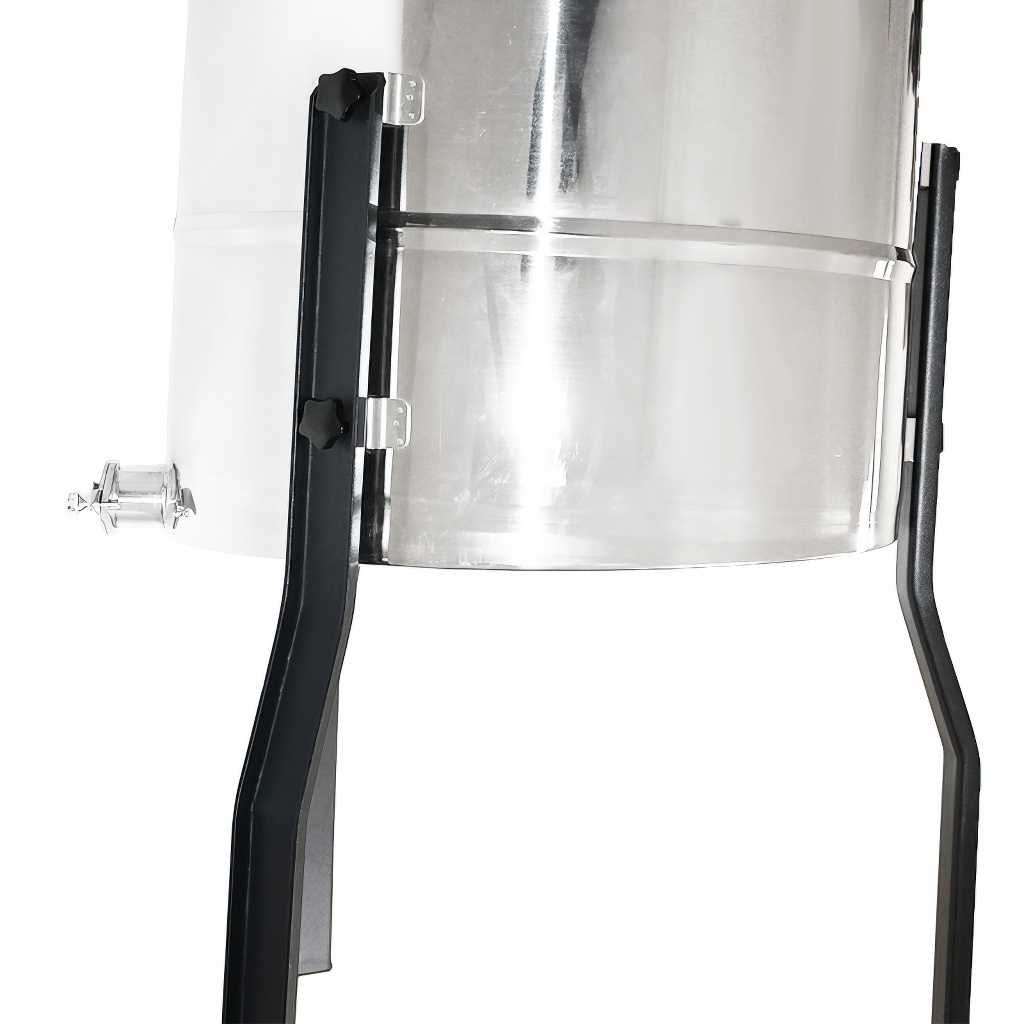

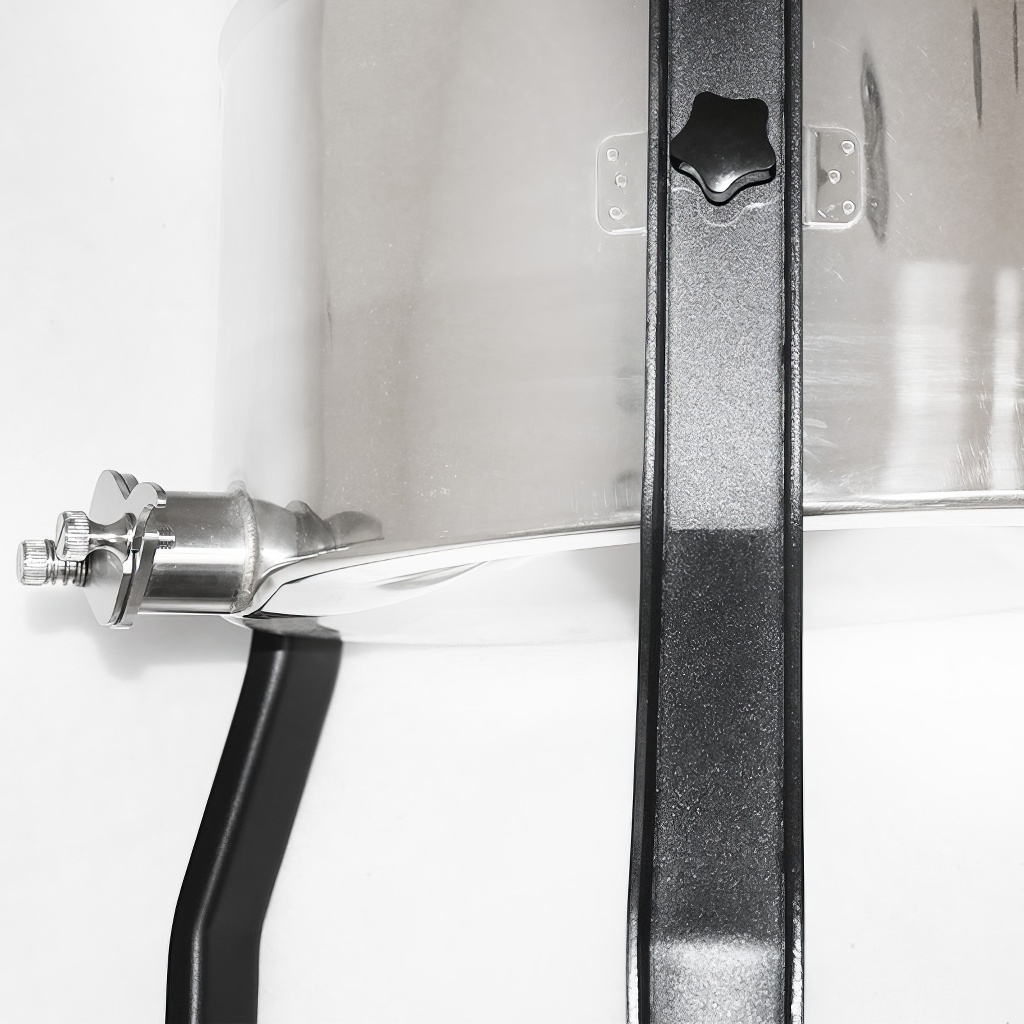

The system of legs, which are arranged on the honey extractor and attached to it so that the entire honey extractor achieves maximum stability, is also innovative. The legs are made of solid material and with their own weight contribute to stability when extracting honey. Thanks to the simple but firm attachment, the legs can be easily removed, which makes the entire honey extractor much more compact and you can safely store it for future use.
Easy disassembly
The drive system is always located at the top of the honey extractor, which provides easy maintenance. Thanks to this solution, the honey extractor basket is freely placed on the ball bearing in the lower part. The drive is placed on a clamping bar, which also has wide hinges for plexiglass covers. The clamping bar with the drive is massive enough, again made of polished stainless steel material for easy maintenance. After removing the upper bar with the drive, which is fastened with two star screws, the whole drive can be easily removed. You can also easily remove the entire honey extractor basket and you can easily clean the entire extractor and the basket separately.
Proven drive with the possibility of changing the speed
MaxiLine honey extractors are equipped with a reliable electric motor with a sufficient power of 110 W. These motors are equipped with their own fan for better cooling. The motor includes a robust manual system of continuous speed adjustment. The transmission of motor power to the honey extractor basket is ensured by a mechanical gearbox for an optimal range of extraction speeds.
The motor allows you to change the speed and thus change the direction of rotation of the entire basket, which increases the comfort of extracting. Bees tend to build cells at a slight incline (4° to 5°) upwards - so that the stored honey does not flow out of them, in addition, the honey stored in this way ensures a certain stability of the honeycomb. This is a disadvantage for bee-keepers, because when the honeycomb is placed in the honey extractor, the cells point in one direction, and if this direction is against the direction of rotation, then the honey flows out poorly and some honey may remain in the honeycombs. Therefore, it is an advantage to have a honey extractor with the possibility of double-sided extracting.
The main advantages of our honey extractor
-
Conical bottom with an embedded tap - all honey always flows out.
-
Quality stainless steel materials with a polished surface.
-
The baskets used have a dense grid - they do not destroy the honeycombs.
-
Simple leg disassembly system - easy storage.
-
Easy disassembly of the drive and honey extractor basket - convenient cleaning.
-
Quality electric motor 110 W.
