Medomet Mellarius MaxiLine 6 frame manual with large crank P64
In stock
Tangential honey extractor for four frames with manual drive, which features a freewheel and brake. The basket width is 30 cm, so the extractor is suitable for most frames. The extractor is made of polished stainless steel sheets, meeting food contact certifications. Premium design with conical bottom and many other innovative features.
Manual tangential honey extractor Mellarius MaxiLine for 4 frames for comfortable honey harvesting
Are you preparing for honey extraction and looking for a honey extractor that will make the work easier, be gentle on combs, and last for many seasons? The manual tangential honey extractor Mellarius MaxiLine for 4 frames is a suitable choice for beekeepers who require a solid build, stable operation, and efficient honey extraction without unnecessary losses. The drum and basket are made of highly polished food-grade stainless steel designed for contact with food. Thanks to the basket width of 25 cm, the extractor is compatible with most common frame sizes used in the Czech Republic and abroad.
High-quality MaxiLine series with a stable construction
Mellarius MaxiLine honey extractors are among the robust beekeeping equipment designed for reliable use in the honey house. Compared to cheaper economy models, they are manufactured from thicker stainless steel sheets with a thickness of 0.8 to 1 mm, which increases the strength of the drum and reduces the risk of denting during handling. The body of the extractor is fabricated using plasma welding technology, which produces smooth and clean joints. An important part of the construction are also the heavy-duty legs with a wide stance that help dampen vibrations and keep the extractor stable even when extracting heavier or unevenly loaded combs. After the season, the legs can be easily removed, making the extractor easier to store.
Conical bottom for gravity honey drainage
During honey harvesting, it is practical when honey drains from the extractor without the need to tilt the entire unit. The Mellarius MaxiLine model is therefore equipped with a conical bottom with a slope that naturally guides honey to the lowest point of the tank. A welded stainless steel gate valve with a guillotine closure is fitted here, through which honey flows smoothly into the prepared container. Thanks to this design, minimal honey remains on the bottom, and post-extraction work is faster and more convenient.

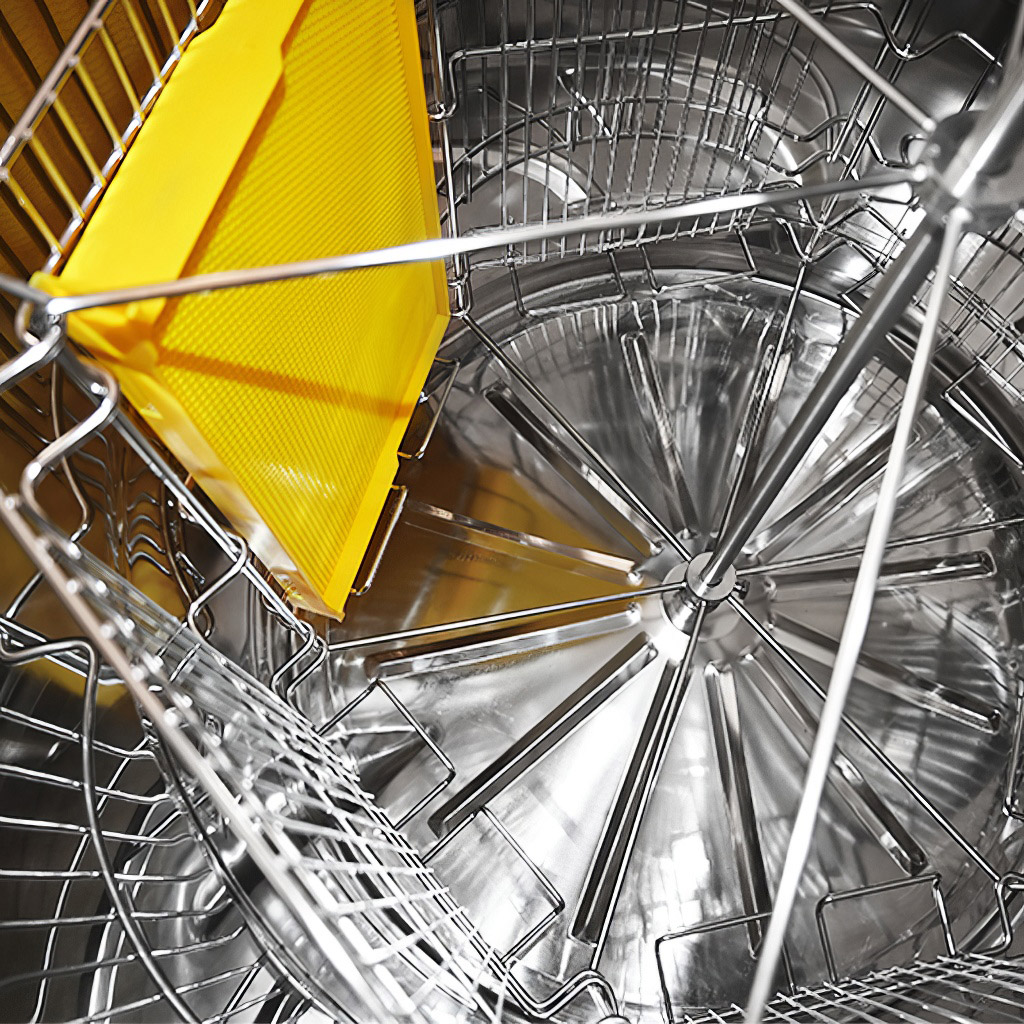

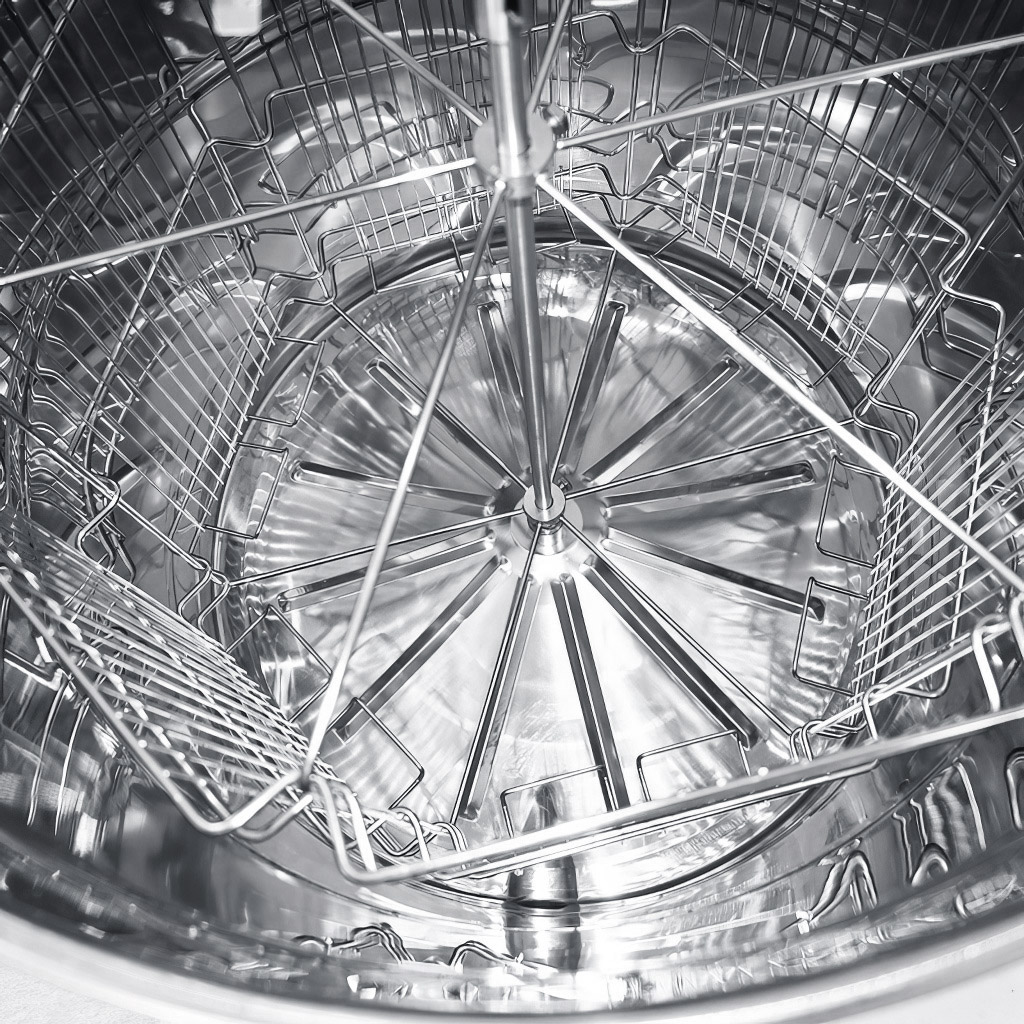

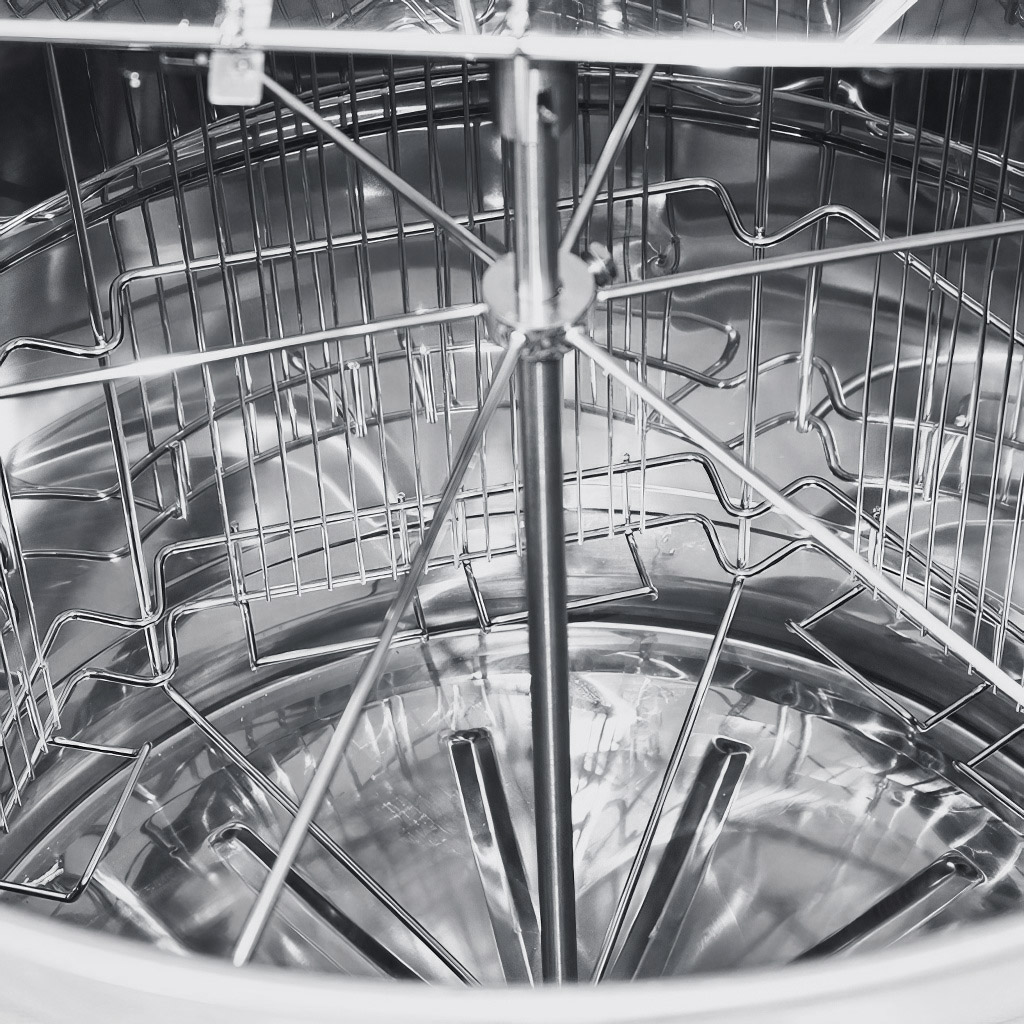

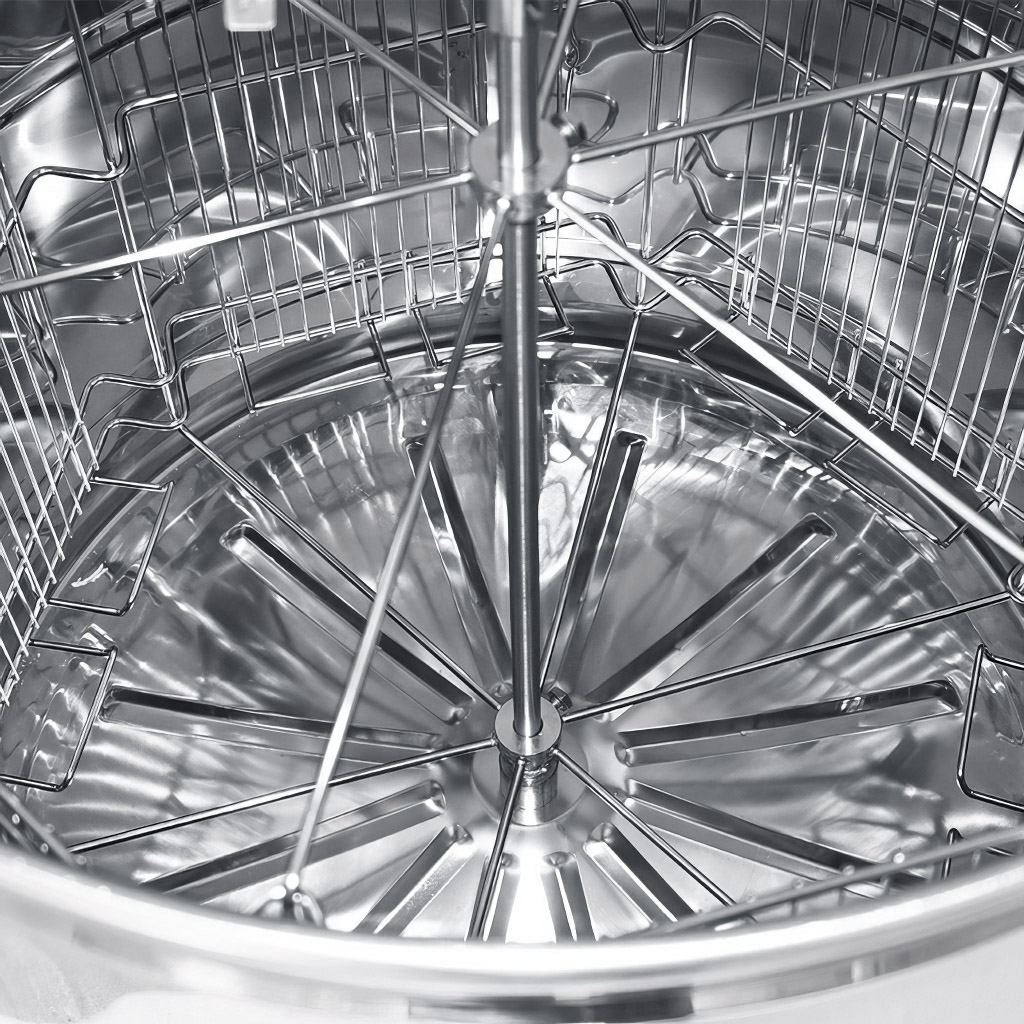

Dense stainless steel basket gentle on the honeycomb
Gentle extraction is especially important with virgin combs or combs filled with heavy honey. The basket of the Mellarius MaxiLine honey extractor is made of densely arranged stainless steel wires that distribute the centrifugal force over a larger area of the comb. This reduces the risk of tearing or damaging the honeycomb. The basket construction is reinforced with strengthened circular rods that resist twisting well. The smooth round profiles also have no sharp edges where impurities could accumulate, which makes subsequent cleaning easier.
Manual drive with freewheel and brake
The honey extractor is equipped with a high-quality mechanical manual drive with a robust gearbox. The gear ratio is designed so that the basket can be spun smoothly and without unnecessary effort, which you will especially appreciate during longer honey extraction sessions. The sturdy crank is made of durable material, and the drive is fitted with a freewheel. If you release the crank during spinning, the gear disengages and the crank stops turning, while the basket continues to rotate safely by inertia. The worm gear also provides a braking effect – by gently turning the crank in the opposite direction, the basket can be smoothly slowed down or stopped as needed.
Easy disassembly and cleaning after honey harvesting
Equipment cleanliness is essential when processing honey. The Mellarius MaxiLine honey extractor is therefore designed to be quickly disassembled and conveniently washed. The drive is mounted on a sturdy upper stainless steel crossbar, which also holds the hinges of the transparent protective covers made of Plexiglas. The basket is supported at the bottom by a high-quality ball bearing. After loosening two star knob screws, the upper crossbar with the drive can be removed in a short time, and then the entire basket can be lifted out of the drum. This way, you can easily rinse both the drum and the basket with warm water without obstacles and time-consuming cleaning.
Technical specifications of the Mellarius MaxiLine honey extractor for 4 frames
| Number of frames / extractor type | 4 frames / tangential |
| Basket dimensions (width × height) | 25 × 48 cm |
| Basket type | Basket with shaft, reinforced circular rods and dense wire mesh |
| Drum and basket material | Polished food-grade stainless steel, 0.8 to 1 mm thickness |
| Bottom type | Conical bottom with slope for efficient honey drainage |
| Outlet valve | Welded stainless steel gate valve with guillotine closure |
| Drive type | Manual drive with gearbox, freewheel and worm gear brake |
| Extractor height when assembled | 104 cm |
| Extractor height including drive | 120 cm |
| Gate valve height from the ground | 38 cm for convenient filling of honey containers |
| Outer drum diameter | 64 cm |
| Basket rotation direction | Clockwise |
| Construction joints | Plasma welding with smooth surface and no sharp corners |
| Leg features | Heavy-duty stable construction, easy removal |
Mellarius MaxiLine honey extractors come from official German distribution, which ensures compliance with high European manufacturing standards as well as availability of spare parts. Depending on current stock availability, they are supplied with black or grey heavy-duty legs. This four-frame honey extractor represents a reliable combination of solid construction, safe operation, and comfortable handling during every honey harvest.
