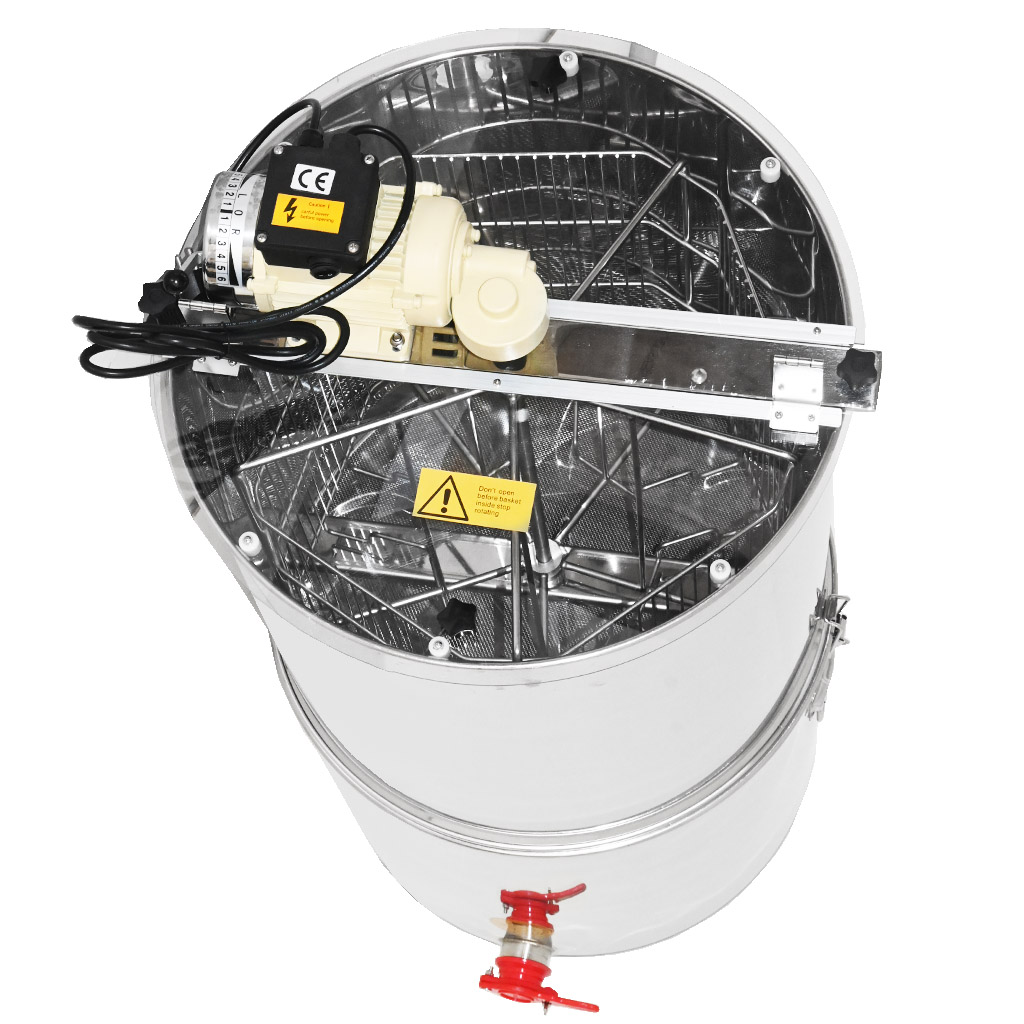

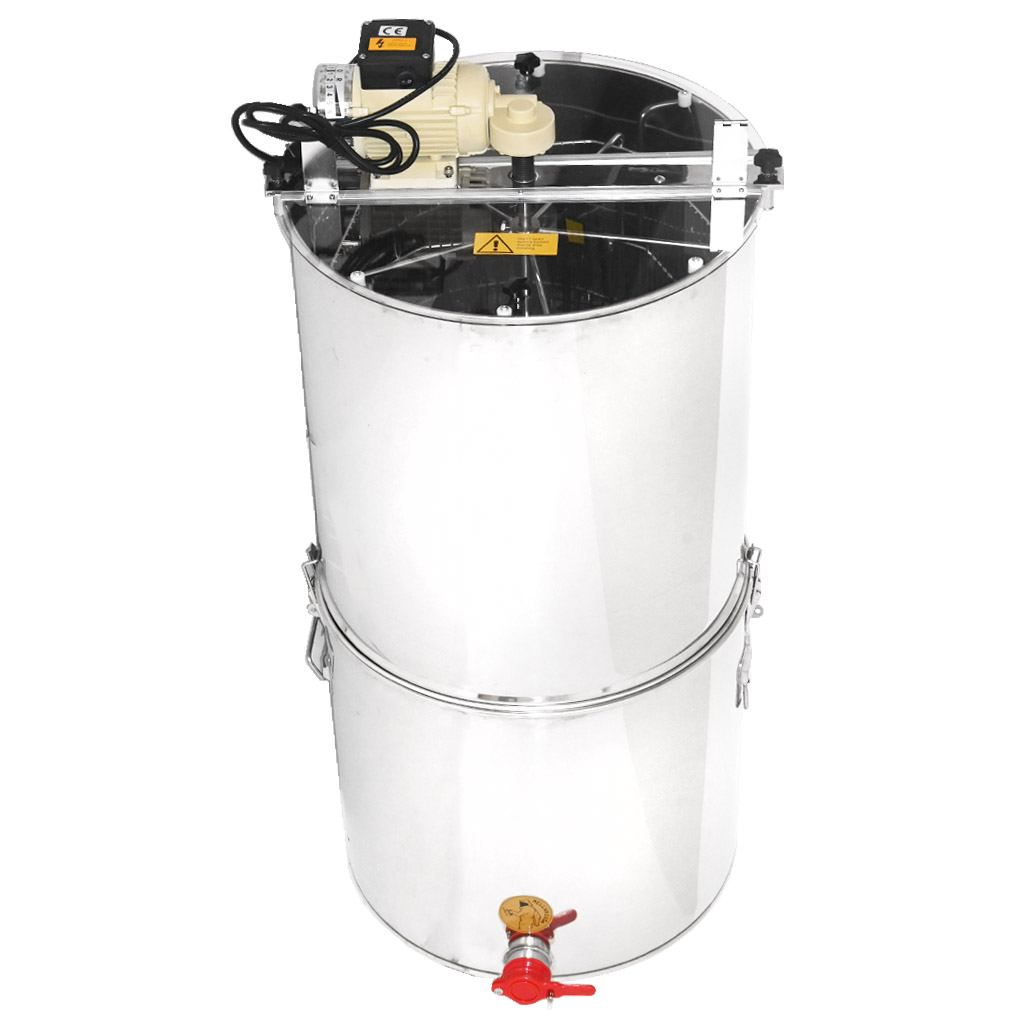

Honey Extractor with Container Mellarius OptiLine 5/10 r. with 230V Electric Motor P52

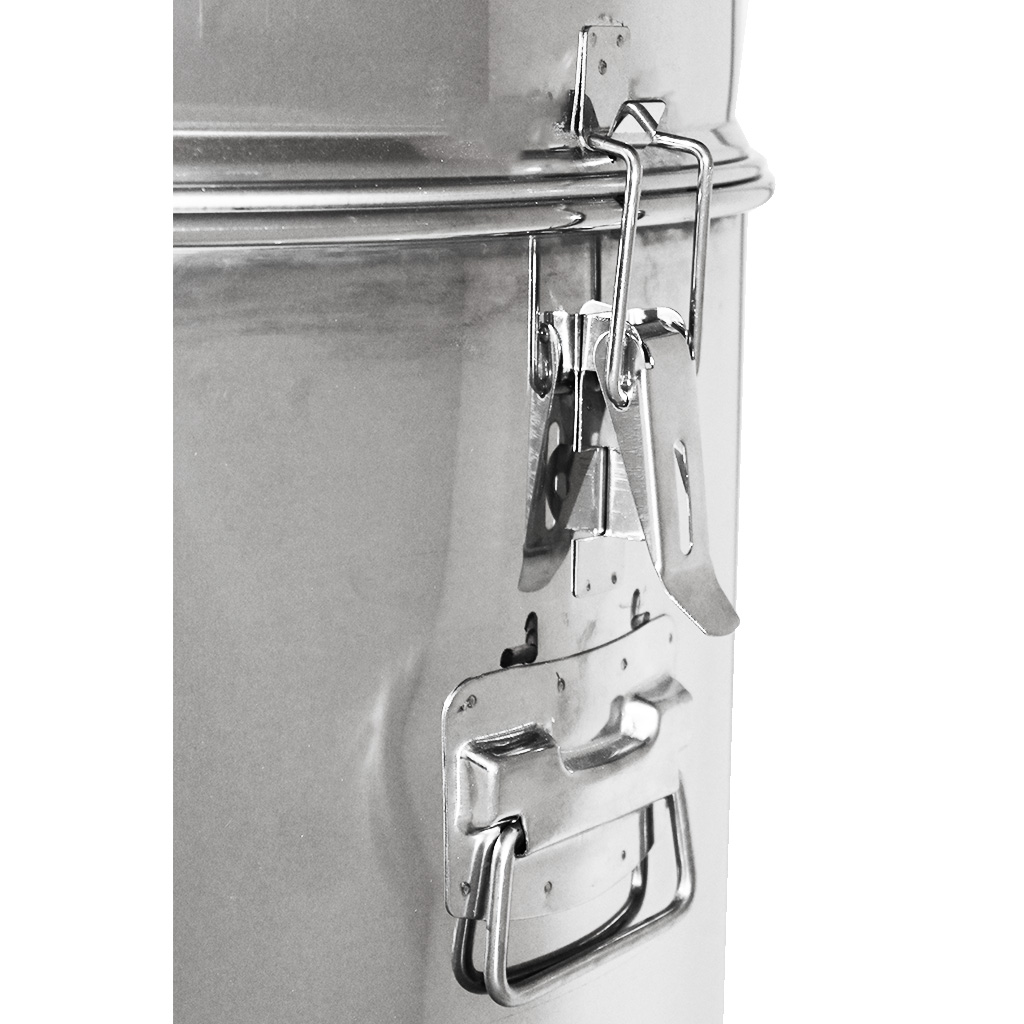

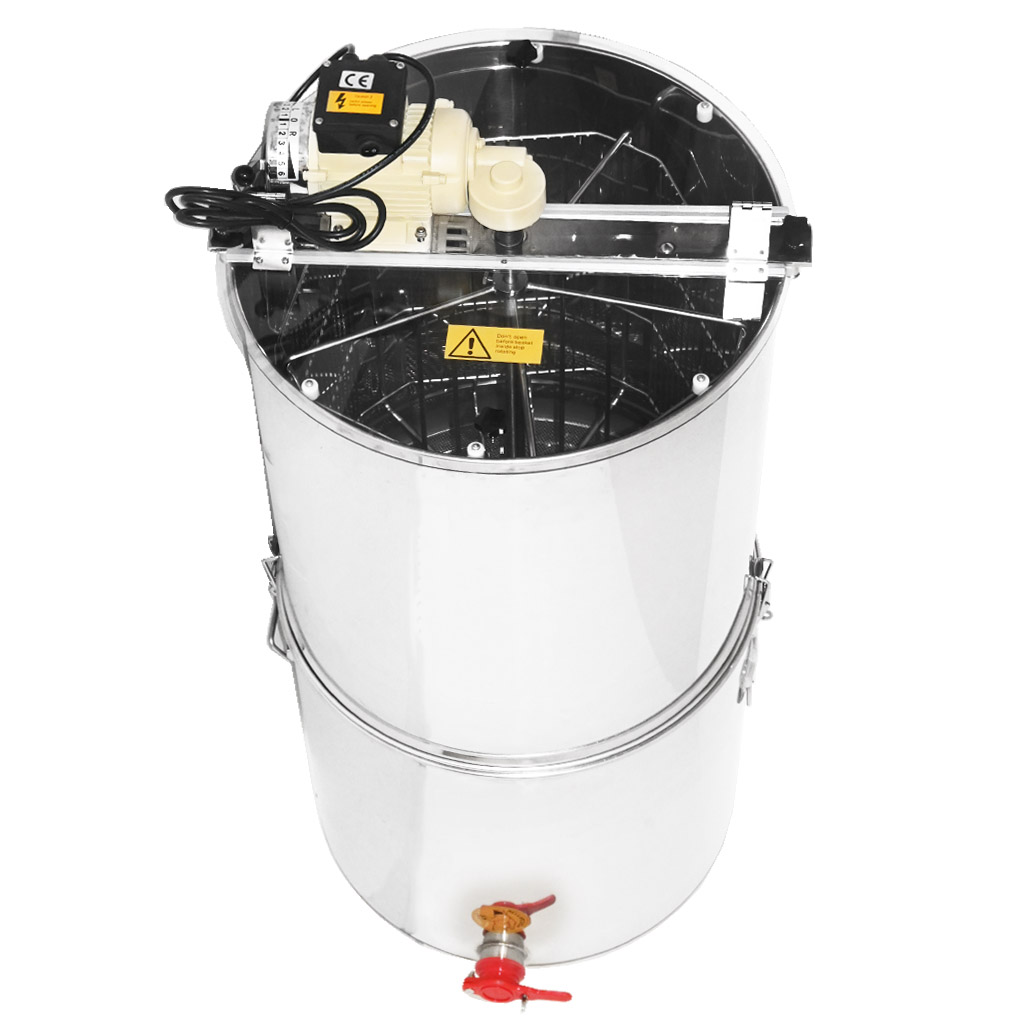

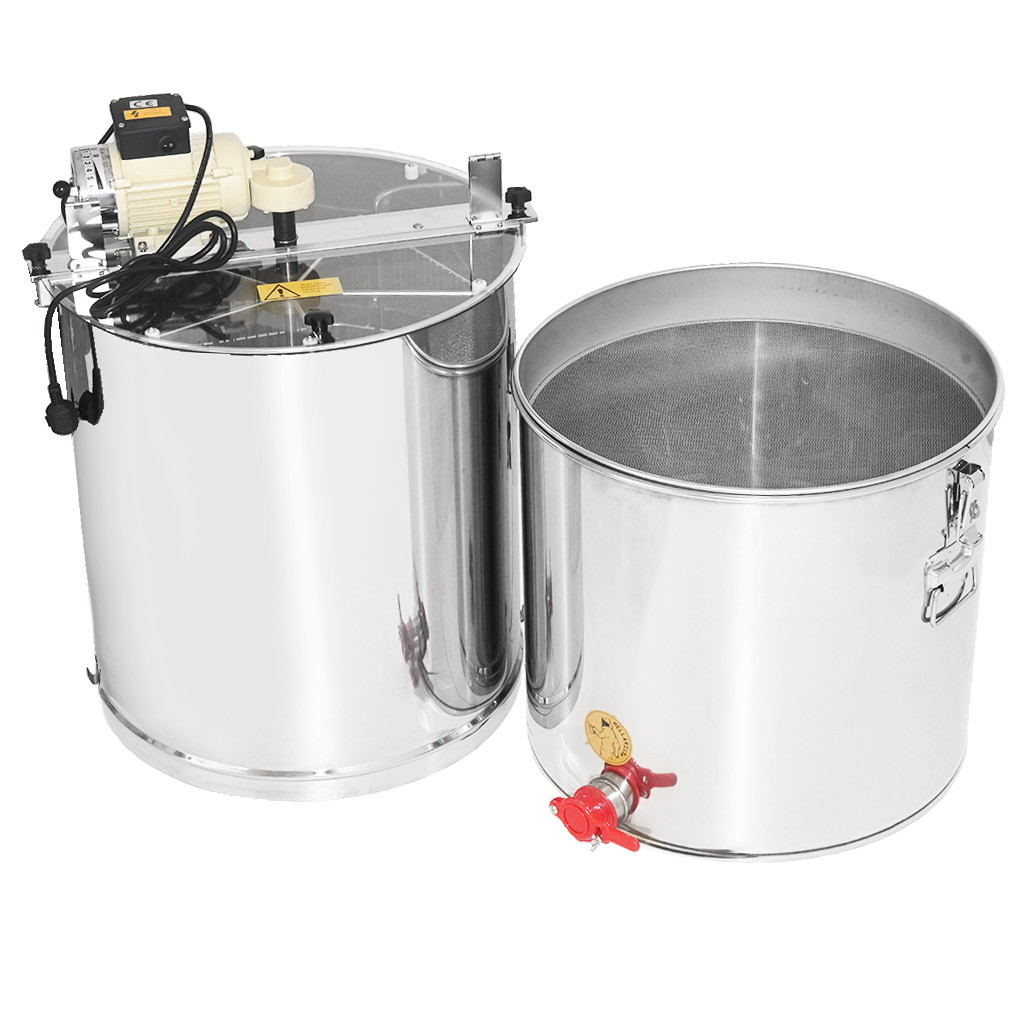

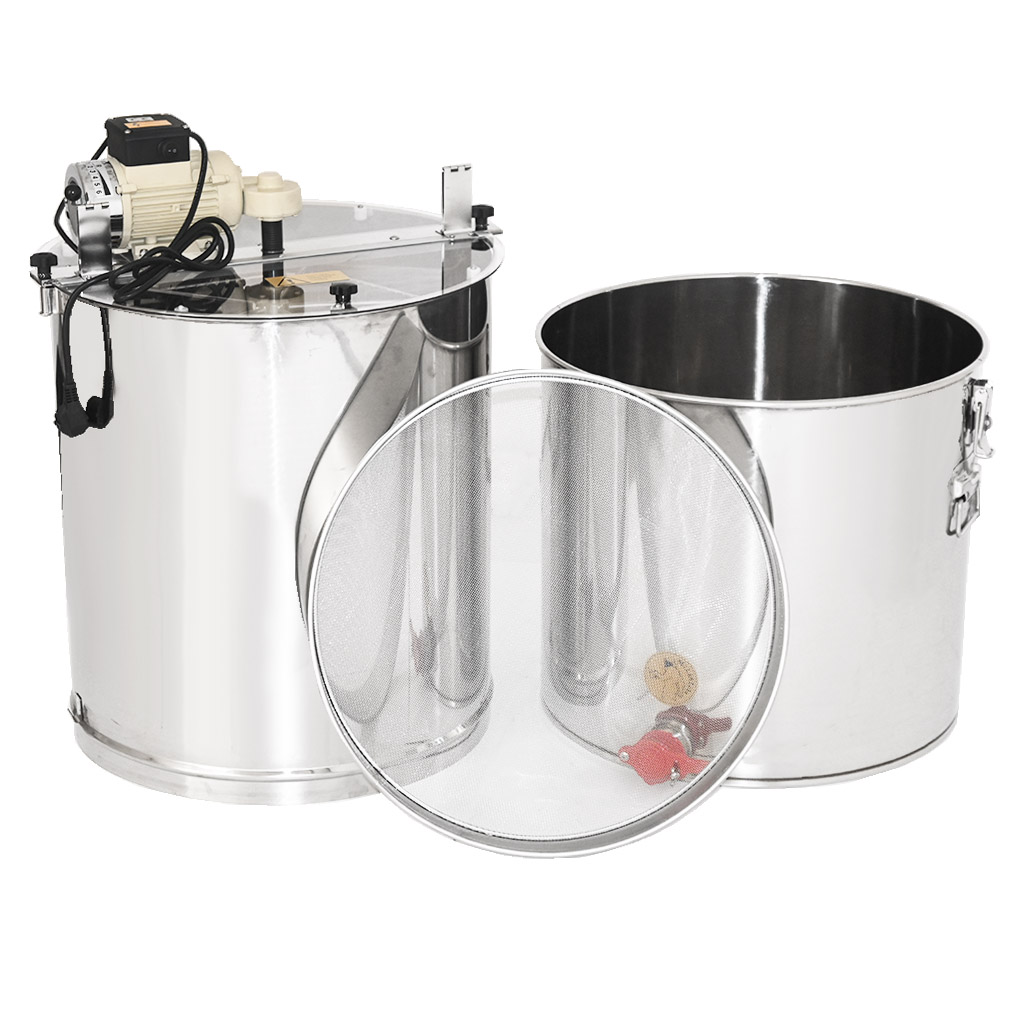

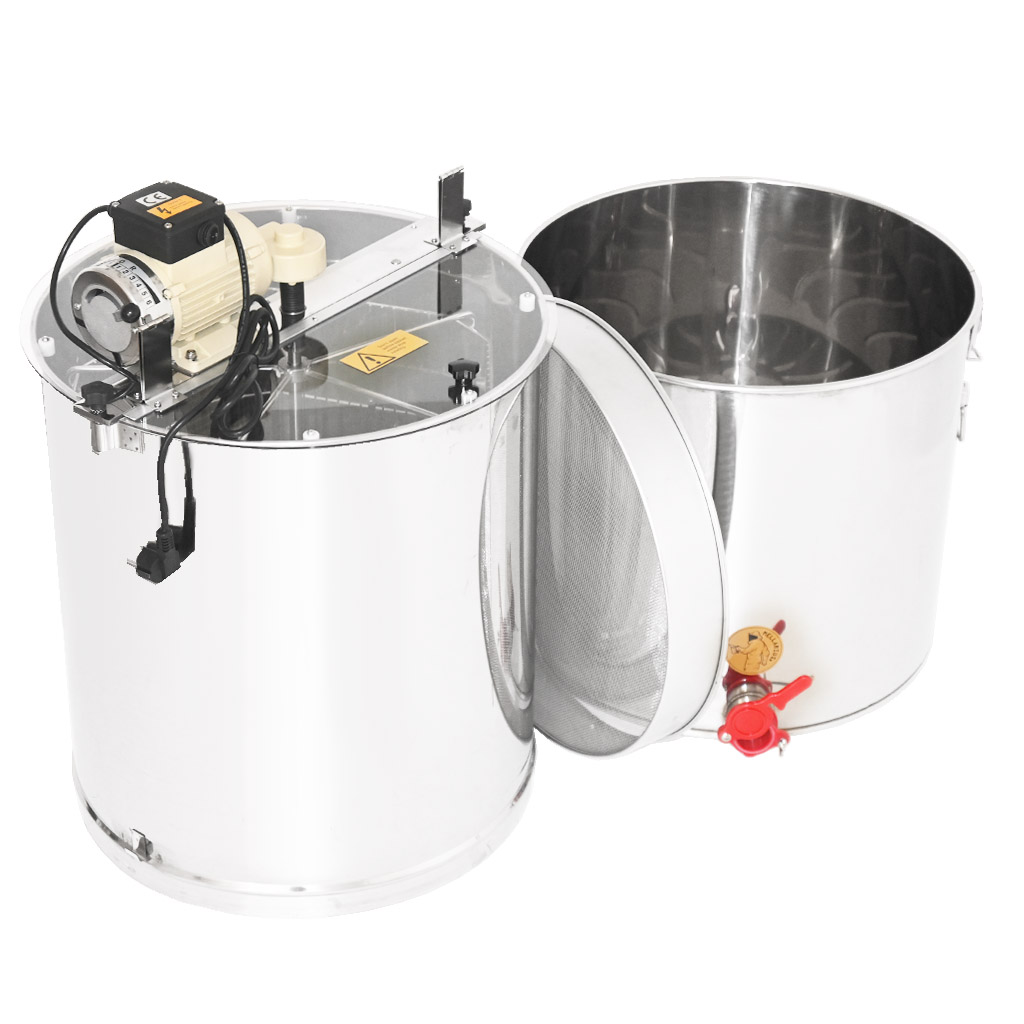

Tangential honey extractor for five frames (or radial for ten frames) with electric drive, with its own container and strainer. The extractor is firmly connected to the container using clamps. Between the extractor and the container is a large strainer with a diameter of 52 cm. The basket width is 26 cm, so the extractor is suitable for most frames. The advantage of this solution is the integrated strainer and container, where in one device you get everything needed for extracting, straining, and bottling honey.

About Mellarius OptiLine honey extractors

Mellarius OptiLine honey extractors offer a full-featured honey extractor in high-quality design at a favorable price. These extractors are made from thicker stainless steel sheets (0.8 to 1 mm). A wide range of manual and electric extractors in tangential or radial variants.

Modern construction

Mellarius OptiLine extractors have a modern construction, with removable legs. The extractor drum is made of food-grade stainless steel of sufficient thickness (0.8 to 1 mm), so that unwanted dents cannot easily occur. The entire construction of the extractors is manufactured using plasma welding. The design emphasizes smooth surfaces that are easy to clean.

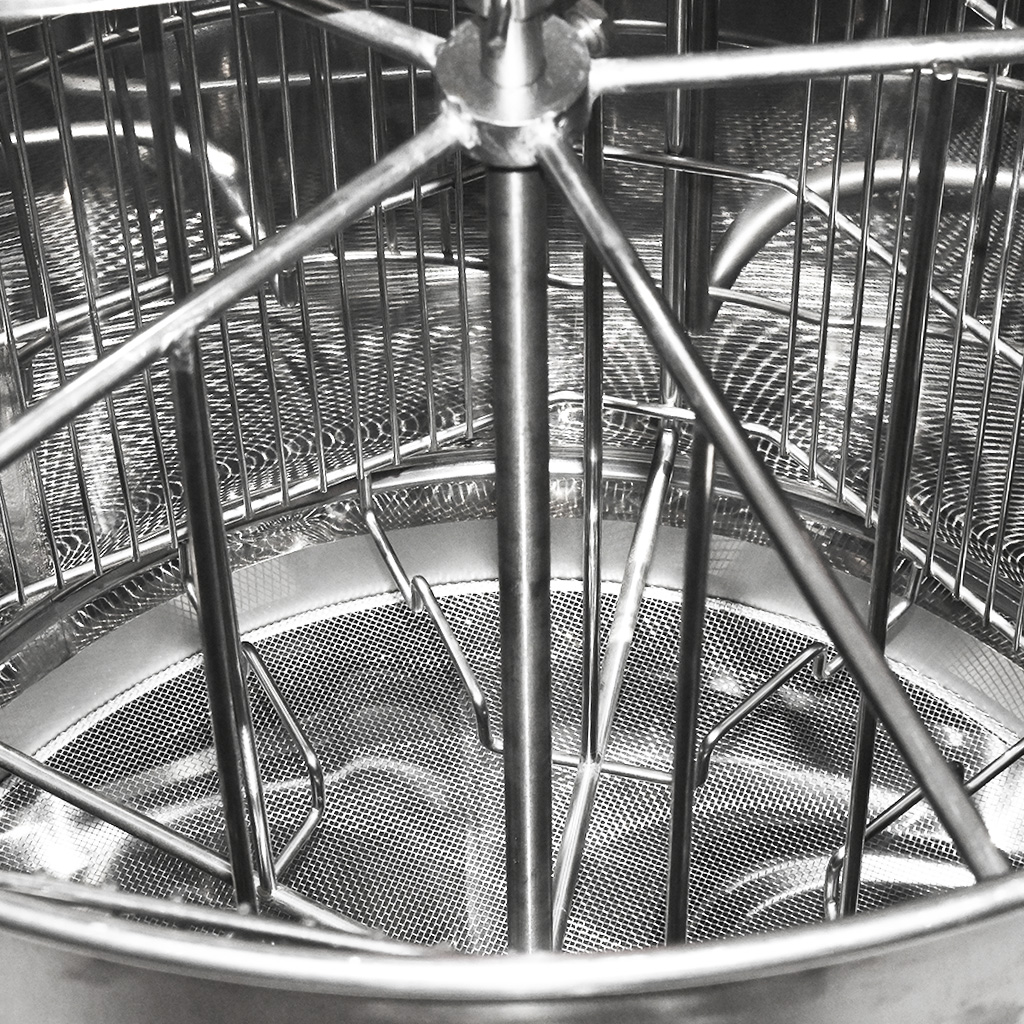

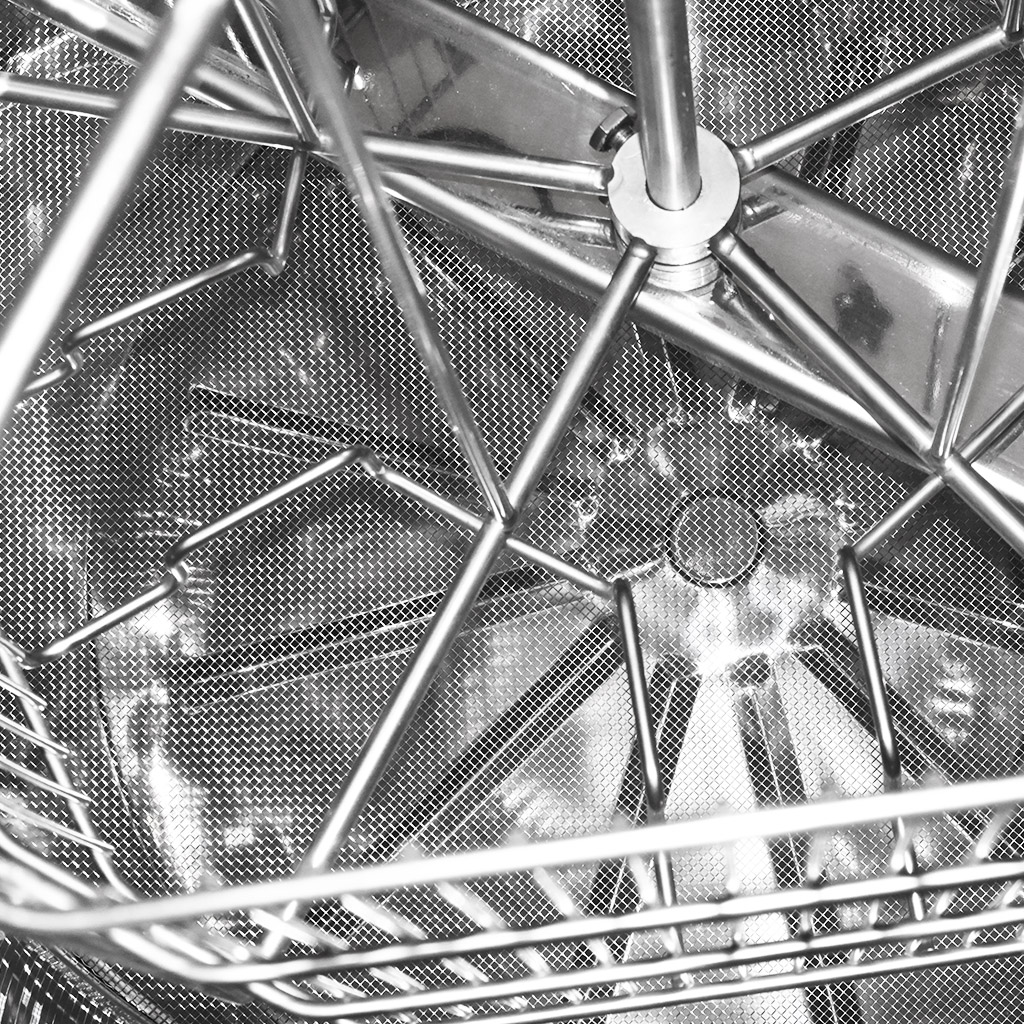

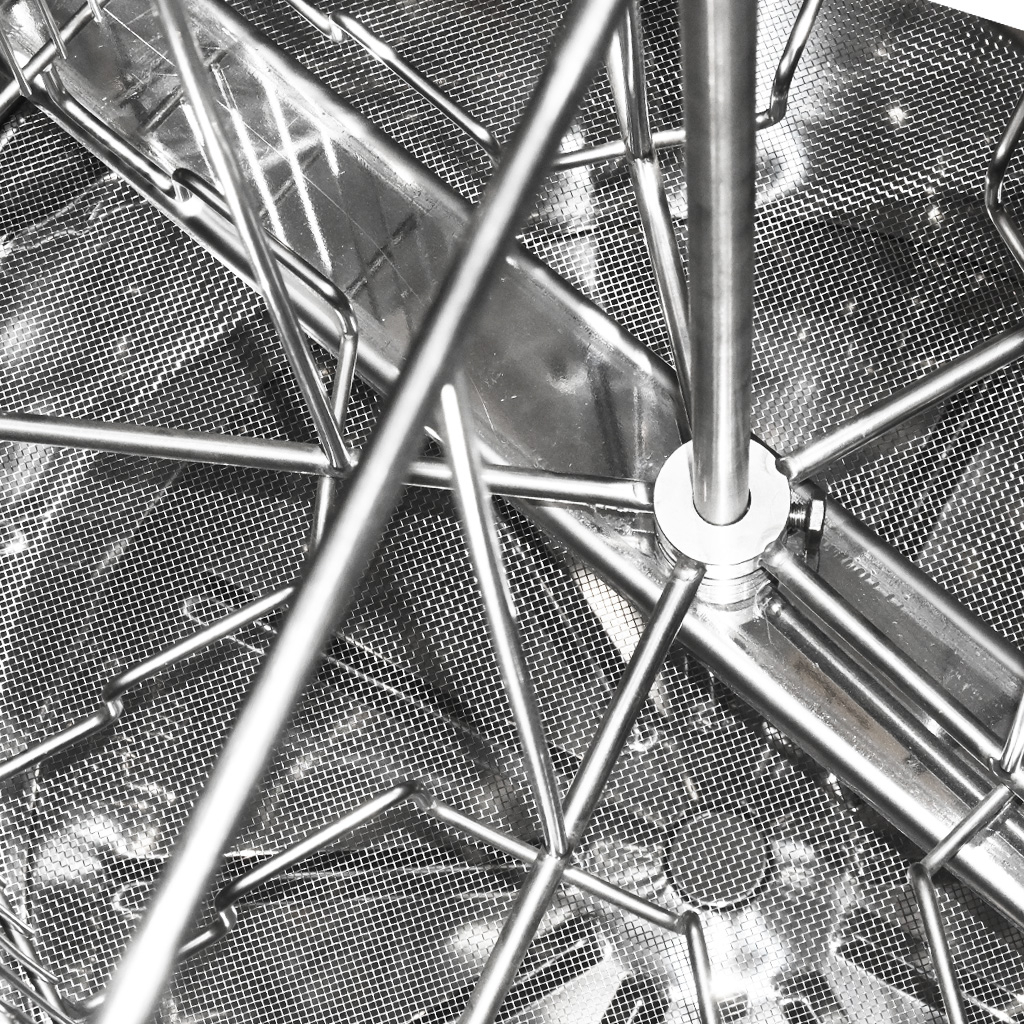

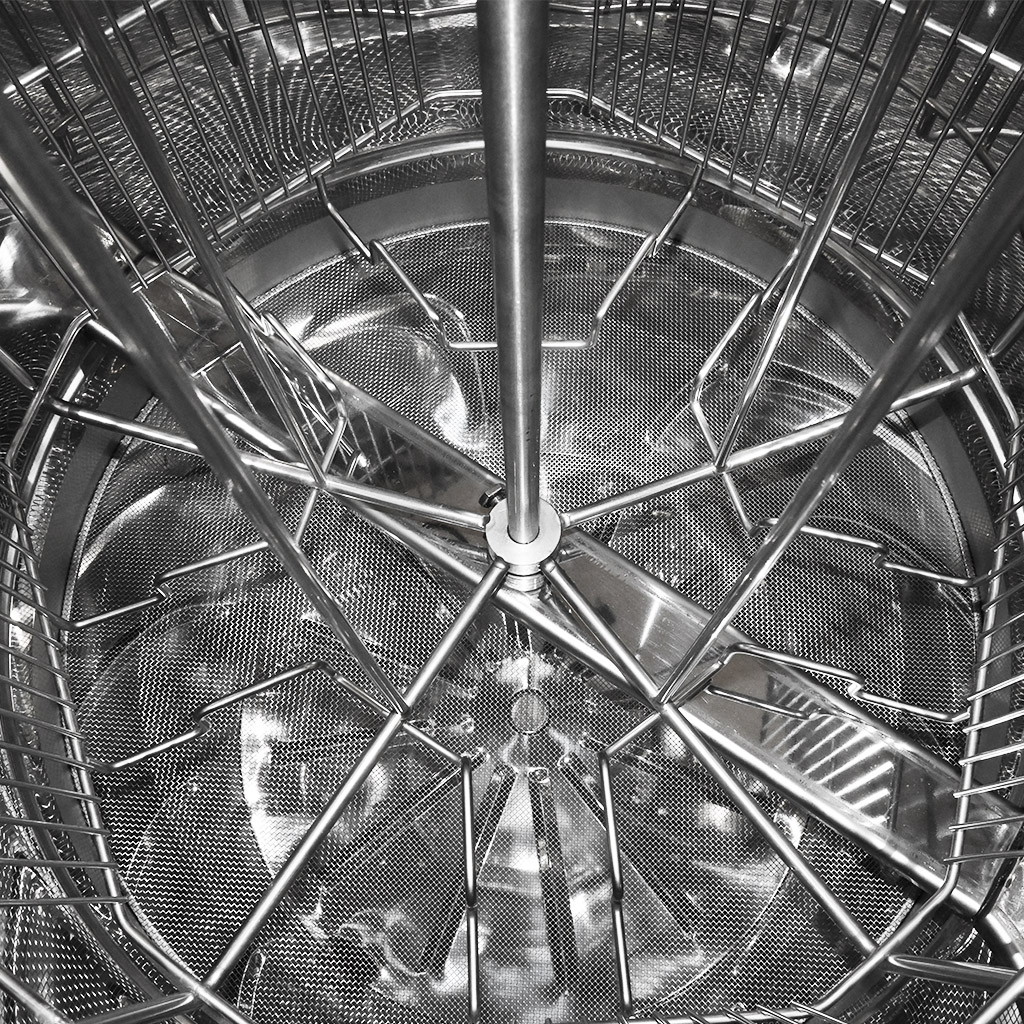

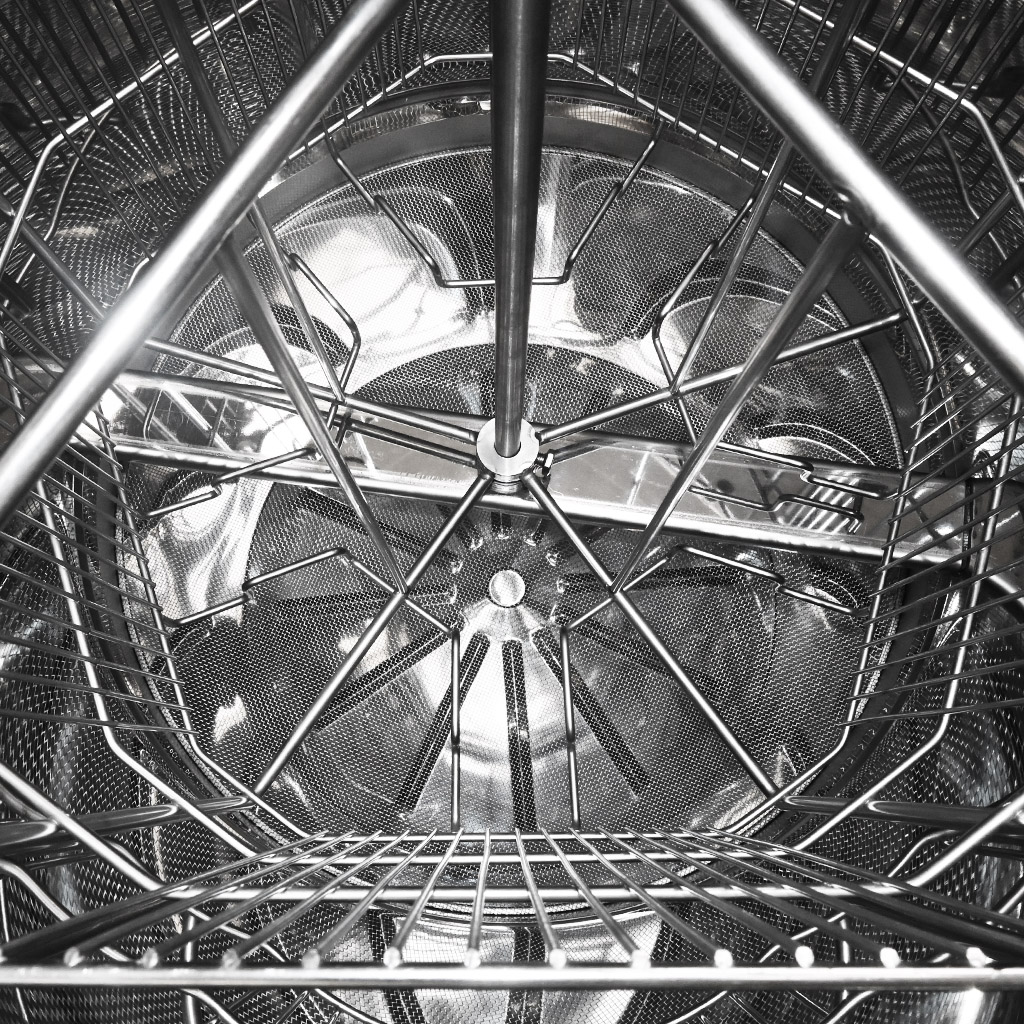

The extractor baskets are made with a denser network of stainless steel wires, which means that the force on the comb during extraction is distributed over a larger area, preventing the wires from cutting into the honeycomb. Round bars resistant to twisting are used to manufacture the baskets. Round surfaces without sharp edges are also easier to clean.

Easy disassembly

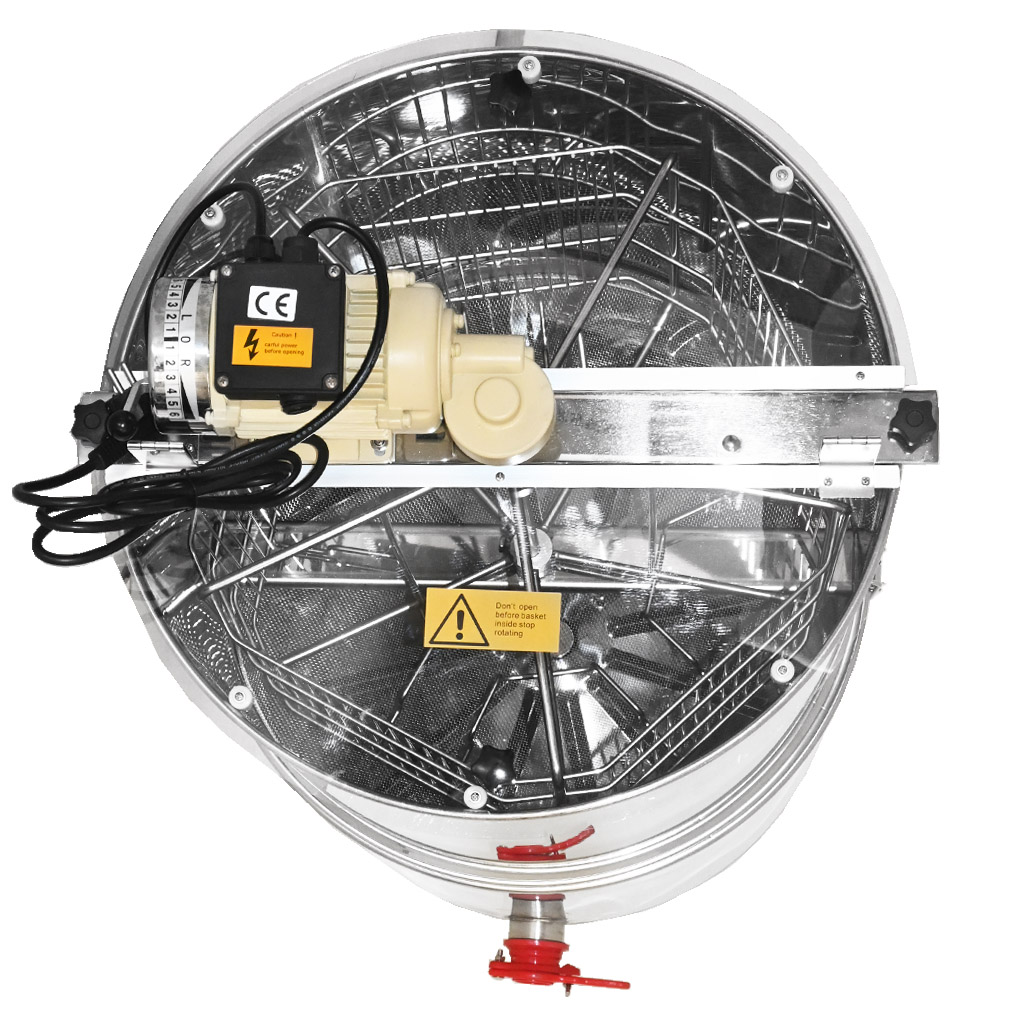

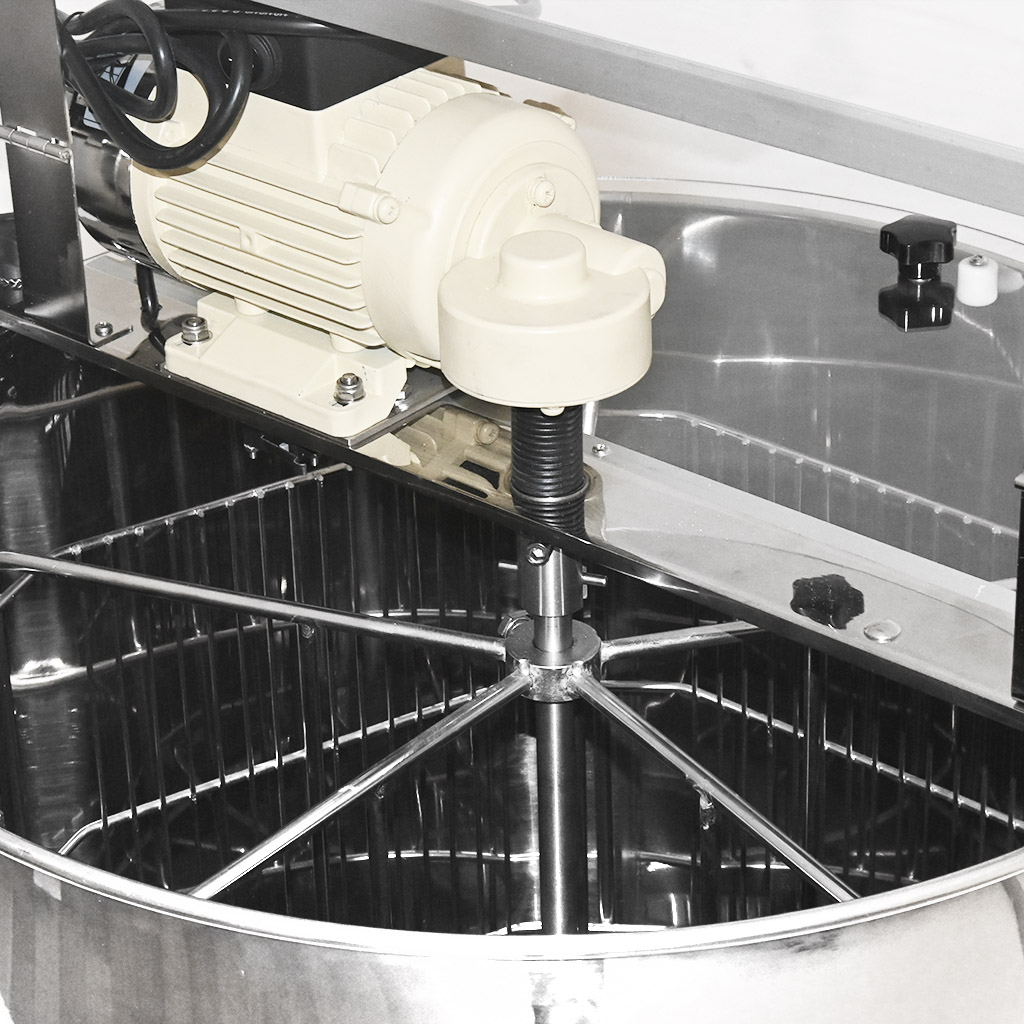

The drive system is always located in the upper part of the extractor, which provides the possibility of easy maintenance. Thanks to this solution, the extractor basket in the lower part is freely placed on a ball bearing. The drive is located on a mounting rail, which also has wide hinges for plexiglass covers. The mounting rail with the drive is sufficiently massive, again made of polished stainless material, for easy maintenance. After removing the upper rail with the drive, which is attached with two star screws, the entire drive can be easily removed. Just as easily, you can remove the entire basket from the extractor and can easily clean the entire extractor and basket separately.

Proven drive with the ability to change speed

Maxima series extractors are equipped with a reliable electric motor with sufficient power of 110 W. These motors are equipped with their own fan for better cooling. The motor includes a robust manual system for continuous speed regulation. The transfer of motor power to the extractor basket is ensured by a mechanical gearbox for an optimal range of extraction speeds.

The motor allows for speed changes and thus changing the direction of rotation of the entire basket, which increases comfort during extraction. Bees tend to build cells at a slight upward angle (4° to 5°) - so that the stored honey does not flow out, and moreover, honey stored this way ensures certain stability of the comb. For beekeepers, this has a disadvantage because when the comb is placed in the extractor, the cells point in one direction, and if this direction is against the direction of rotation, then the honey does not flow out well and some honey reserves may remain in the combs. Therefore, it is advantageous to have an extractor with the possibility of bidirectional extraction.

Technical parameters of the extractor

• Basket width: 26x48 cm
• Basket type: with shaft
• Height of the extractor when assembled: 120 cm
• Drum height: 56 cm
• Container height: 50 cm
• Outer drum diameter: 52 cm
• Motor: 110W
• Regulation: continuous, manual
• Direction of rotation: both

The extractors are from official German distribution. Depending on warehouse availability, they are supplied with black or gray legs and with blue or red motors.
