Honey extractor with container Mellarius OptiLine 5/10 manual P52

592,59 €

price without VAT: 489,74 €

Availability: in stock

SKU: M129

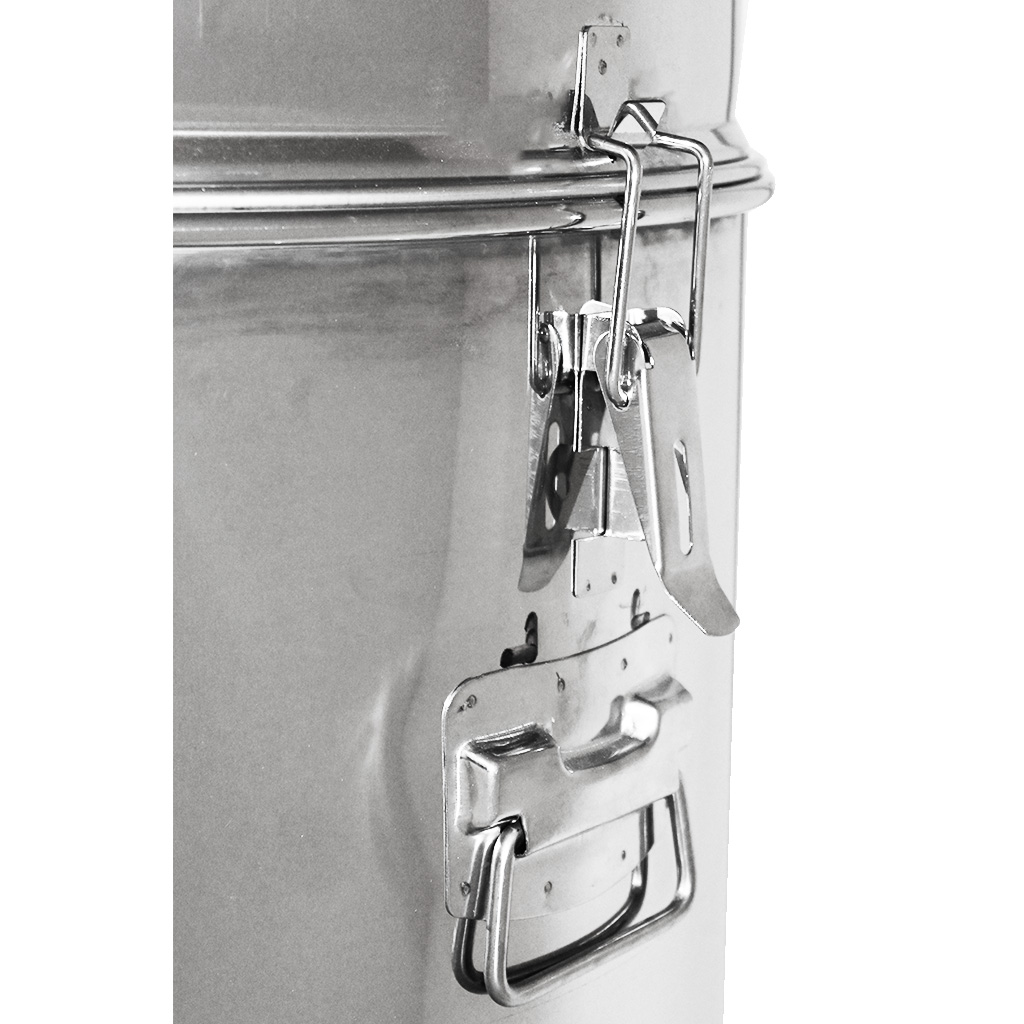

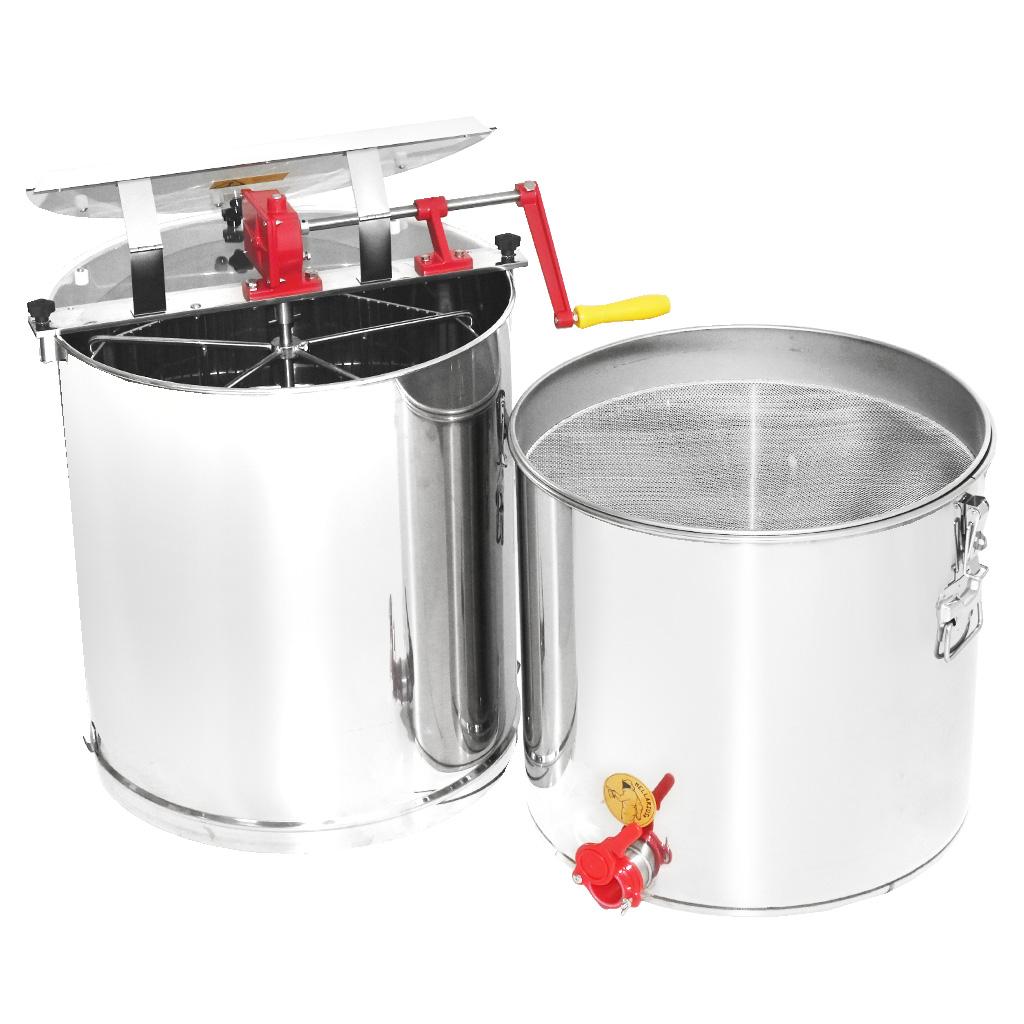

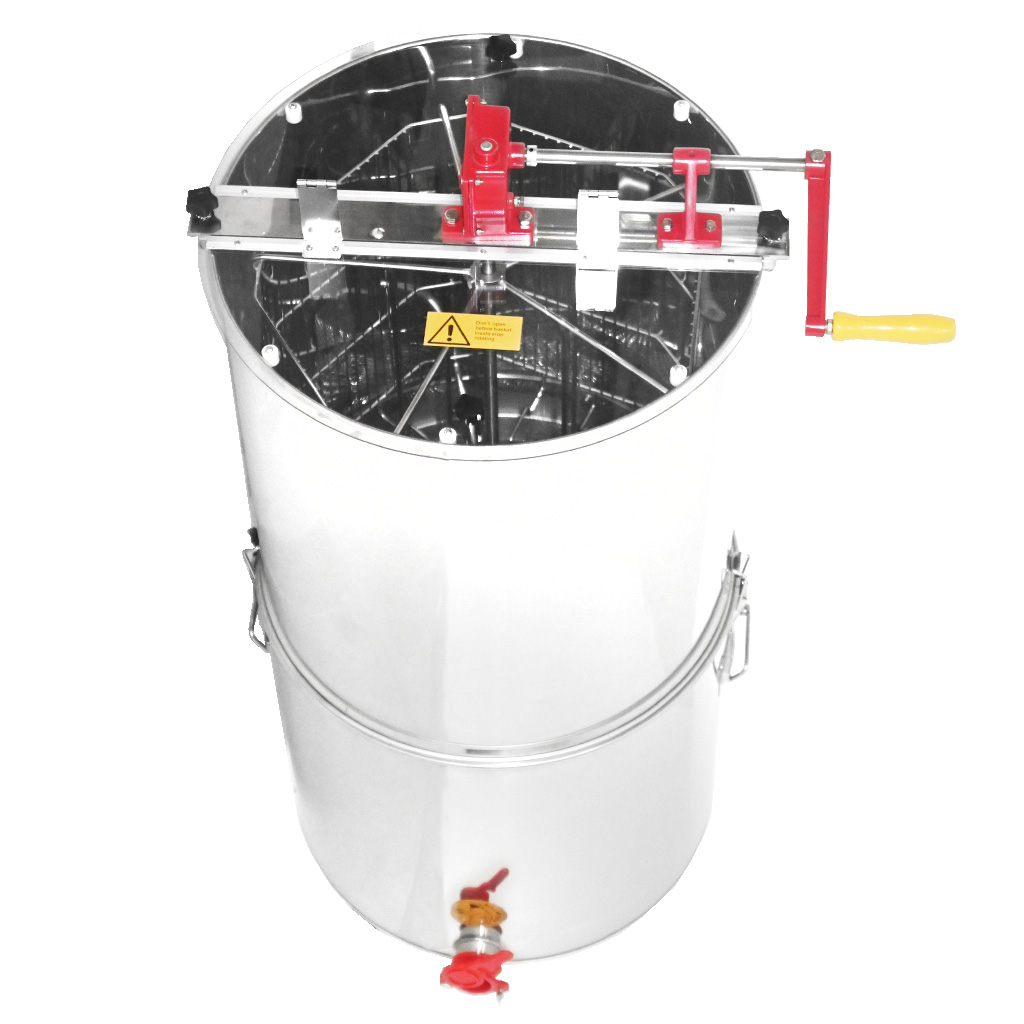

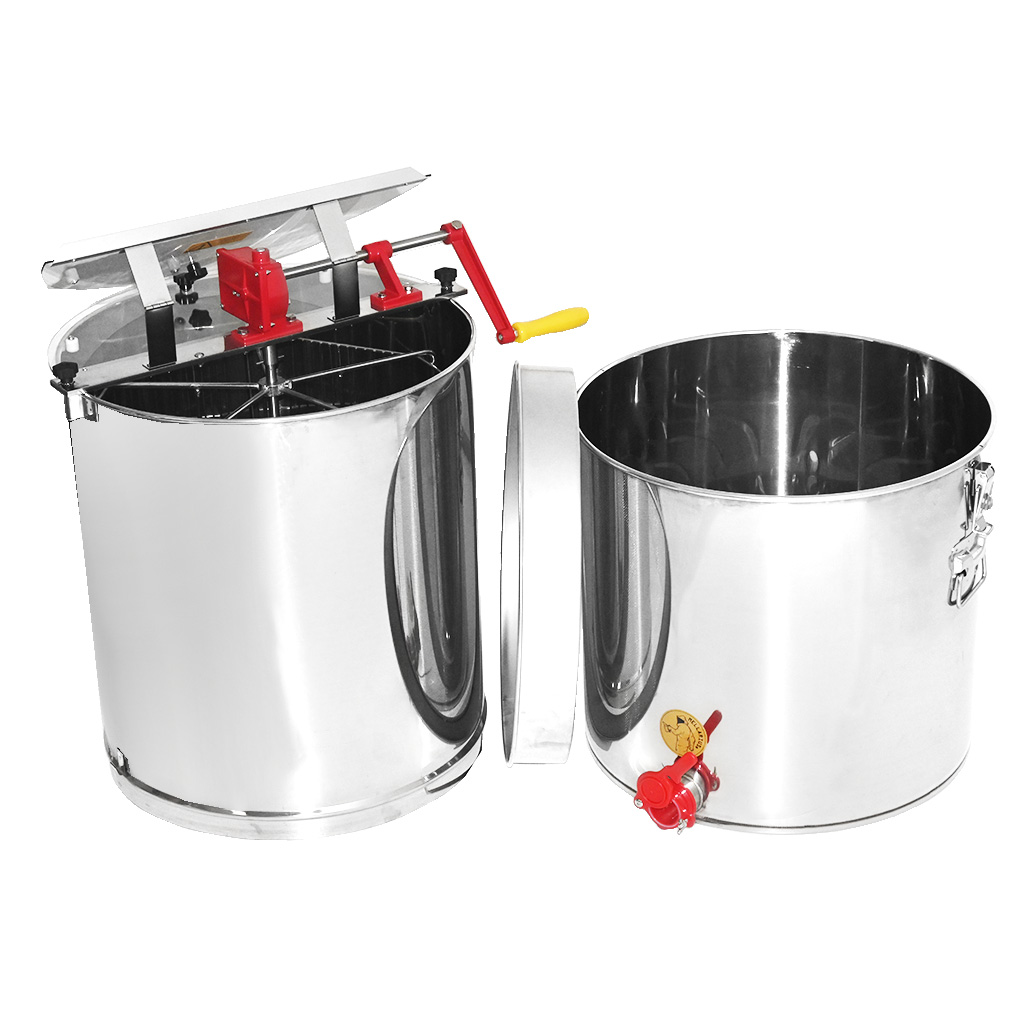

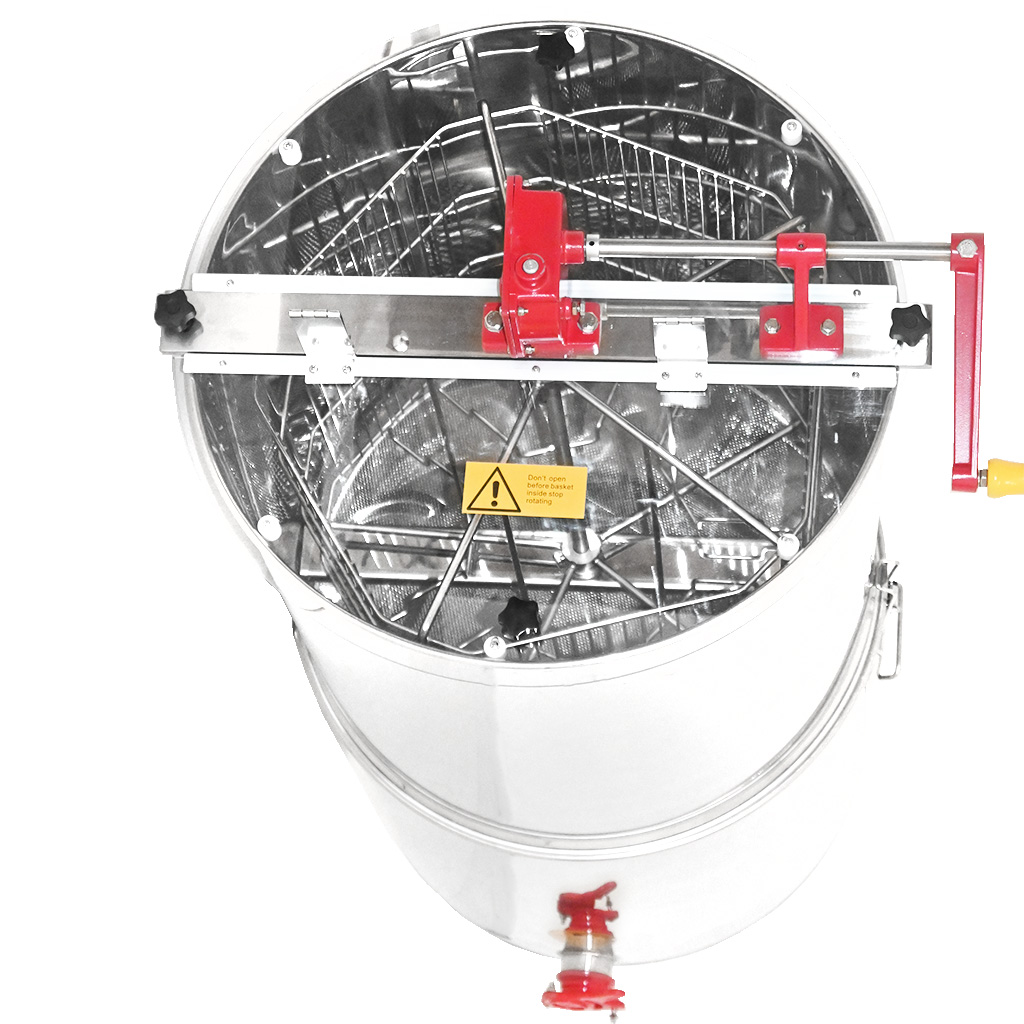

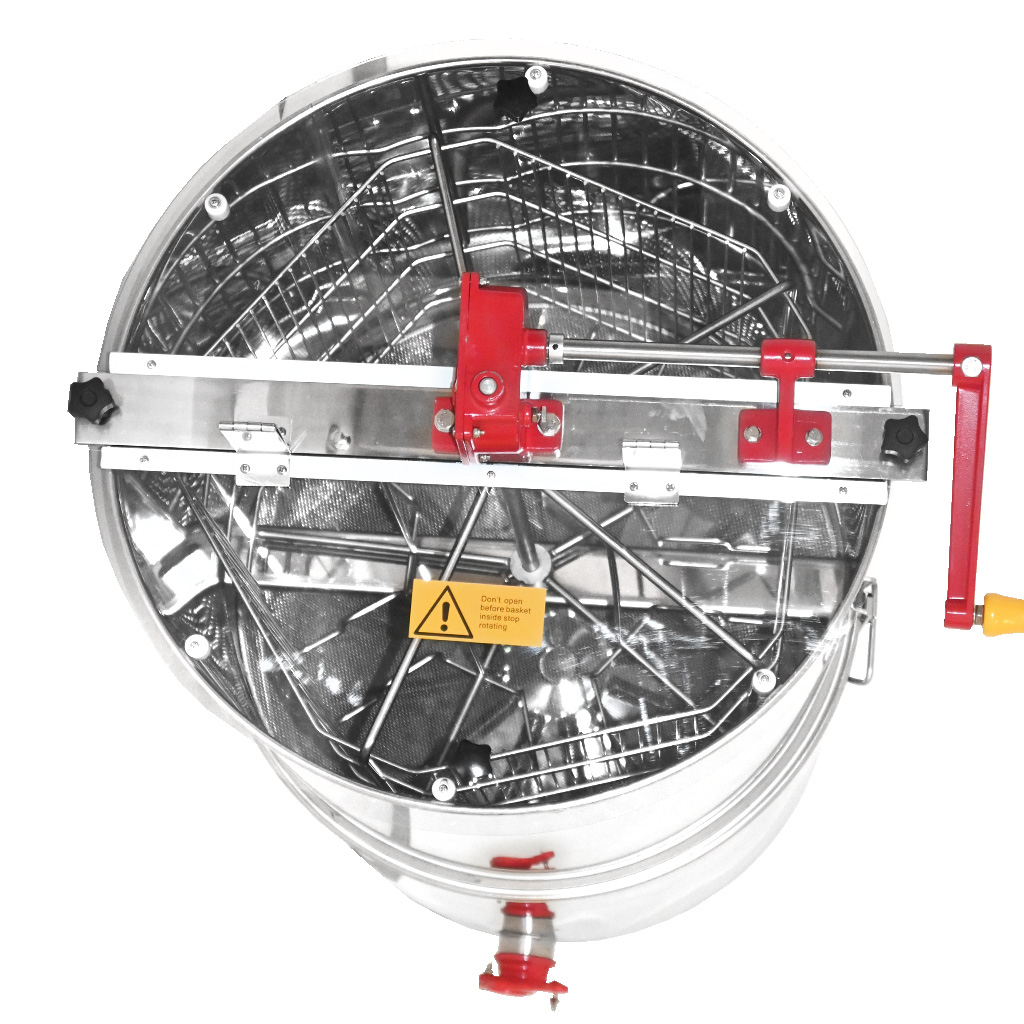

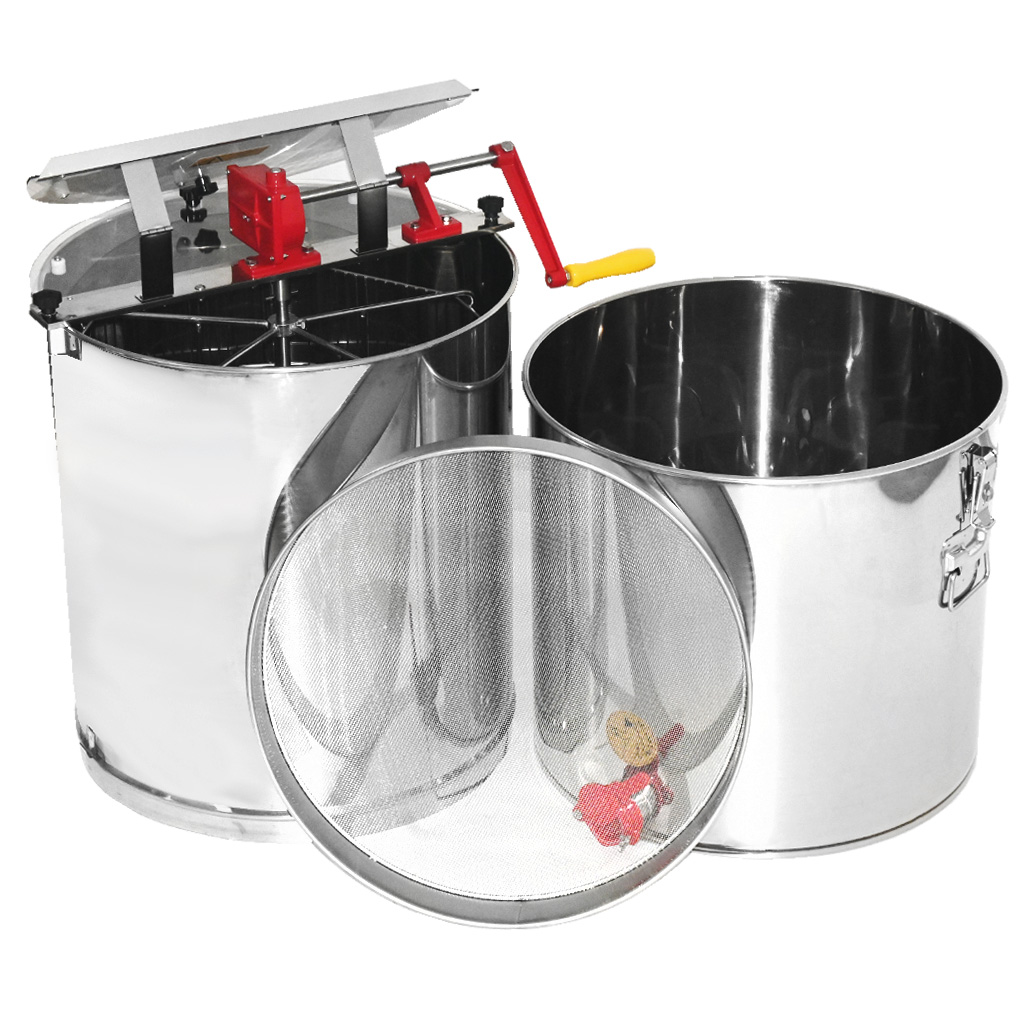

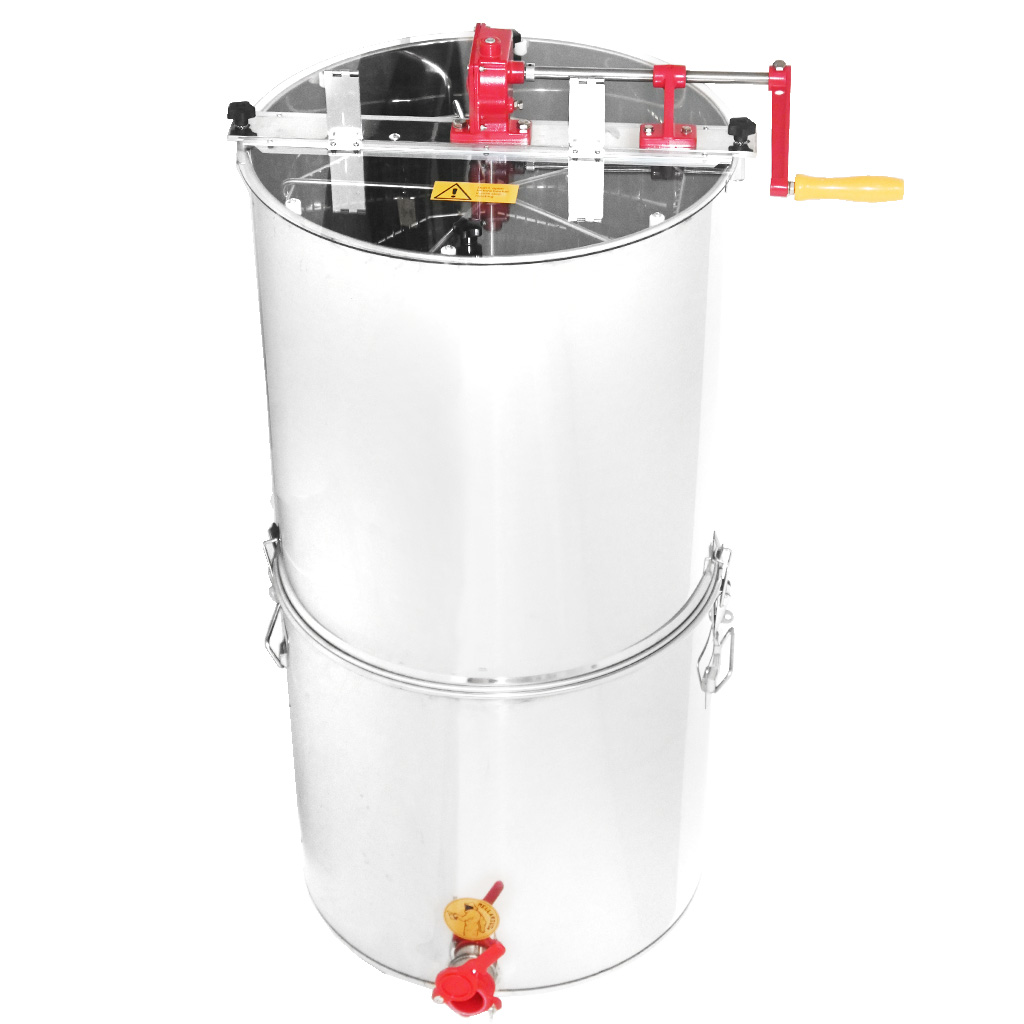

Tangential honey extractor for five frames (or radial for ten frames) with its own container and strainer. The extractor is firmly connected to the container using clamps. Between the extractor and container is a large strainer with a diameter of 52 cm. The basket width is 26 cm, so the extractor is suitable for most frames. The advantage of this solution is the integrated strainer and container, where in one device you get everything needed for extracting, straining, and collecting honey.

Description

Tangential honey extractor for five frames (or radial for ten frames) with its own container and strainer. The extractor is firmly connected to the container using clamps. Between the extractor and the container is a large strainer with a diameter of 52 cm. The basket width is 26 cm, so the extractor is suitable for most frames. The advantage of this solution is the integrated strainer and container, where in one device you get everything needed for extracting, straining, and bottling honey.

About Mellarius OptiLine honey extractors

Mellarius OptiLine honey extractors offer a full-featured honey extractor in high-quality design at a favorable price. These extractors are made from thicker stainless steel sheets (0.8 to 1 mm). A wide range of manual and electric extractors in tangential or radial variants.

Modern construction

Mellarius OptiLine series extractors have a modern construction, with the possibility of dismantling the legs. The extractor drums are made of food-grade stainless steel of sufficient thickness (0.8 to 1 mm), so that unwanted dents cannot easily occur. The entire construction of the extractors is manufactured using plasma welding. The design emphasizes smooth surfaces that can be easily cleaned.

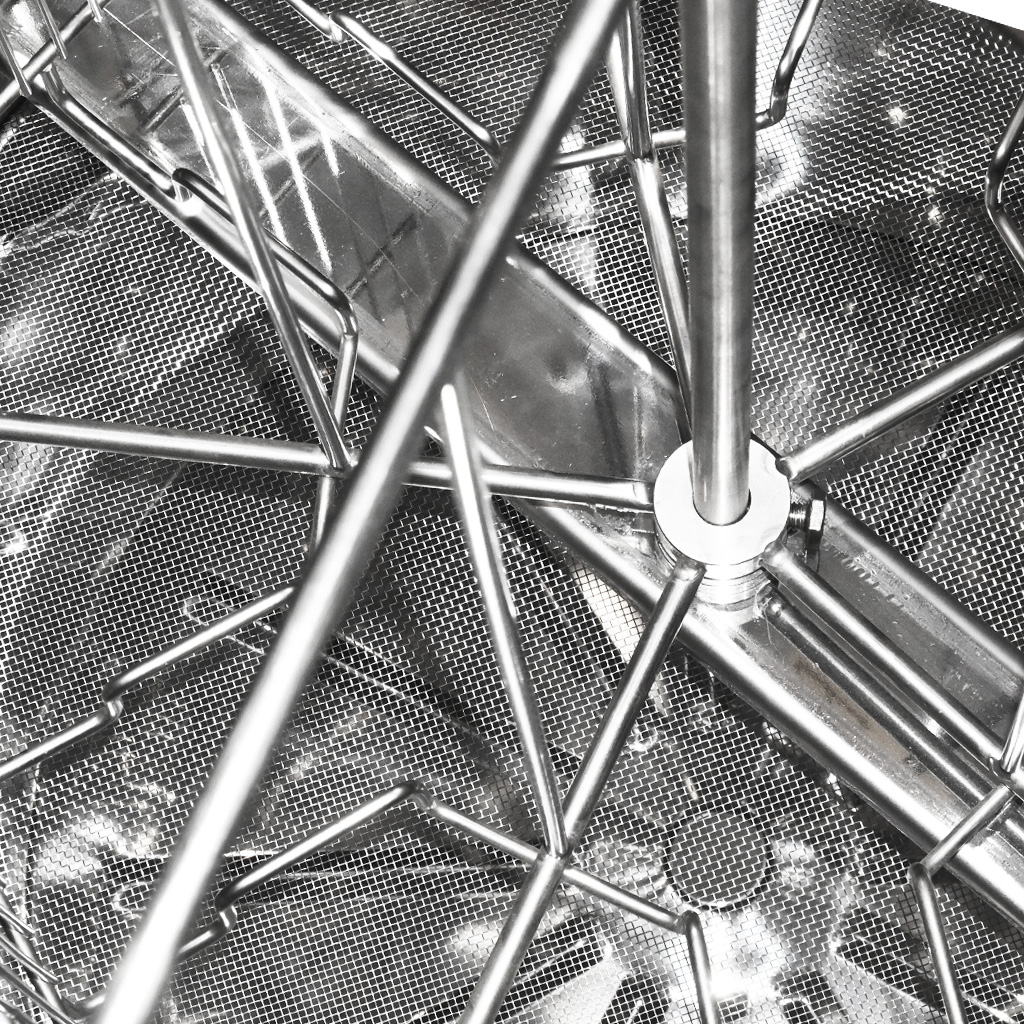

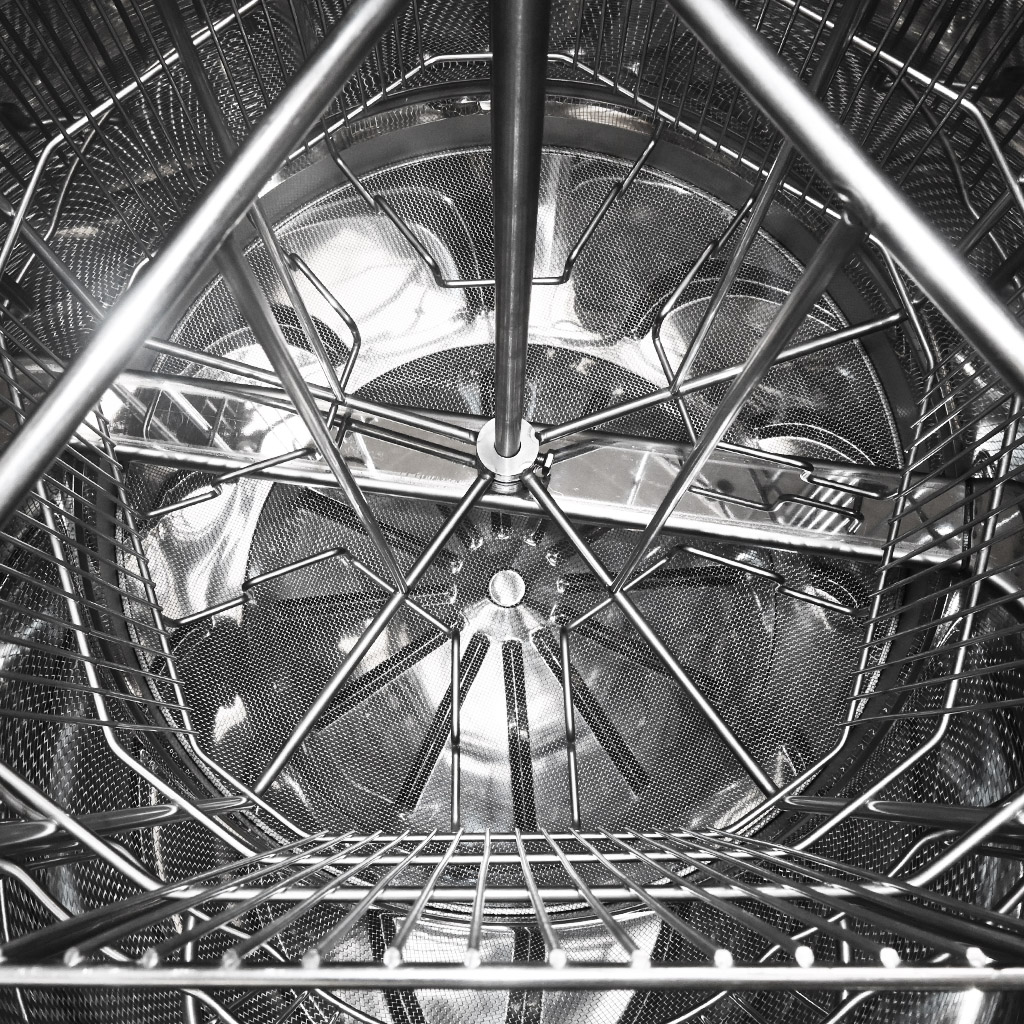

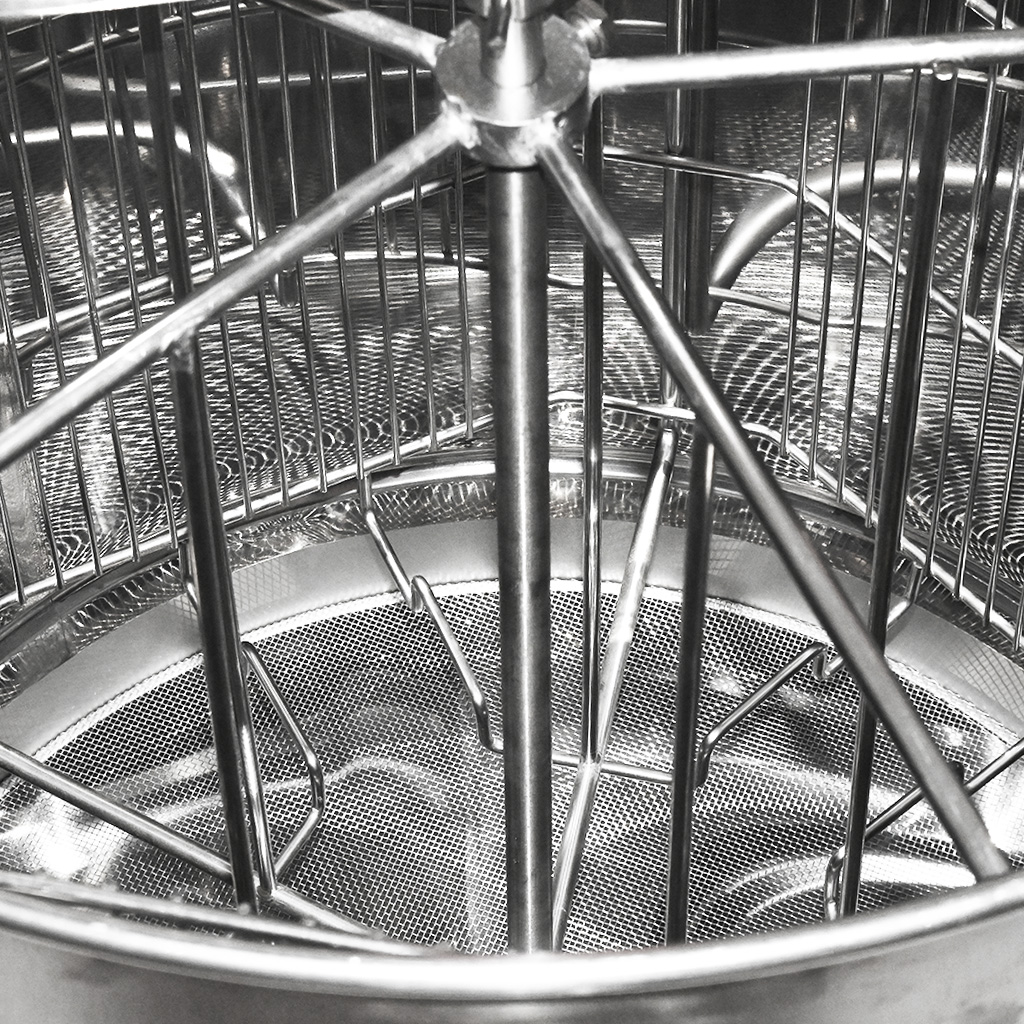

The extractor baskets are made with a denser network of stainless steel wires, which distributes the force on the honeycomb during extraction over a larger area, preventing the wires from cutting into the comb. Round bars resistant to twisting are used to make the baskets. Round surfaces without sharp edges are also easier to clean.

Easy disassembly

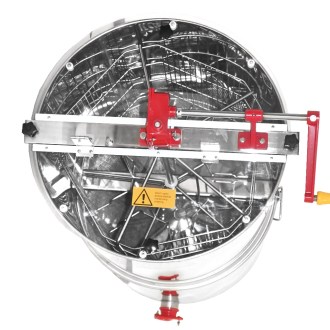

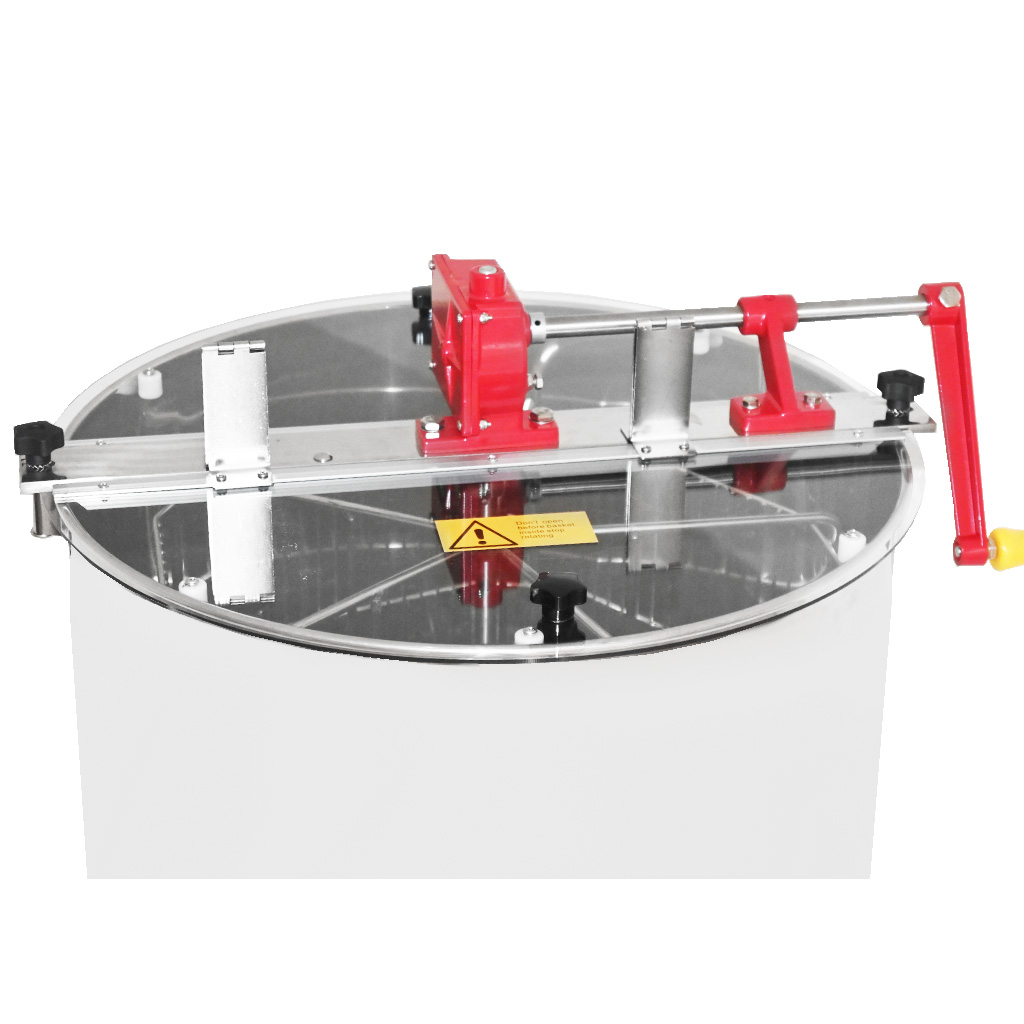

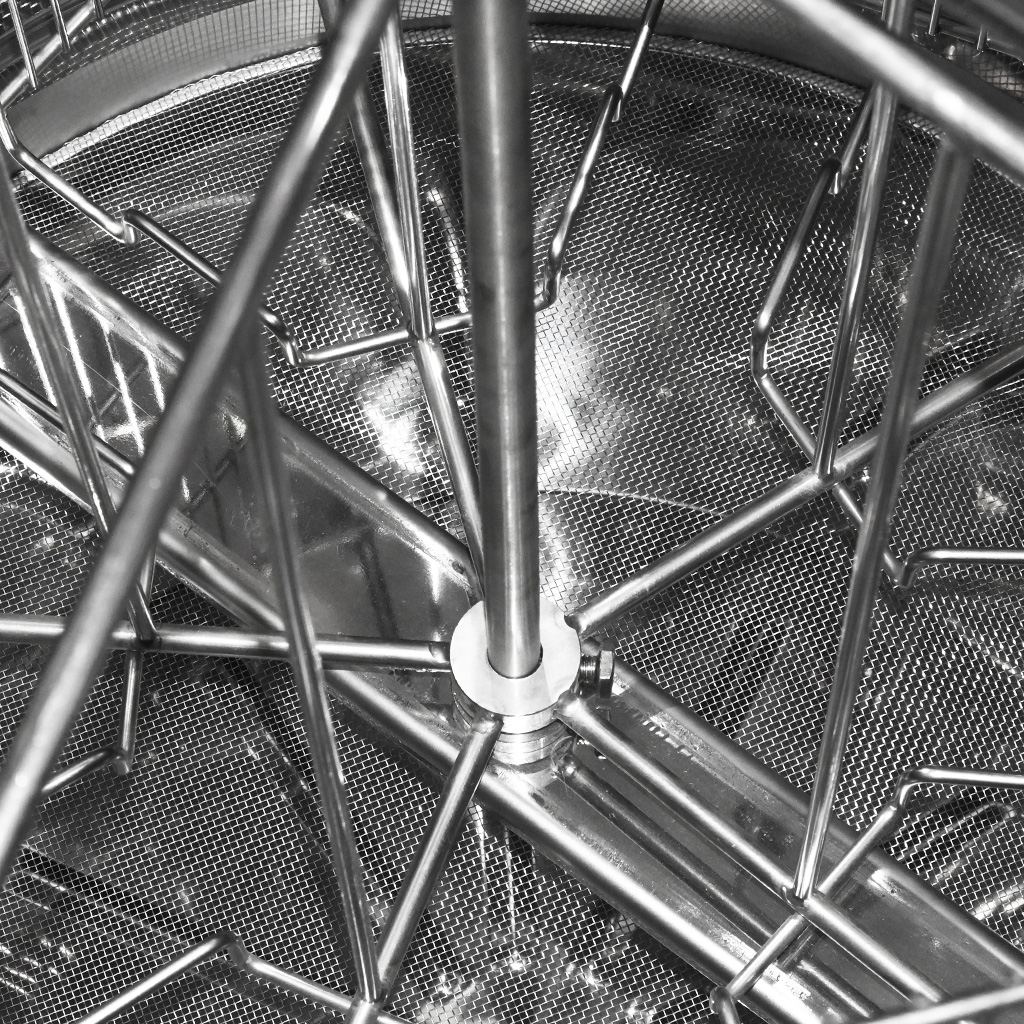

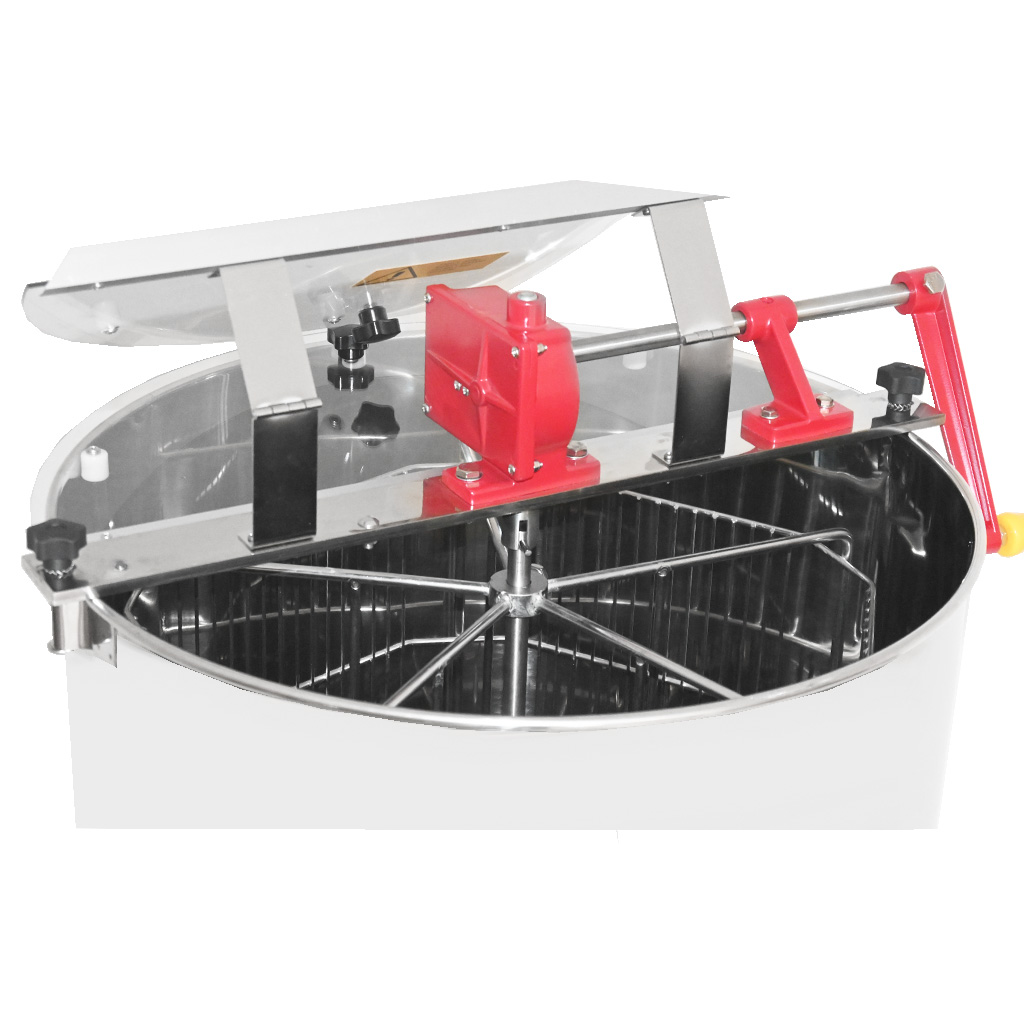

The drive system is always located in the upper part of the extractor, which provides the possibility of easy maintenance. Thanks to this solution, the extractor basket is freely placed on a ball bearing at the bottom. The drive is mounted on a clamping bar, which also has wide hinges for plexiglass covers. The clamping bar with the drive is sufficiently massive, again made of polished stainless material, for easy maintenance. After removing the upper bar with the drive, which is attached with two star screws, the entire drive can be easily removed. Just as easily, you can remove the entire basket from the extractor and can easily clean the entire extractor and basket separately.

Proven manual drive with brake

Quality manual drive with a gearbox, thanks to which great force is not necessary when turning. The handle is made of tough, massive material, which ensures strength and stability.

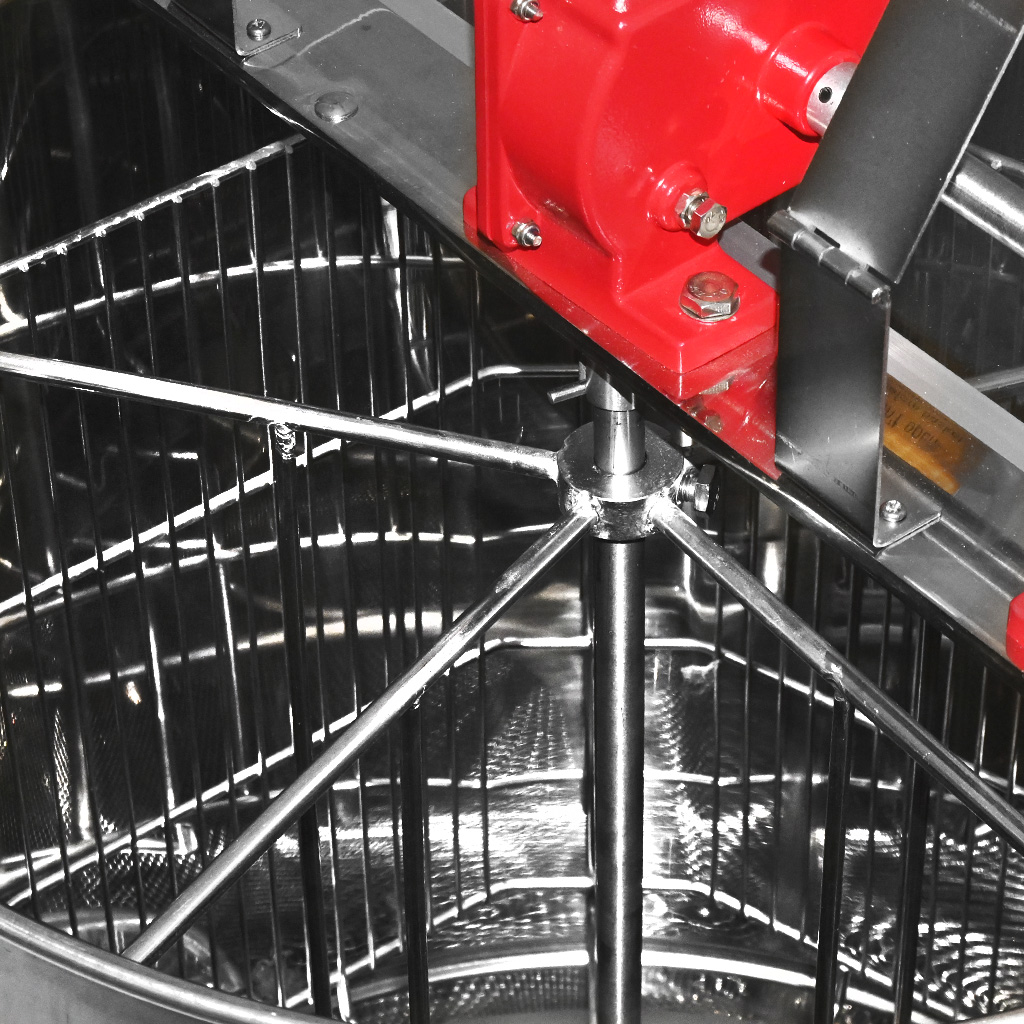

The force of the manual drive is transmitted to the extractor shaft using a gear system with a worm thread, which acts as a brake when changing speed. So with a simple backward movement, you can slow down or completely stop the basket.

The drive is equipped with a freewheel, so there is no risk of the handle spinning when in use. So if you release the handle, the worm gear immediately releases, and the handle stops rotating - always reliably and without any delay.
