Honey Extractor Mellarius MaxiLine 20 frames radial with 230V electric motor P64

Radial honey extractor for twenty frames with an electric drive 230 V with 110W power. The basket width is 25 cm, so the extractor is suitable for most frames. The extractor is made of polished stainless steel sheets, meeting food-grade certifications. Premium design with a conical bottom and many other innovative features.

About Mellarius MaxiLine honey extractors

The top range of our honey extractors. Mellarius MaxiLine extractor guarantees high quality and long lifespan. These extractors are made from thicker stainless steel sheets (0.8 to 1 mm) and are equipped with massive legs that increase the extractor's stability. Each Mellarius extractor in the MaxiLine version is equipped with a sloped bottom, thanks to which honey conveniently flows to the drain valve. It is not necessary to tilt them or manipulate them further. A wide range of manual and electric extractors in tangential or radial variants.

Modern construction

Mellarius MaxiLine extractors have a modern construction, with the possibility of leg disassembly. The extractor drums are made of food-grade stainless steel of sufficient thickness (0.8 to 1 mm) to prevent unwanted dents. The entire construction of the extractors is manufactured using plasma welding. The design emphasizes smooth surfaces that are easy to clean.

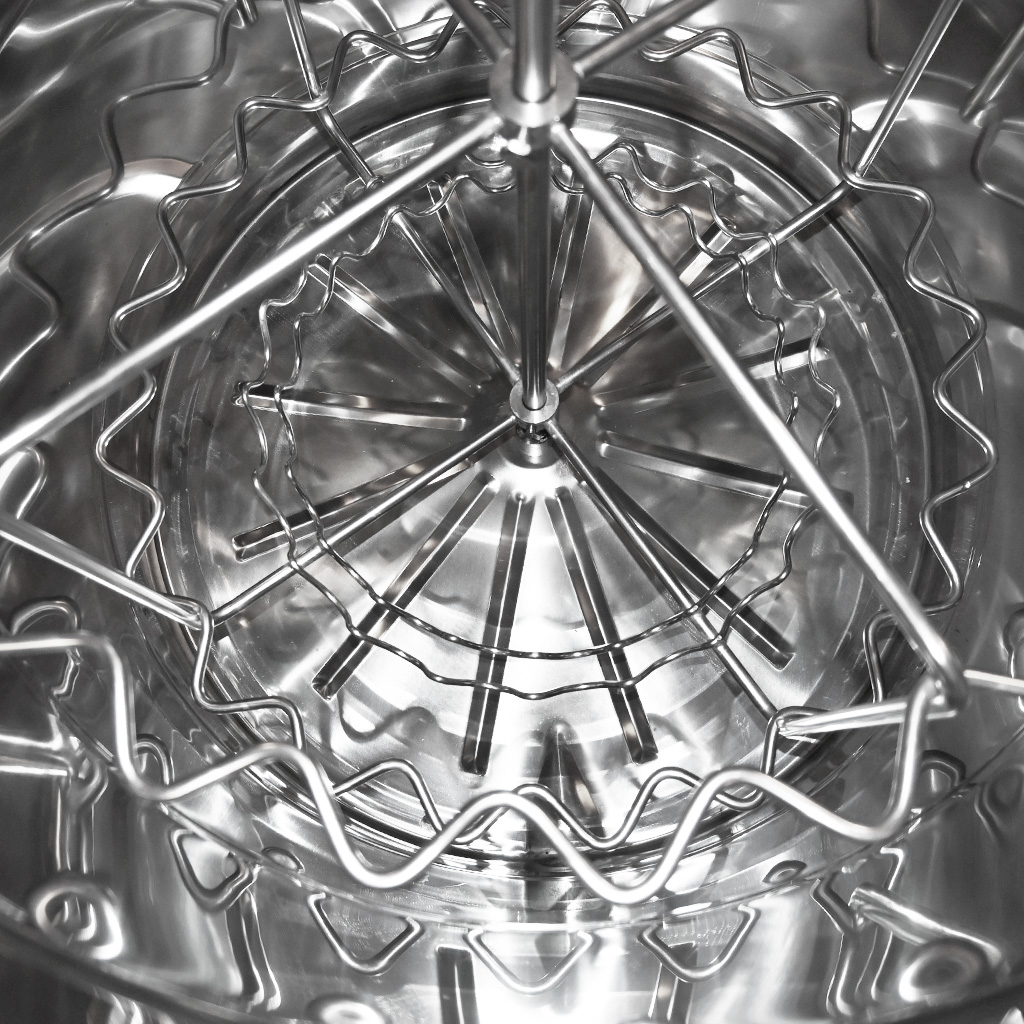

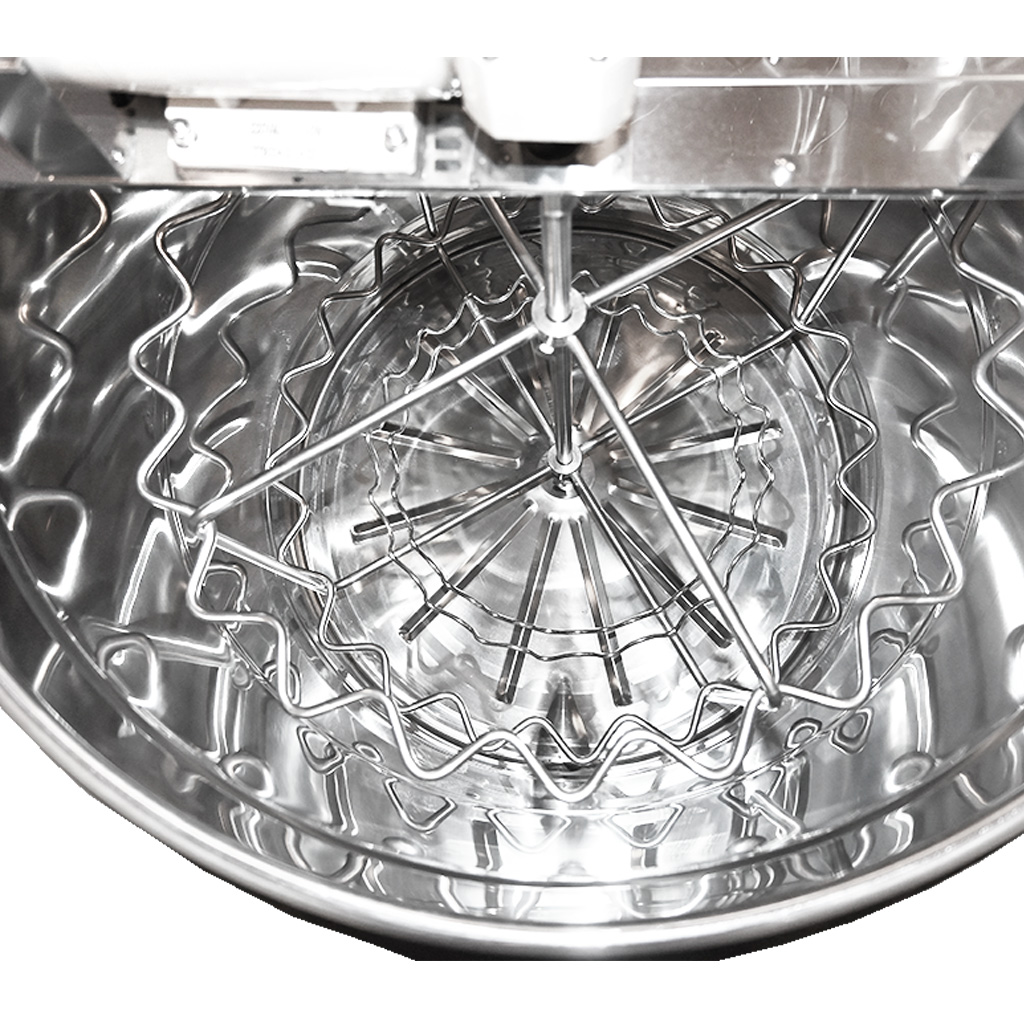

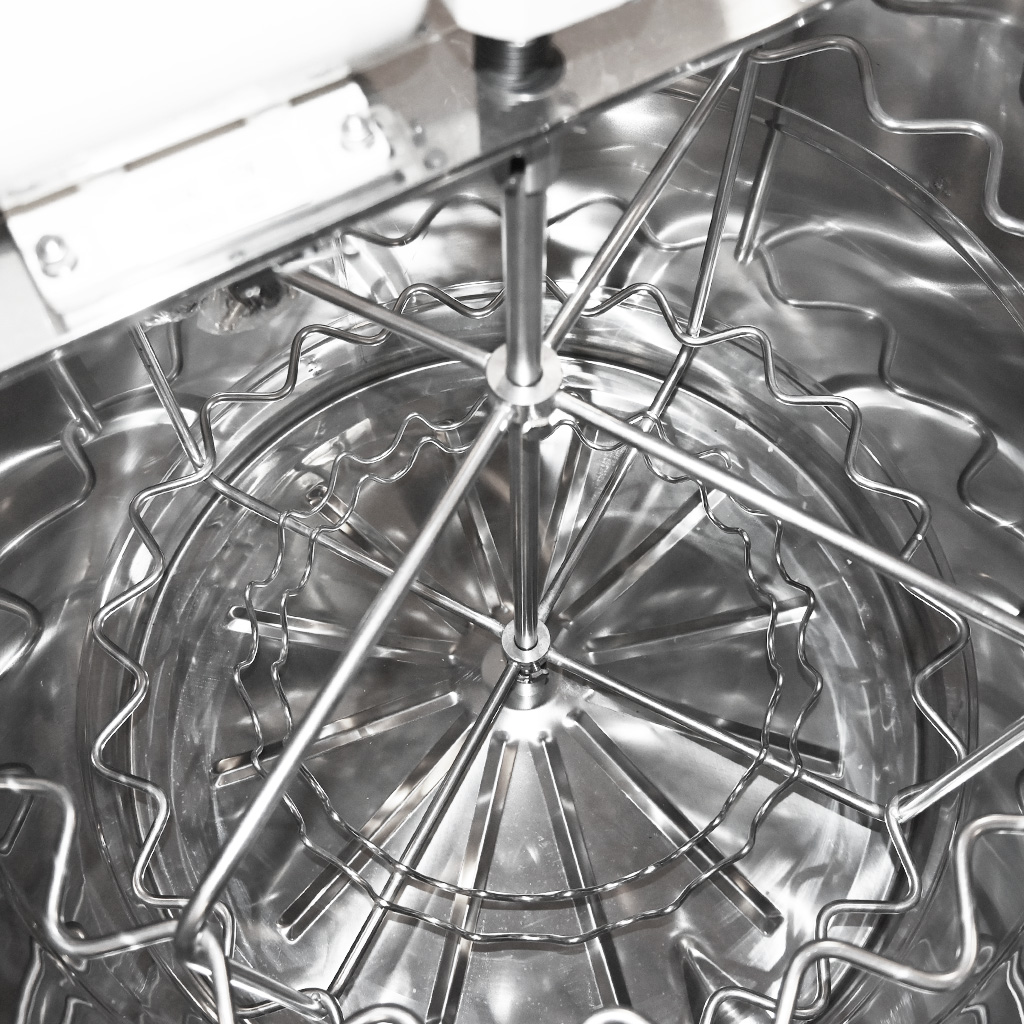

The extractor baskets are made with a denser network of stainless steel wires, which distributes the force on the honeycomb during extraction over a larger area, preventing the wires from cutting into the beeswax. Circular rods resistant to twisting are used to make the baskets. Circular surfaces without sharp edges are also easier to clean.

The extractors are equipped with an innovative conical bottom, with a welded stainless steel valve with a shear closure recessed into its lowest part. This ensures that all honey will flow out of the extractor completely without any residue.

The leg system is also innovative, positioned and attached to the extractor to achieve maximum stability. The legs are made of massive material and contribute to stability during extraction with their own weight. Thanks to a simple but firm connection, the legs can be easily removed, making the entire extractor much more compact for safe storage until the next use.

Easy disassembly

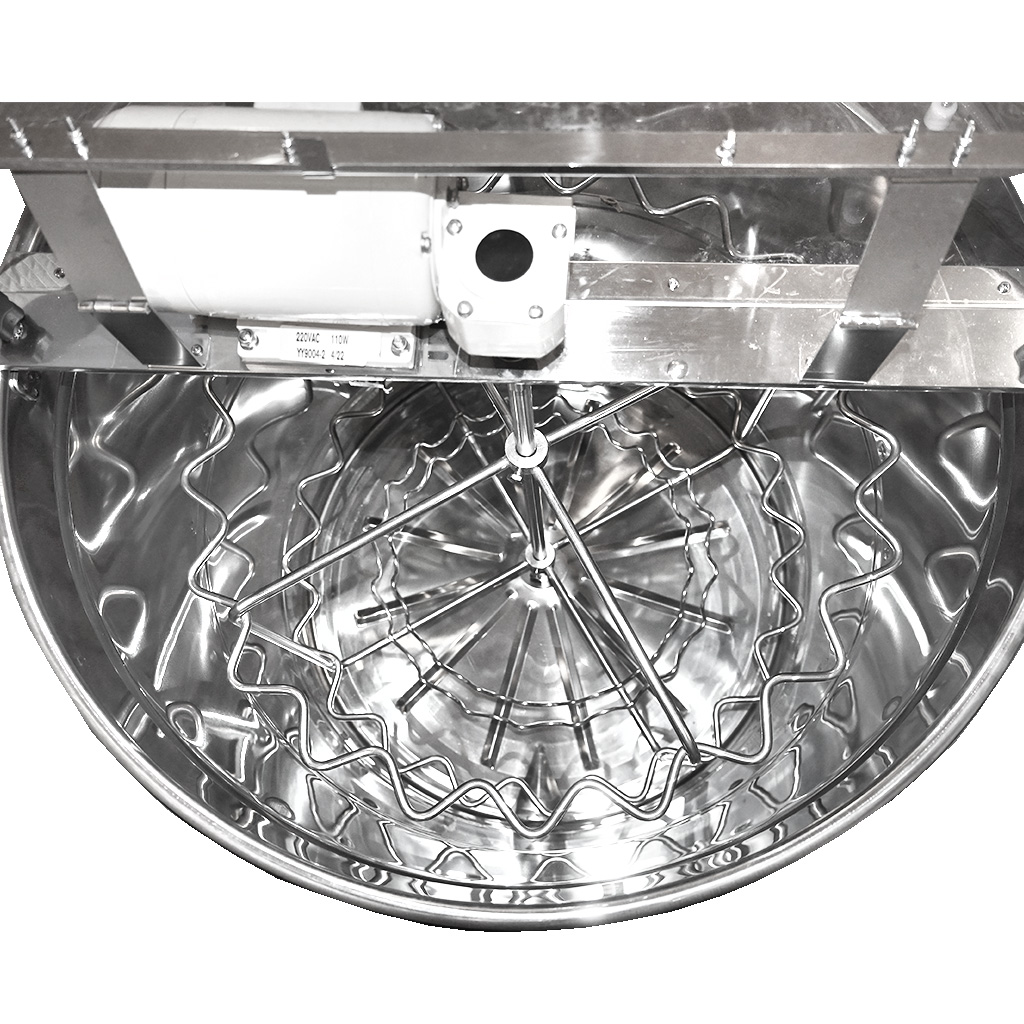

The drive system is always located in the upper part of the extractor, which provides easy maintenance. Thanks to this solution, the extractor basket is freely placed on a ball bearing in the lower part. The drive is mounted on a clamping bar, which also has wide hinges for plexiglass covers. The clamping bar with the drive is sufficiently massive, again made of polished stainless steel for easy maintenance. After removing the upper bar with the drive, which is attached by two star screws, the entire drive can be easily removed. You can also easily remove the entire basket from the extractor and clean both the extractor and basket separately.

Proven drive with speed control

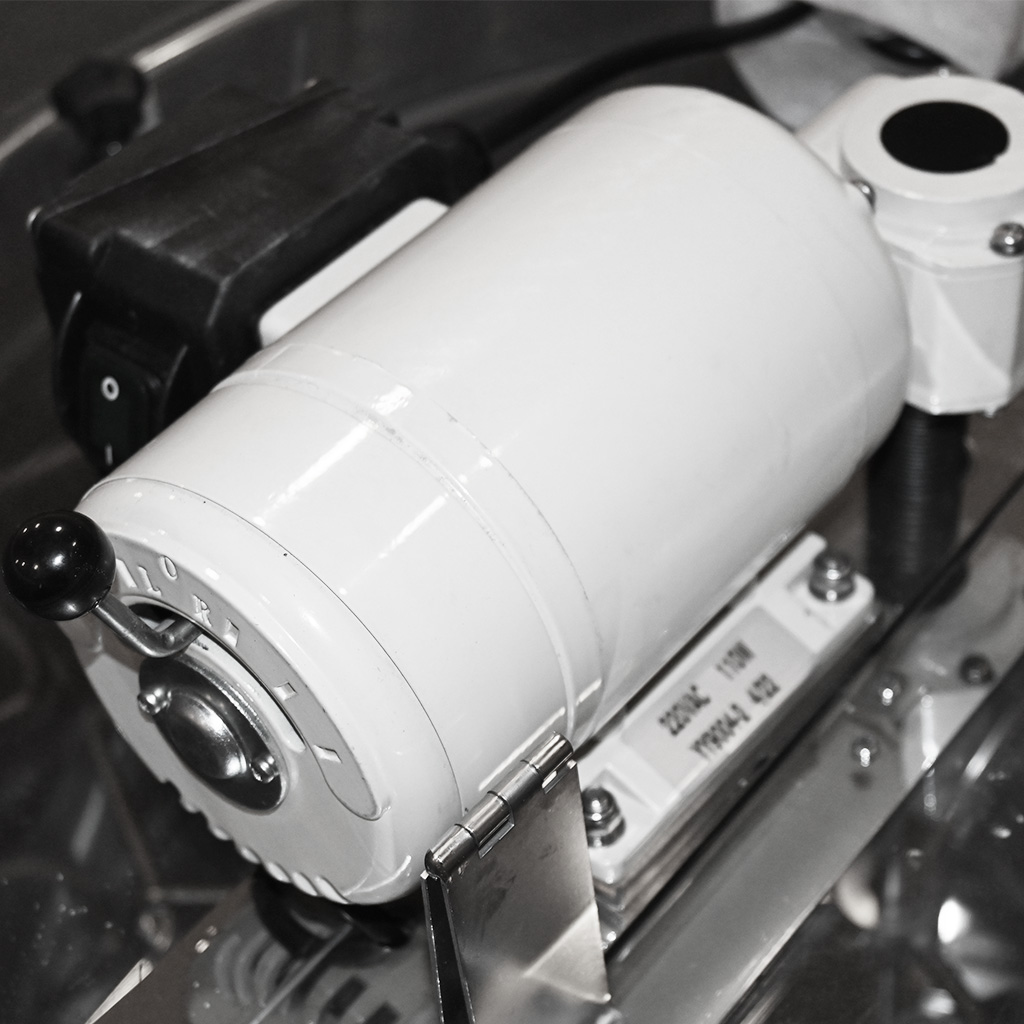

Maxima series extractors are equipped with a reliable electric motor with sufficient power of 110 W. These motors are equipped with their own fan for better cooling. The motor includes a robust manual system for continuous speed regulation. The transfer of motor power to the extractor basket is ensured by a mechanical gearbox for an optimal range of extraction speeds.

The motor allows for speed change and thus changing the direction of rotation of the entire basket, which increases comfort during extraction. Bees tend to build cells at a slight upward angle (4° to 5°) - so that the stored honey doesn't flow out, plus honey stored this way ensures certain stability of the comb. For beekeepers, this has a disadvantage because when the honeycomb is placed in the extractor, the cells point in one direction, and if this direction is against the direction of rotation, then the honey flows out poorly and some honey reserves may remain in the combs. Therefore, it is advantageous to have an extractor with the possibility of bidirectional extraction.

Technical parameters of the extractor

• Basket width: 25x48 cm
• Basket type: radial with shaft
• Height of the extractor when assembled: 104 cm
• Height of the extractor including drive: 120 cm
• Height of the valve from the ground: 38 cm
• Outer diameter of the drum: 64 cm
• Motor: 110W
• Regulation: continuous, manual
• Direction of rotation: both

Main advantages of the extractor

• Conical bottom with recessed valve – all honey always flows out.
• Quality stainless steel materials with polished surface.
• The baskets used have a dense grid – does not damage bee combs.
• Simple leg disassembly system – easy storage.
• Easy dismantling of the drive and extractor basket – comfortable cleaning.
• Quality electric motor 110 W


The extractors are from official German distribution. According to warehouse specifications, they are supplied with black or gray legs. The 110W motor is supplied in blue, red, or white design.
