Honey extractor Lysoň BASIC 6 frames, reversible. Langstroth - 230V - P80
On order
We present the 6-frame BASIC honey extractor designed for efficient extraction of honey from frames. This model is an indispensable helper for beekeepers who desire a reliable device with high capacity.

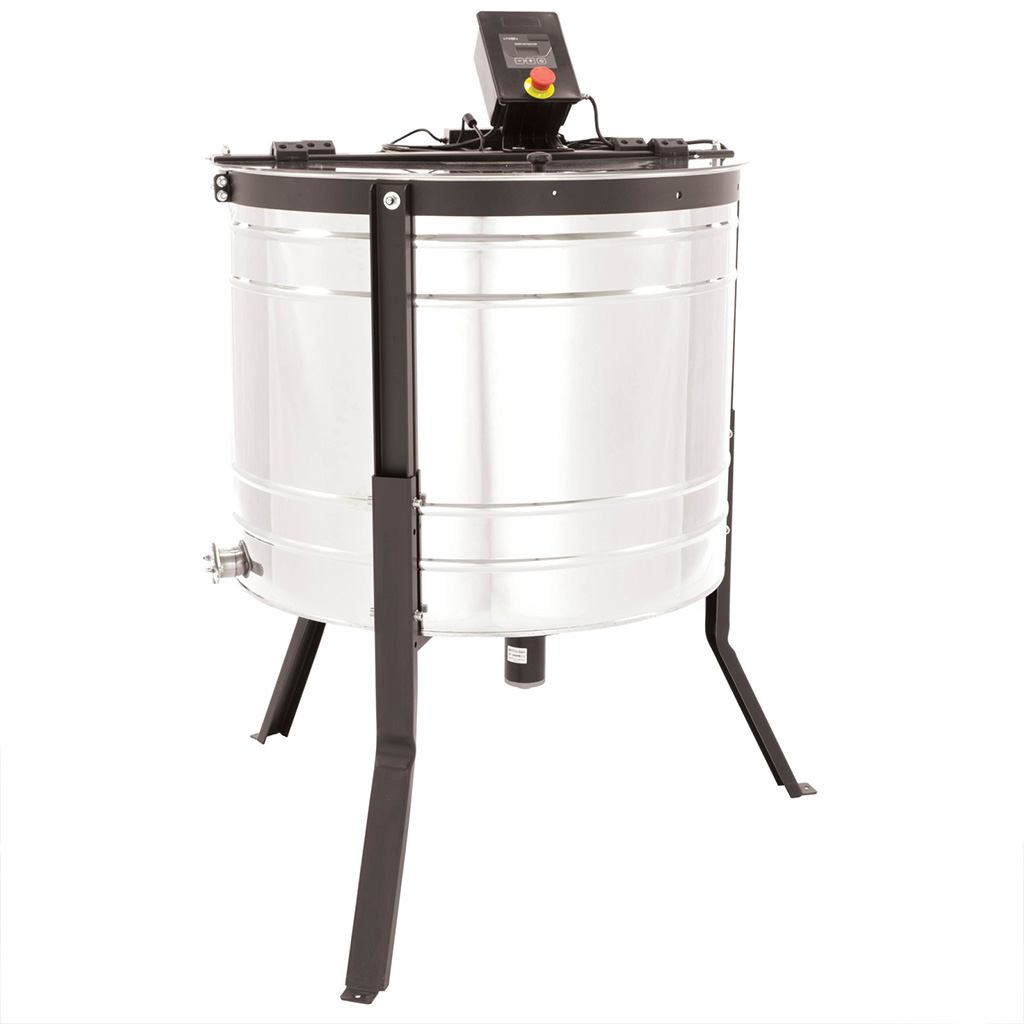

Honey Extractor Lysoň BASIC 6-Frame Reversible, Langstroth – 230 V – P80
This 6-frame reversible honey extractor from the BASIC line is designed for fast and gentle honey extraction from Langstroth frames. It is ideal for beekeepers who want to get more work done in less time during the honey harvest while having the assurance of a stable, hygienic, and easy-to-maintain piece of equipment. The electric drive ensures smooth operation, and the robust stainless steel construction provides long service life, high durability, and convenient cleaning after each extraction.
Making Beekeeping Work Easier

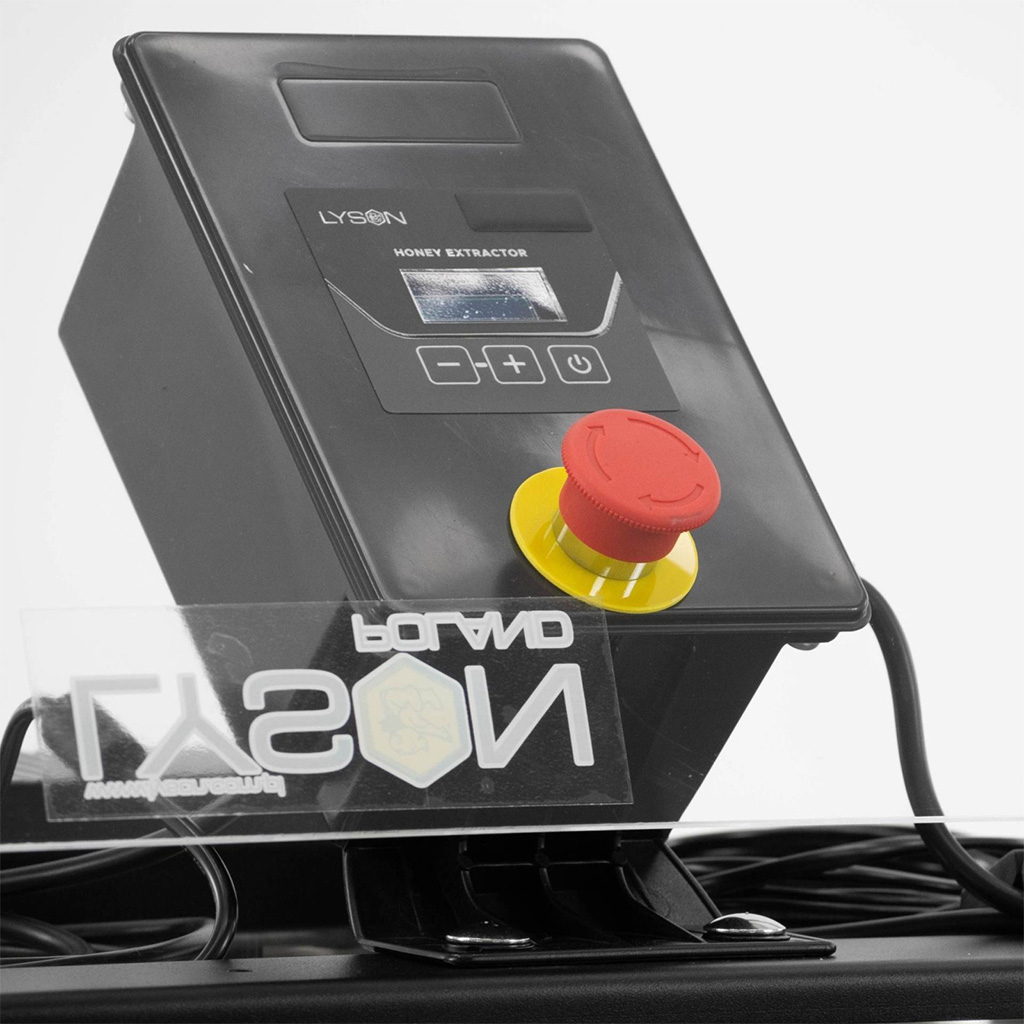

When extracting honey, not only speed but also safety matters. The extractor is equipped with a safety switch that immediately stops the basket when the lid is opened. The lid is made of high-quality 4mm Plexiglas, so you can monitor the extraction process at all times. Operation is managed by the HE-01V control unit – featuring 2 manual programs and 9 automatic cycles, allowing you to let the extractor run while you uncap the next combs. Another practical detail is the tapered drum bottom, which facilitates smooth honey flow directly toward the stainless steel honey gate and minimizes losses.
Stable Construction, Well-Thought-Out Details, and Easy Assembly

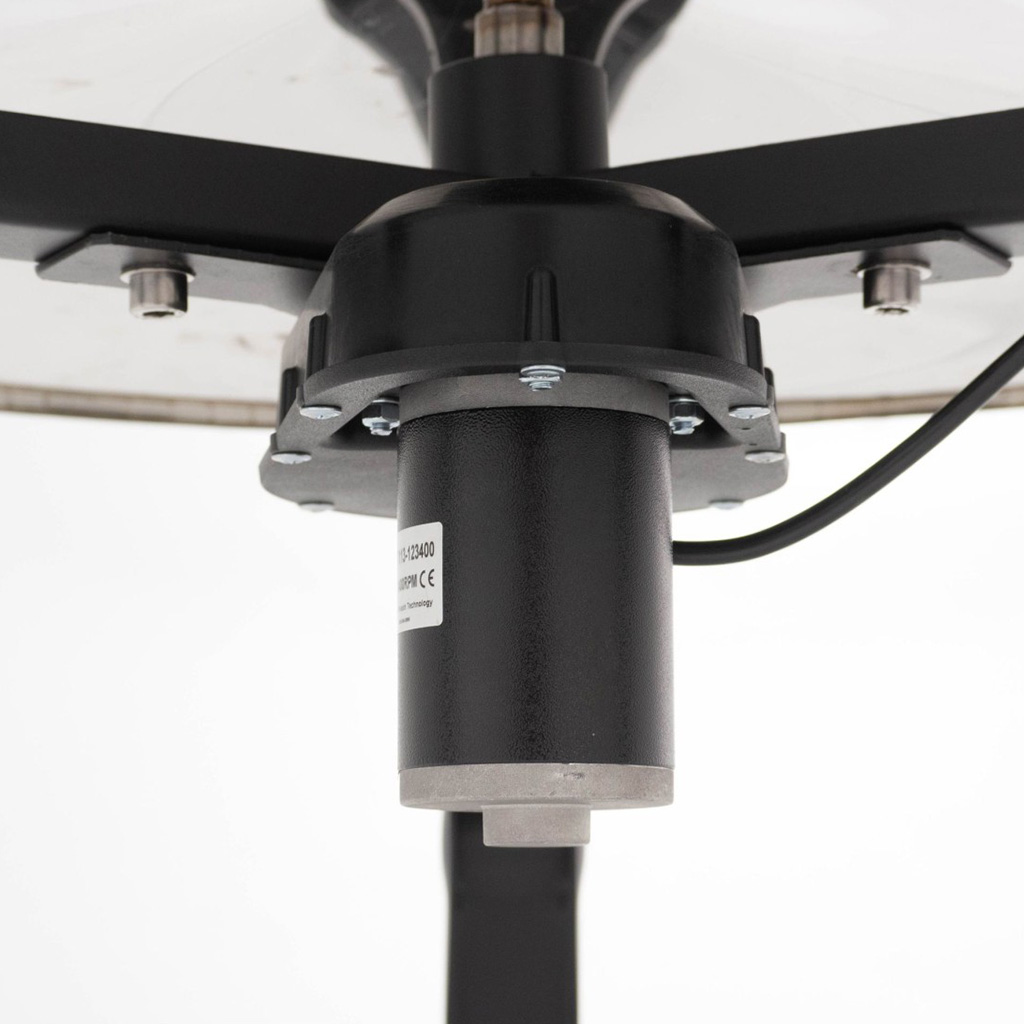

Operational stability is ensured by the clever motor mounting on the lower cross beam – even under full frame load, the extractor runs smoothly and steadily. The two-piece legs allow mounting at two heights, so you can easily set a practical working position: the bottom edge of the honey gate can be either 370 mm or 410 mm above the ground. This means most bottling tanks and strainers fit comfortably underneath the gate. The extractor is delivered disassembled in a cardboard box – for safer transport and storage. Assembly is intuitive and can be done without any special tools.
Technical Parameters and Specifications
| Device type | 6-frame honey extractor, reversible, electric (BASIC line) |
| Compatible frames | 6× Langstroth |

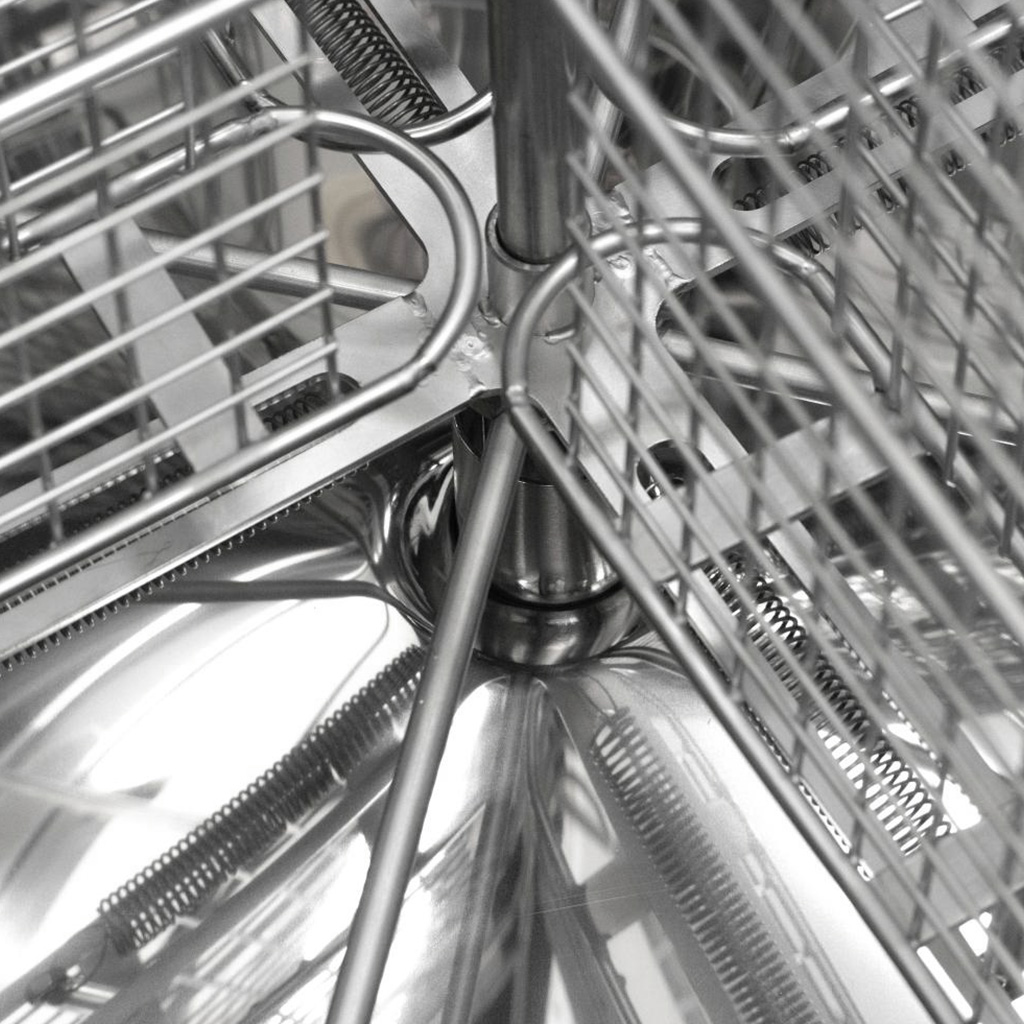

| Cage size | 425 × 250 mm (stainless steel rod Ø 2 and Ø 5 mm) |
| Drum dimensions | Diameter Ø 800 mm, drum height 740 mm |
| Drum material and sheet thickness | Stainless steel, thickness 0.6 mm |
| Drive and motor | Electric bottom drive, motor 12 V / 150 W |
| Mains power supply | 230 V |
| Control unit | HE-01V (digital potentiometer) |
| Honey gate | Stainless steel, size 6/4" |
| Construction details | Powder-coated two-piece legs and top bar, plastic hinges (4 pcs) |
If you are looking for an affordable, space-saving, and easy-to-maintain honey extractor for Langstroth frames, the BASIC model is a reliable choice. Thanks to its quality craftsmanship, automatic programs, and 2-year warranty, you get a piece of equipment that will significantly save you time and effort during the season and take the comfort of working in your apiary to the next level.
