Auger conveyor 230V for uncapping machines

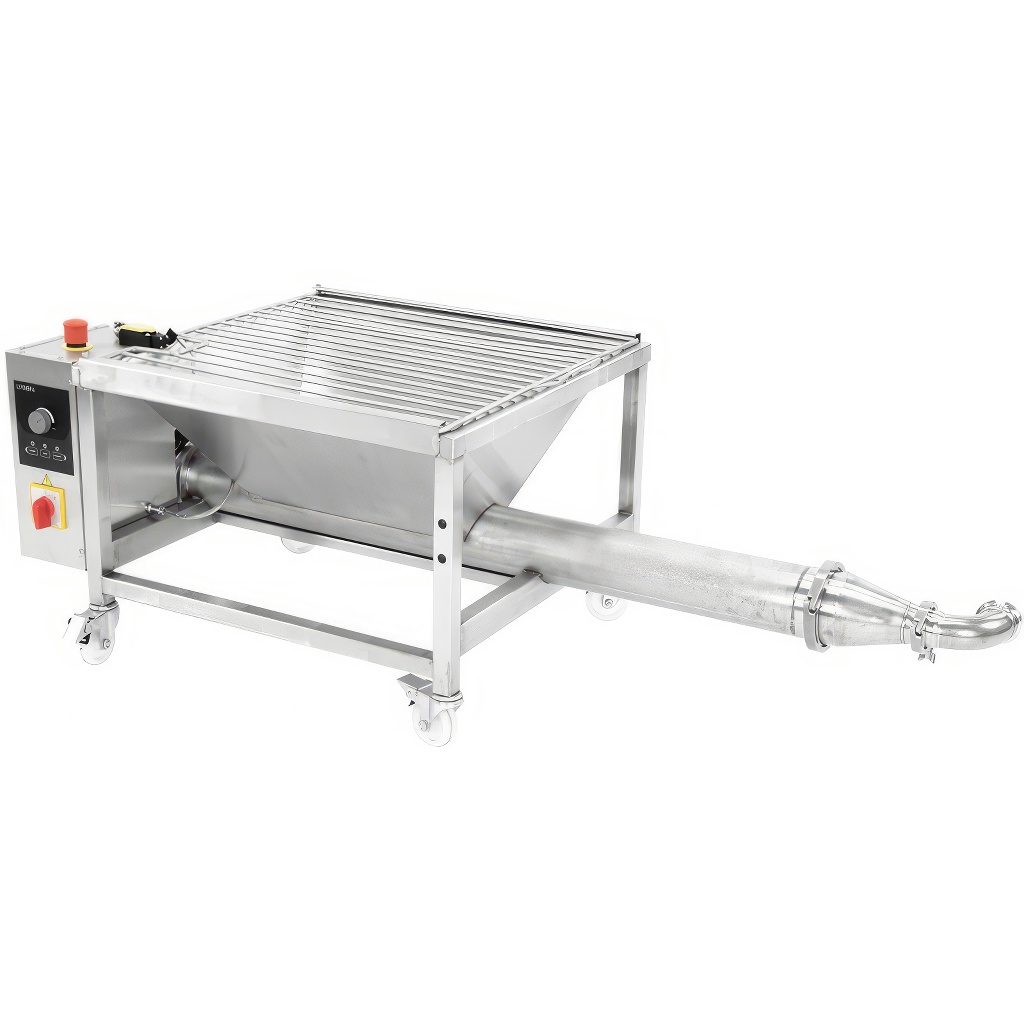

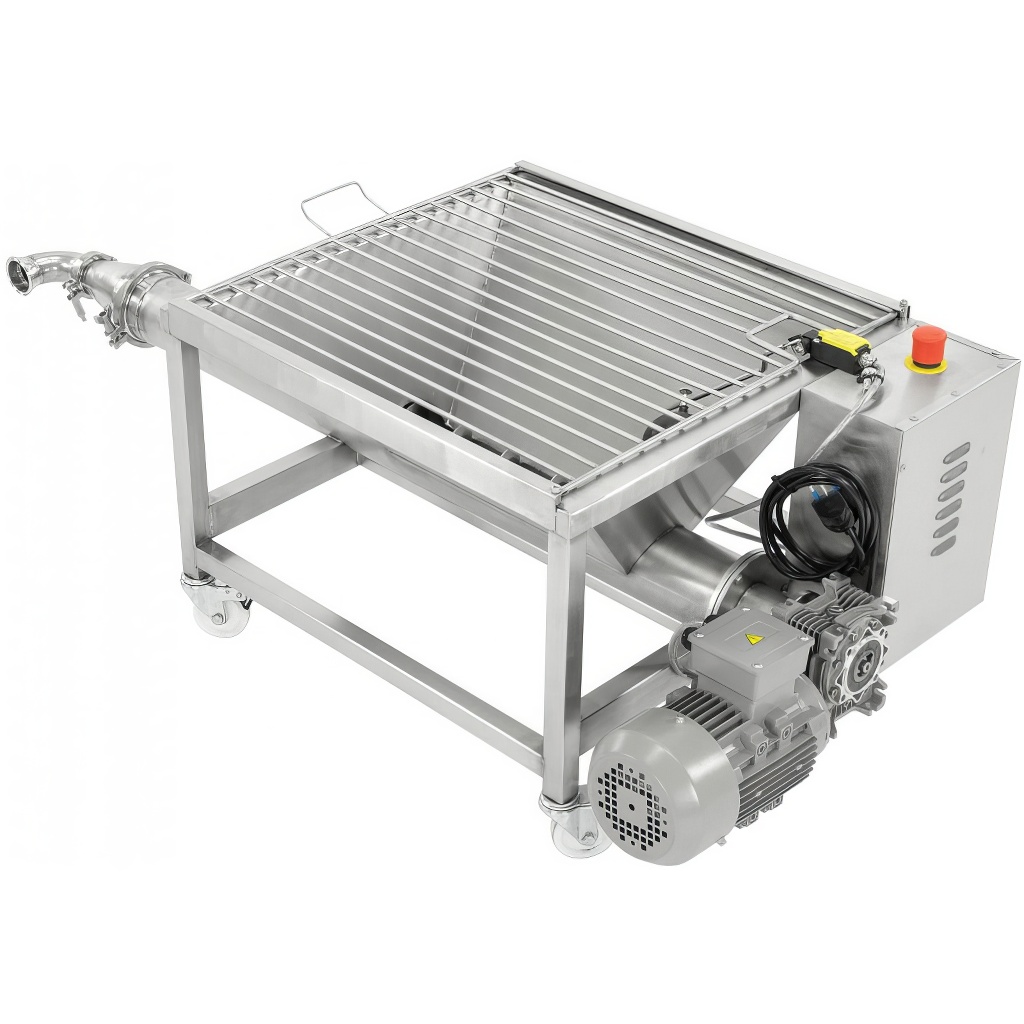

Auger Conveyor 230V for Uncapping Machines Minima, Classic or Premium Line with 1500 mm Frame

For owners of Minima, Classic or Premium Line uncapping tables with a 1500 mm frame, the device with the note "_OPTION" (W20971_230_OPTION) is intended.

Thanks to its solid construction made of high-quality stainless steel and advanced functions, this conveyor ensures reliability and precision in the transfer of cappings. This device will certainly meet the expectations of even the most demanding beekeepers and will become one of the favorite equipment in the workshop.

Usage:
The auger conveyor is a very useful device in beekeeping. It enables efficient and hygienic transfer of cappings from the uncapping device.

For owners of Minima, Classic or Premium Line uncapping tables with a 1500 mm frame, the device with the note "_OPTION" (W20971_230_OPTION) is intended.

Technical specifications:
The transporter is made of stainless steel class 1.4301 (AISI 304), which guarantees durability and hygiene.

Channel dimensions:
Length: 670 mm
Width: 540 mm

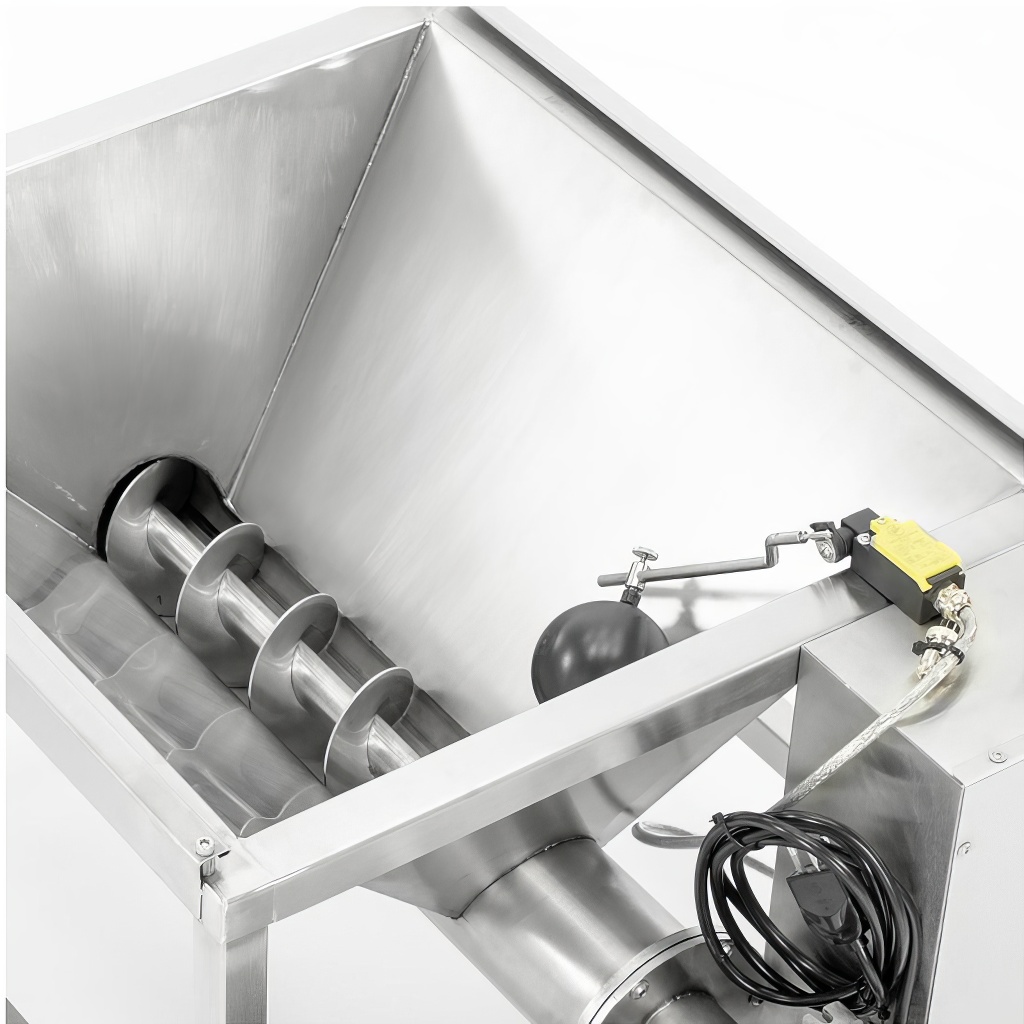

Auger diameter: 95 mm, ensures smooth flow of cappings.
Output opening with TC50 connector.
Continuously adjustable auger speed up to MAX-140 rotations per minute, which allows you to adapt the transport speed to your production needs.
Float switch for controlling the level of cappings in the tank to prevent overflow.
Motor power: 0.75 kW
Power supply: 230 V
Dimensions:
Length: 1510 mm
Width: 640 mm
Height: 520 mm
Net weight: 80 kg
